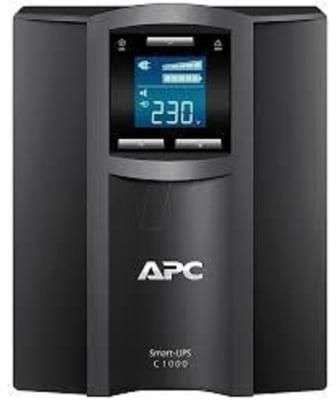

APC 1000VA Smart-UPS, Input 230V Output 230V Interface Port Smart Slot USB UPS, SMT1000IC
Original price was: KSh 90,050.KSh 70,000Current price is: KSh 70,000. ( Ex VAT )
- Interface Port(s): DB-9 RS-232, Smart Slot, USB
- Input Connections: IEC-320-C14
- Output Connections: (6) IEC 320 C13 (2) IEC Jumpers
- Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof.
- Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Infrastructure Central compatible: Enables centralized management via APC Infrastructure Central
APC Smart-UPS 700Watts 1000 VA Input 230V Output 230V Interface Port Smart Slot USB
APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions.
It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
SMT1000IC APC UPS Specifications
- Model: APC 100VA Smart-UPS (SMT1000IC)
- Capacity: 1000 VA / 700 Watts
- Input Voltage: 230V
- Output Voltage: 230V
- Interface Port: Smart Slot, USB
- Topology: Line-interactive
- Automatic Voltage Regulation (AVR): Yes
- Battery Type: Sealed Lead Acid
- Battery Runtime: Varies depending on load
- Surge Protection: Yes
- Outlet Types: 8 x IEC 320 C13
- Communication Ports: USB, SmartSlot
- Management Software: PowerChute Business Edition
- Audible Alarm: Yes
- LCD Display: Yes
- Dimensions: Varies depending on model
- Weight: Varies depending on model
APC 1KVA Detailed specifications
| SPECIFICATIONS | |
| Brand | APC |
| Model | SMT1000I |
| Output | |
| Output Power Capacity | 700 Watts / 1000 VA |
| Max Configurable Power | 700 Watts / 1000 VA |
| Nominal Output Voltage | 230V |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Output Connections | (8) IEC 320 C13 |
| (2) IEC Jumpers | |
| Input | |
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | IEC-320 C14 |
| Input voltage range for main operations | 160 – 286V |
| Input voltage adjustable range for mains operation | 151 – 302V |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 3 hour(s) |
| Replacement Battery | RBC6 |
| RBC Quantity | 1 |
| Communications & Management | |
| Interface Port(s) | Smart Slot, USB |
| Available Smart Slot Interface Quantity | 1 |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) | Optional |
| Surge Protection and Filtering | |
| Surge energy rating | 459 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 219.00 mm |
| Maximum Width | 171.00 mm |
| Maximum Depth | 439.00 mm |
| Net Weight | 18.86 KG |
| Shipping Weight | 22.77 KG |
| Shipping Height | 376.00 mm |
| Shipping Width | 328.00 mm |
| Shipping Depth | 595.00 mm |
| Colour | Black |
| Units per Pallet | 12 |
| Environmental | |
| Operating Environment | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95% |
| Operating Elevation | 0-3000 meters |
| Storage Temperature | -15 – 45 °C |
| Storage Relative Humidity | 0 – 95% |
| Storage Elevation | 0-15000 meters |
| Audible noise at 1 meter from surface of unit | 41.00 dBA |
| Online Thermal Dissipation | 100.00 BTU/hr |
| Warranty Information | |
| Warranty | Manufacturer’s Warranty |
Conclusions
The APC 100VA Smart-UPS (SMT1000IC) is a reliable and efficient uninterruptible power supply (UPS) designed to provide backup power and surge protection for connected devices. With a capacity of 1000 VA and 700 Watts, it offers ample power to keep your critical equipment running during power outages.
The UPS features an input voltage of 230V and an output voltage of 230V, ensuring compatibility with most standard electrical systems.
