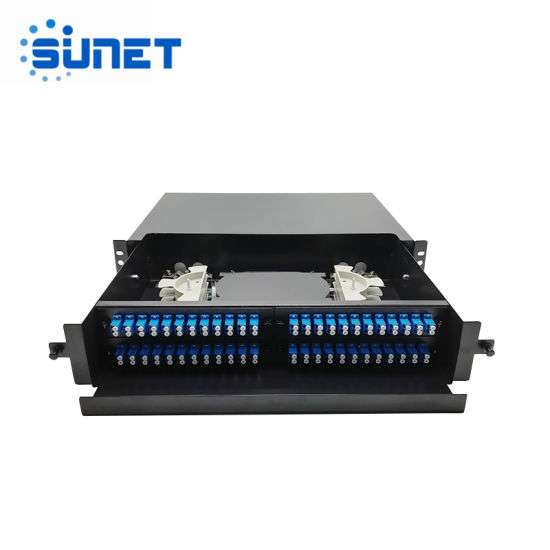

48 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF

The 48 Port 1U LC/UPC Duplex Single-Mode Adapter Rack Mount Optical Distribution Frame (ODF) is a high-capacity, space-efficient solution designed for managing and organizing fiber optic connections in telecommunications, data centers, and local area networks (LANs). This 1U high frame accommodates up to 48 LC (Lucent Connector) ports, providing a compact yet robust platform for dense fiber network installations.

Featuring LC connectors with UPC (Ultra Physical Contact) polish, this ODF ensures high-performance connectivity with minimal signal loss. It supports single-mode fiber connections, making it ideal for long-distance and high-speed data transmission at wavelengths of 1310 nm and 1550 nm. The adapter’s design ensures an insertion loss of typically ≤ 0.3 dB per adapter, with a maximum of ≤ 0.5 dB, and a return loss of ≥ 50 dB, maintaining signal integrity and reliability.

The ODF is constructed with durable metal or plastic housing and incorporates high-precision ceramic or plastic sleeves to align the fiber cores accurately. This design minimizes insertion force while providing a stable and secure connection. The front panel features clearly labeled ports, facilitating easy identification and management of fiber connections.

Designed for 19-inch racks or cabinets, the 1U form factor maximizes rack space efficiency while providing easy access for patching and routing. The unit operates effectively within a temperature range of -20°C to 70°C and can handle up to 95% relative humidity, making it suitable for a variety of environmental conditions.

Certified to meet industry standards such as TIA/EIA-568 and IEC, and compliant with RoHS and UL regulations, the 48 Port 1U LC/UPC Duplex Single-Mode Adapter Rack Mount ODF ensures safety, environmental compliance, and reliable performance. It is an excellent choice for high-density fiber management, providing a dependable solution for connecting and organizing single-mode fiber optic cables in a rack-mounted setup.
