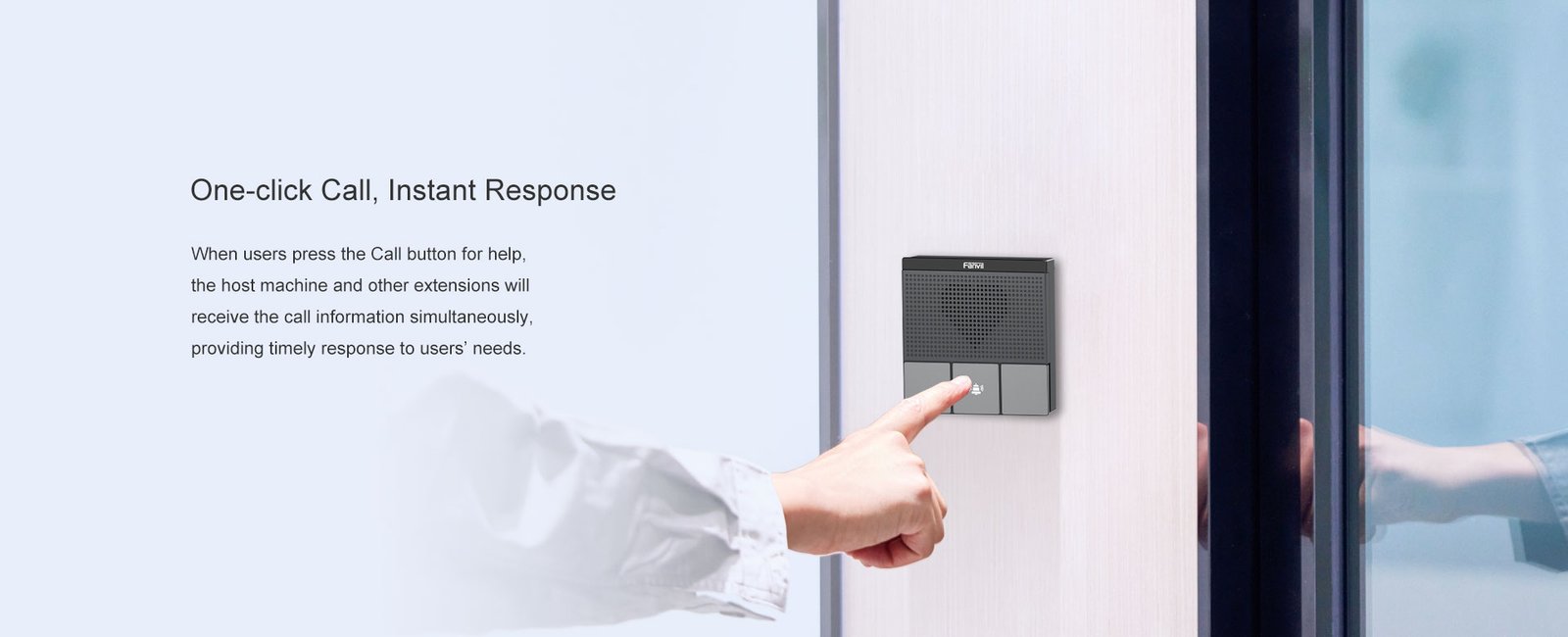

Fanvil A10W Mini Intercom:
The Fanvil A10W is a compact indoor SIP mini intercom designed for security, intercom, and broadcasting applications in residential and commercial indoor environments. It supports 2 SIP lines, 3 detachable function buttons, and built-in dual-band 2.4 GHz and 5 GHz Wi-Fi — eliminating the need for a wired network connection in locations where running an Ethernet cable is impractical. The A10W carries an IP54 rating for dust and water resistance, a 2W built-in speaker, and a single short-circuit input and relay output for integration with access control or alarm hardware.
Documentation:
Fanvil A10W Is Best For:
- Indoor access control and door entry deployments — The built-in relay (DC 30V/1A) drives electric locks or door strikes directly, while the short-circuit input receives signals from keypads or sensors. Wi-Fi connectivity removes dependency on wired infrastructure near door frames or entry points.
- Retrofit and refurbishment projects — Dual-band Wi-Fi means the A10W can be installed in finished interiors without cutting conduit or running new Ethernet cable. The compact 87.56 × 87.56 mm footprint fits cleanly on a standard wall surface.
- Small offices and meeting rooms — The 3 programmable DSS buttons cover common functions — intercom call, speed dial, and door release — without a screen or complex configuration. PoE or DC 12V/1A power supply options suit different installation contexts.
- Hospitality and serviced apartment environments — IP54 dust and splash protection and the gunmetal ABS housing suit corridors, lobbies, and communal areas where light moisture exposure or dust accumulation is possible. Auto-answer supports unattended entry workflows.
- IT-managed SIP deployments — TR-069, VLAN, 802.1X EAP wireless authentication, and AES-capable provisioning address enterprise network security requirements. The low power draw (1.99–3.05 W PoE) minimises switch port budget impact across multi-device installations.
Fanvil A10W Technical Specifications
Audio
| Parameter | Value |
|---|---|
| Speaker output | 2 W |
| Narrowband codecs | G.711a/u, G.729AB, G.723.1, G.726, iLBC |
| Wideband codecs | G.722, Opus |
| Duplex | Full-duplex with AEC |
| Voice processing | VAD, CNG, BNE, PLC, Dynamic Adaptive Jitter Buffer |
| DTMF | In-band, out-of-band (RFC2833 / SIP INFO) |
Connectivity
| Parameter | Value |
|---|---|
| Network port | RJ45 × 1, 10/100 Mbps |
| PoE | Yes (DC 12V/1A alternative) |
| Wi-Fi bands | 2.4 GHz 802.11 b/g/n / 5 GHz 802.11 a/n |
| Wi-Fi encryption | WPA / WPA2-PSK / 802.1X EAP |
| IP mode | IPv4 / IPv6 / IPv4+IPv6 |
| IP assignment | Static / DHCP / PPPoE |
| VPN | L2TP, OpenVPN |
| VLAN / LLDP / QoS | Yes |
| SIP lines | 2 |
Hardware Interfaces
| Interface | Detail |
|---|---|
| DSS buttons | × 3 (detachable, programmable) |
| Short-circuit input | × 1 |
| Relay output | × 1 (NC/NO, DC 30V/1A, AC 125V/0.5A) |
| Status indicator | Dual-colour LED |
Protocols
| Protocol |
|---|
| SIP 2.0 (UDP / TCP / TLS) |
| RTP / RTCP / SRTP |
| STUN |
| DHCP |
| IPv6 |
| PPPoE |
| LLDP |
| L2TP / OpenVPN |
| SNTP |
| FTP / TFTP |
| HTTP / HTTPS |
| TR-069 |
Deployment and Management
| Feature | Detail |
|---|---|
| Auto-provisioning | FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIP PnP / TR-069 |
| Web management | Yes |
| Packet capture | Web-based |
| Config export/import | Yes |
| Firmware upgrade | Yes |
| Syslog | Yes |
Power
| Parameter | A10W |
|---|---|
| Power input | DC 12V / 1A or PoE |
| Power consumption — adapter | 1.42 – 2.35 W |
| Power consumption — PoE | 1.99 – 3.05 W |
Physical Specifications
| Parameter | Value |
|---|---|
| Housing material | ABS |
| Colour | Gunmetal |
| Protection rating | IP54 |
| Installation | Wall-mounted (indoor) |
| Dimensions (wall-mounted) | 87.56 × 87.56 × 30 mm |
| Working temperature | −10 °C to +50 °C |
| Storage temperature | −20 °C to +50 °C |
| Working humidity | 10% – 90% RH |
Packaging
| Parameter | Value |
|---|---|
| Packing dimensions | 95 × 106 × 40 mm |
| Carton dimensions | 224 × 220 × 210 mm |
| Qty per carton | 20 PCS |
| Net weight per carton | 3.41 kg |
| Gross weight per carton | 3.60 kg |
Conclusion
The Fanvil A10W delivers SIP intercom, access control integration, and HD audio in a compact indoor unit. Its dual-band Wi-Fi removes the wiring constraints that typically complicate intercom retrofits, while the built-in relay and short-circuit input provide direct connectivity to door hardware without additional modules. IP54 protection, a low PoE power draw, and support for enterprise wireless security standards make the A10W a practical choice for both new installations and retrofit projects across office, hospitality, and residential environments.
