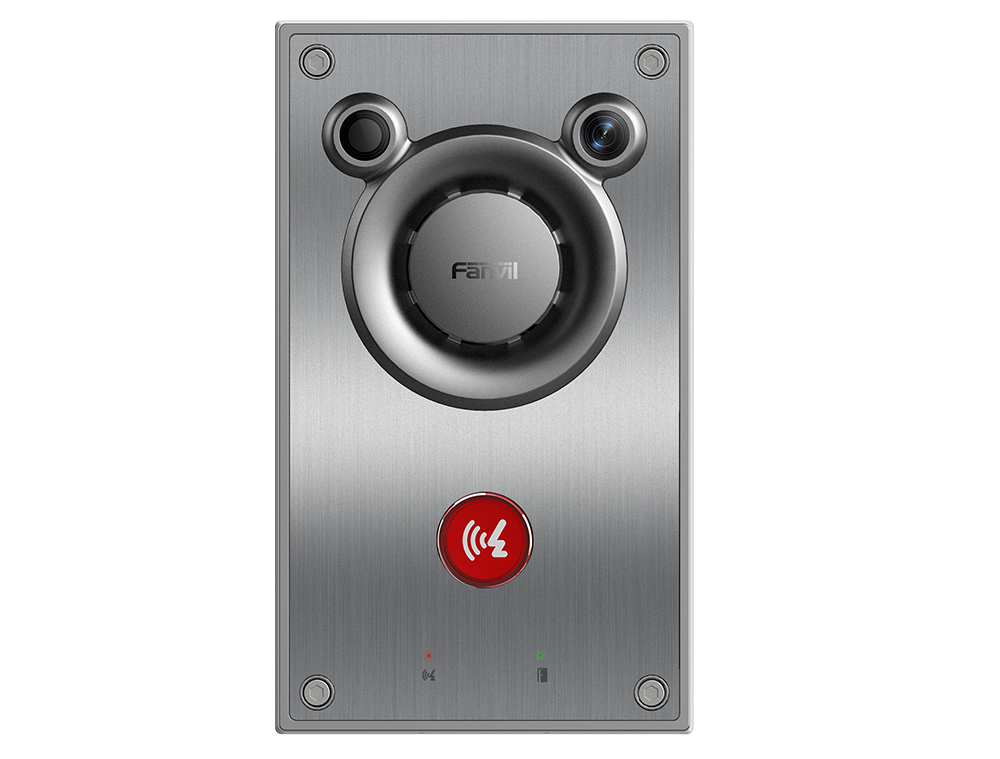

Fanvil A12V Video Intercom
The Fanvil A12V is a commercial-grade IP video intercom terminal for outdoor and high-security installations. It combines a 4MP starlight camera, a 10 W speaker, dual-microphone noise reduction, and a wide range of interface ports in a single unit. The A12V is built around a stainless-steel panel and aluminium alloy shell, giving it both IP66 weatherproofing and IK10 impact resistance. Because it supports standard SIP protocol, it integrates with most IP PBX and UC platforms, including Asterisk, 3CX, BroadSoft, Metaswitch, Elastix, and Avaya.
Download Fanvil A12V video intercom datasheet
Application Areas:
- Commercial building and office entry points — IK10 impact resistance and IP66 weatherproofing suit high-traffic outdoor entrances. The 4MP 1080p camera with 122° diagonal FOV and infrared lighting covers wide approach areas in all lighting conditions.
- Access control integrators — The Wiegand port connects to card readers, and two relay outputs control electric locks or gates. Combined with two SIP lines and HTTP API, the A12V fits into both standalone and server-managed access control architectures.
- Security-conscious deployments requiring audit trails — The SD card slot supports local video and audio recording. The tamper alarm switch and wet node output for an external alarm light add physical security layers beyond standard intercom units.
- Unified communications environments with existing SIP infrastructure — SIP v1/v2 over TLS and TR-069 provisioning integrate the A12V into Asterisk, 3CX, BroadSoft, and similar platforms. SIP-to-multicast forwarding extends intercom calls to networked A212 or A233 speakers already in the system.
- Harsh outdoor environments — A working temperature range of -40 °C to 70 °C and IK10/IP66 dual protection exceed the ratings of most comparable intercom units. This suits industrial perimeters, transport hubs, and exposed building facades.
Fanvil A12V Video Intercom Full Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.9-inch colour CMOS |
| Resolution | 4 Megapixel |
| Video codec | H.264 |
| Streaming resolution | 720p / 1080p |
| Minimum illumination | 0.05 Lux |
| Infrared lighting | Built-in |
| HDR | Yes |
| Diagonal FOV | 122° |
| Horizontal FOV | 103° |
| Vertical FOV | 54.8° |
Audio Specifications
| Parameter | Value |
|---|---|
| Speaker power | 10 W |
| Hands-free call output | 90 dB |
| Broadcast output | 100 dB |
| Microphone pickup range | Up to 5 m |
| Audio processing | AEC, ANR, AGC, AVC |
| Narrowband codecs | G.711a/u, G.729, iLBC, G.723, G.726 |
| Wideband codecs | G.722, Opus |
| DTMF | In-band, RFC2833, SIP INFO |
SIP and Call Features
| Parameter | Value |
|---|---|
| SIP lines | 2 |
| SIP version | SIP v1 (RFC2543), v2 (RFC3261) over UDP / TCP / TLS |
| DSS keys | 1 programmable |
| Auto-answer | Yes |
| Call functions | Call out / answer / reject, call waiting, speed dial, intercom, multicast, anonymous call |
| SIP to multicast forwarding | Yes |
Connectivity and I/O
| Parameter | Value |
|---|---|
| Network port | RJ45 × 1 — 10/100 Mbps, PoE+ (IEEE 802.3at, Class 4) |
| Power input | DC 12V–24V/2A (2-pin terminal socket) |
| Line-out port | × 1 (1,000 Ω, 2-pin terminal socket) |
| Short-circuit input | × 2 |
| Short-circuit output | × 2 (built-in relay, max DC 30V/2A or AC 125V/0.5A) |
| Active switching output | 12V/500mA DC (1 relay) |
| Tamper alarm switch | × 1 |
| Wet node output | × 1 (external alarm light) |
| Wiegand port | × 1 |
| RS-485 port | × 1 |
| USB port | × 1 |
| SD card slot | × 1 |
Network and Protocols
| Parameter | Value |
|---|---|
| Network mode | IPv4 / IPv6 / IPv4 & IPv6 |
| IP assignment | Static IP, DHCP, PPPoE |
| VPN | L2TP, OpenVPN |
| VLAN | Yes |
| Protocols | SIP, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
Deployment and Management
| Parameter | Value |
|---|---|
| Auto-provisioning | FTP, TFTP, HTTP, HTTPS, DHCP OPT66, SIP PnP, TR-069 |
| Management interfaces | Web portal, HTTP API, Action URL, Active URI |
| Volume adjustment | Front button or web interface |
| Firmware upgrade | Yes |
| Packet dump | Web-based |
| Config export/import | Yes |
| Syslog | Yes |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (with bracket) | 205 × 120 × 54.5 mm |
| Weight (unit) | 1.72 kg |
| Material | Stainless steel panel, aluminium alloy shell |
| Colour | — |
| Installation | Wall-mounted / flush-mounted |
| Protection rating | IP66 and IK10 (except camera lens) |
| Working temperature | -40 °C to 70 °C |
| Storage temperature | -40 °C to 70 °C |
| Working humidity | 10% – 95% RH |
| Gift box dimensions | 286 × 168 × 80 mm |
| Carton dimensions | 428 × 358 × 306 mm (10 sets) |
| Carton net weight | 17.2 kg |
| Carton gross weight | 17.98 kg |
