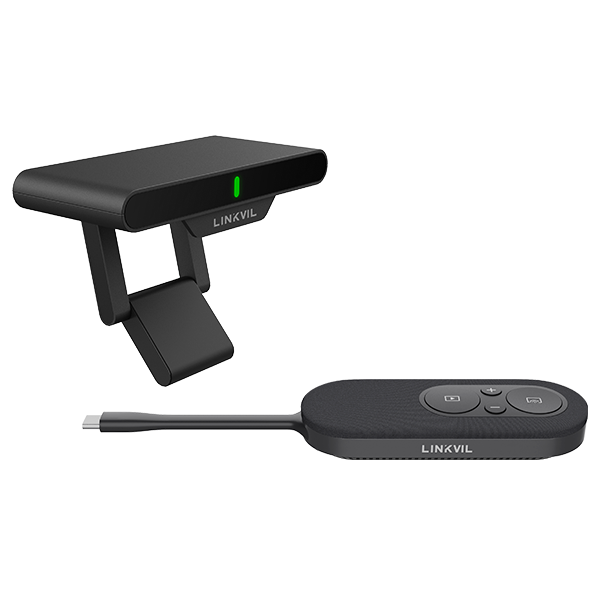

Fanvil CA200 Wireless Conference Kit
The Fanvil CA200 is a wireless screen-sharing kit for meeting rooms and huddle spaces. It is developed under Fanvil’s Linkvil A/V-IoT sub-brand and consists of two hardware components: the CP20 screen-sharing pod and the RC10 receiver hub. Together, they enable cable-free 4K screen sharing to any HDMI-enabled display. Because the CA200 is plug-and-play, no software installation or system integration is required. Users simply connect the CP20 pod to a laptop’s USB-C port and press a button to start casting.
Application Areas
- Corporate meeting rooms with HDMI displays — The RC10 connects to any HDMI display, so the CA200 works with existing room screens and projectors without replacement. Up to four simultaneous presenters reduce session transition time in multi-presenter meetings.
- Education and training environments — Freeze mode lets a trainer lock content on the display while privately navigating their own device. IFPD reverse control supports interactive delivery on touch-screen panels without a wired connection to the presenter’s laptop.
- IT teams managing multi-platform meeting rooms — Plug-and-play setup with no software installation reduces deployment and support overhead. WPA3-PSK encryption meets modern wireless security requirements. Wi-Fi 6 support future-proofs the installation as devices upgrade.
- Hybrid meeting setups with USB peripherals — The RC10’s USB-A 3.0 port provides wireless access to UVC cameras, microphones, and speakers connected to the hub. This reduces cable runs to the presenting device and supports a cleaner desk setup.
- Flexible and portable meeting deployments — At 62 g (CP20) and 85 g (RC10), the CA200 travels easily between rooms. The universal stand and compact form factor suit both permanent installation and temporary meeting space setups.
Fanvil CA200 Wireless Conference Kit Full Specifications
| Parameter | Value |
|---|---|
| Wi-Fi standard | Wi-Fi 5 / Wi-Fi 6 |
| Frequency band | 5 GHz |
| Encryption | WPA3-PSK |
| Transmission distance | Up to 10 m |
| Max transmitted power (EU) | 20 dBm (5 GHz) |
Screen Sharing Specifications
| Parameter | Value |
|---|---|
| Maximum resolution | 4K / 30 fps |
| Latency | Low latency |
| Desktop mode | Mirror and extended |
| Max simultaneous devices | 4 |
| Freeze mode | Yes (one-click) |
| IFPD reverse control | Yes |
| Volume sync | Yes (system volume) |
CP20 Screen-Sharing Pod
| Parameter | Value |
|---|---|
| Interface | USB-C (PD + DisplayPort Alt mode) |
| Operating voltage | 5 V |
| Power consumption | 2.5 W |
| Buttons | Screen-sharing, volume up, volume down, freeze screen |
| LED indicators | 1 × red, 1 × green |
| Dimensions | 189 × 40 × 18 mm |
| USB cable length | 85 mm |
| Weight | 62 g |
RC10 Receiver Hub
| Parameter | Value |
|---|---|
| HDMI output | × 1 |
| USB-A 3.0 port | × 1 |
| USB-C PD port | × 1 |
| Input power | 5V/2A (USB-C adapter) |
| Physical mounting | Magnetic attachment |
| Dimensions | 102 × 45 × 20 mm |
| Weight | 85 g |
Compatibility
| Parameter | Value |
|---|---|
| Operating systems | Windows, macOS |
| Device types | PCs, laptops, tablets, smartphones with full-featured USB-C |
| UC platform compatibility | Mainstream UC and video conferencing services |
| Ecosystem | Compatible with Fanvil CA400 suite |
Environmental Specifications
| Parameter | Value |
|---|---|
| Working temperature | -10 °C to +40 °C |
| Working humidity | 0% – 95% RH |
Physical and Packaging
| Parameter | Value |
|---|---|
| CP20 dimensions | 189 × 40 × 18 mm |
| RC10 dimensions | 102 × 45 × 20 mm |
| Gift box dimensions | 224 × 138 × 79.5 mm |
| Carton dimensions | 423 × 296 × 244 mm (10 pcs) |
| Carton net weight | 6.75 kg |
| Carton gross weight | 7.35 kg |
Package Contents
| Item | Qty |
|---|---|
| CP20 Screen-Sharing Pod | 1 |
| RC10 Receiver Hub | 1 |
| Pairing Adapter | 1 |
| HDMI Cable (1.5 m) | 1 |
| Power Adapter (USB-C, 5V/2A) | 1 |
| Quick Installation Guide | 1 |
