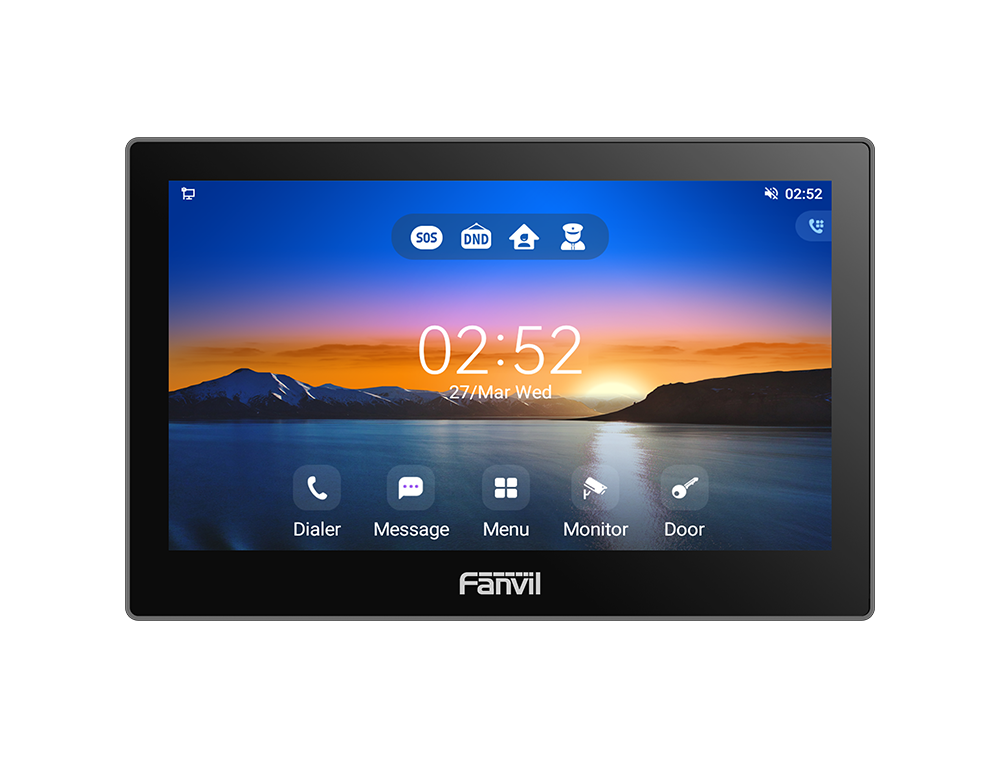

Fanvil i505W Android Indoor Station
The Fanvil i505W is a 7-inch Android 9.0 touch screen indoor station for residential and commercial intercom deployments. It suits residential communities, villas, hotels, and office buildings. Because it runs a full Android 9.0 operating system, it supports third-party app installation and secondary development — making it adaptable beyond a standard intercom terminal. The i505W is the Wi-Fi variant of the i505, adding dual-band 2.4 GHz and 5 GHz wireless connectivity. Both models share the same physical dimensions, interface set, and SIP feature set.
The i505W is closely related to the i504W, which is bundled in the Fanvil VIK-01 Video Intercom Kit already in this catalogue. The i505W adds Android 9.0 and third-party app support, making it more suited to deployments that require custom applications or deeper integration with building management systems.
Download the fanvil i505w datasheet
Best Used By:
- Residential communities and apartment buildings — 8 alarm inputs support comprehensive sensor integration across a residential unit. Remote door unlocking, IP camera monitoring, and DND scheduling cover the core needs of a multi-tenant building intercom system.
- Villa and single-family home deployments — The i505W suits villa panel deployments as a standalone indoor station or paired with a compatible door phone. Android 9.0 allows property-specific apps to run on the screen, such as smart home control or visitor management.
- Hotels and hospitality properties — Hotel panel type is listed in the spec sheet. Android 9.0 app support allows hotel-specific guest services applications to be deployed directly on the device, reducing the need for a separate tablet or panel.
- Office buildings and commercial premises — SIP 2.0 over TLS integrates the i505W into existing IP PBX infrastructure. RS-485 and alarm inputs connect to building management and access control systems. Second-party development allows custom workflows for reception or security desk applications.
- System integrators building custom intercom solutions — Android 9.0 with third-party app support and secondary development capability give integrators a programmable platform. Combined with SIP 2.0 protocol and HTTP API compatibility, the i505W fits into bespoke building management architectures.
Fanvil i505W Android Indoor Station Full Specs
Display and System
| Parameter | Value |
|---|---|
| Screen | 7-inch colour capacitive touch, 1024 × 600 |
| Operating system | Android 9.0 |
| Third-party app support | Yes |
| Secondary development | Yes |
| Body material | ABS |
| Panel type | Community, Hotel, Villa |
Audio Specifications
| Parameter | Value |
|---|---|
| Speaker | 2 W |
| Audio mode | Full-duplex hands-free with AEC |
| Narrowband codecs | G.711A/U, G.729AB, iLBC |
| Wideband codecs | G.722, Opus |
| DTMF | In-band, RFC2833, SIP INFO |
Video Specifications
| Parameter | Value |
|---|---|
| Video decoding | H.264, H.265 (optional) |
| Video call resolution | QVGA / CIF / VGA / 4CIF / 720p / 1080p |
| Third-party IP camera monitoring | Yes |
Intercom and Call Features
| Parameter | Value |
|---|---|
| SIP protocol | SIP 2.0 over UDP / TCP / TLS |
| Remote door unlocking | Yes |
| Do Not Disturb (DND) | Yes (user-defined schedule) |
| Custom ringtones | Yes |
| Message send / receive | Yes |
Interfaces
| Parameter | Value |
|---|---|
| Alarm inputs | × 8 |
| Short-circuit output | × 1 |
| Doorbell input | × 1 |
| RS-485 | × 1 (reserved) |
Network and Power
| Parameter | Value |
|---|---|
| Network | 10/100 Mbps adaptive |
| Wi-Fi | 2.4 GHz / 5 GHz (i505W only) |
| Power supply | DC 12V/1A or PoE 802.3af |
| Power consumption — PoE | 2.83 – 7.64 W |
| Power consumption — adapter | 2.46 – 6.51 W |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 177.38 × 113.99 × 22.5 mm |
| Installation | Wall-mounted |
| Working temperature | -10 °C to 50 °C |
| Storage temperature | -40 °C to 80 °C |
| Working humidity | 10% – 90% RH |
