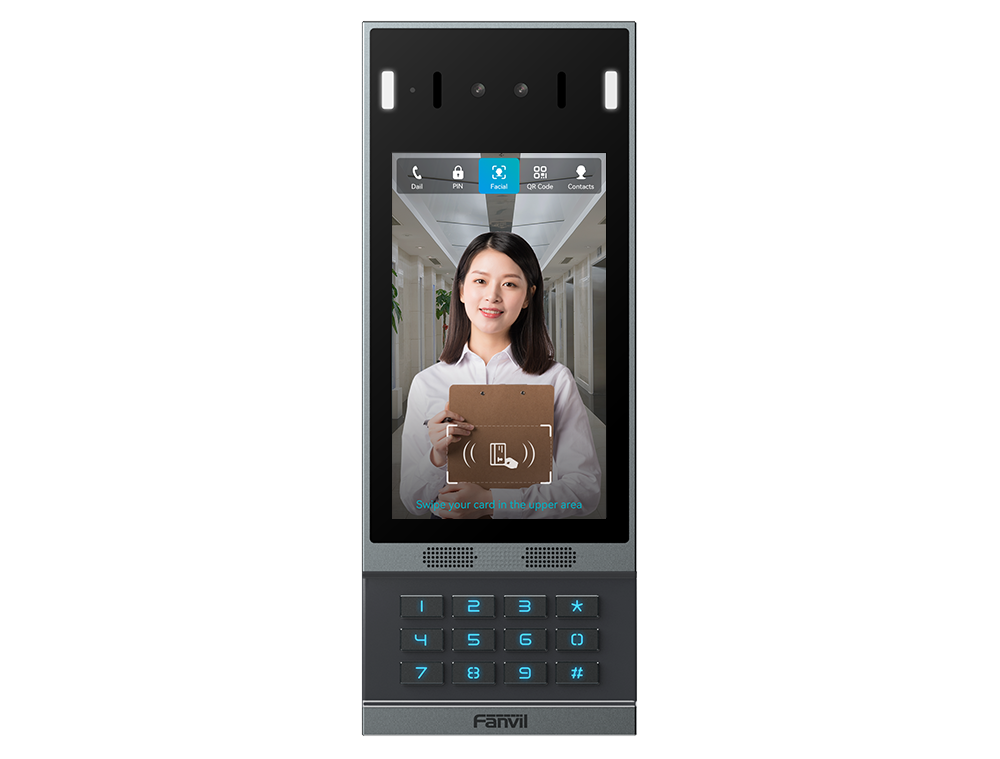

Fanvil i67 Face Recognition Door Phone
The Fanvil i67 face recognition door phone is a commercial-grade IP door phone with built-in face recognition technology. It is designed for multi-apartment communities, office buildings, and hotels where high-security access control is required. The i67 combines a 7-inch IPS touch screen, dual 2MP cameras, and multiple door-opening methods — including face recognition, IC/ID card, PIN code, QR code, DTMF, and remote unlocking — in a single aluminium alloy enclosure. Because it supports standard SIP 2.0 and ONVIF Profile S, it integrates with existing IP PBX systems, indoor stations, and third-party NVR platforms without proprietary middleware.
Best For:
- Multi-apartment and gated community access points — Face recognition with anti-spoofing liveness detection and 10,000 face template storage suit high-occupancy residential deployments. Remote door opening via mobile app allows residents to grant visitor access from anywhere.
- Office buildings with biometric access control requirements — Six door-opening methods give IT and facilities teams flexibility in assigning access credentials by role. Wiegand 26/34 bit and RS-485 interfaces integrate the i67 with existing access control infrastructure.
- Hotels and hospitality entrances — The i67 panel type includes Hotel. QR code and PIN code access suits temporary guest credentials without issuing physical cards. The 7-inch IPS touch screen provides a clear, professional guest-facing interface.
- Security integrators replacing legacy door phones with biometric systems — ONVIF Profile S and Open API allow the i67 to connect to existing NVR platforms and building management systems. SIP 2.0 over TLS integrates with existing IP PBX and UC infrastructure.
- Deployments requiring tamper detection — The gravity-sensing tamper alarm detects physical interference with the unit — tilting, rotation, or attempted removal — without a separate contact switch. This suits high-value or unsupervised entrance points where physical security of the device itself matters.
Fanvil i67 Face Recognition Door Phone Full Specs:
Camera and Video Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.8-inch |
| Cameras | 2 × 2MP (automatic lighting) |
| Output codec | H.264 (Baseline, Main Profile) |
| Horizontal FOV | 62° |
| Vertical FOV | 37.4° |
| Minimum illumination | 0.1 Lux |
| Fill lighting | Infrared and white light (automatic) |
| ONVIF | Profile S |
Face Recognition
| Parameter | Value |
|---|---|
| Face storage | 10,000 templates |
| Anti-spoofing | Liveness detection (image, video, mask) |
Access Control
| Parameter | Value |
|---|---|
| Door opening methods | Face recognition, IC/ID card, PIN code, QR code, DTMF code, remote unlock |
| Card standards (13.56 MHz) | Mifare Classic 1K/4K, Mifare DESFire, Mifare Ultralight, Mifare Plus |
| Card standards (125 kHz) | Yes |
| Card storage | 10,000 entries |
| Wiegand | Input / Output, 26-bit and 34-bit |
| Short-circuit | Input / Output |
| RS-485 | × 1 (reserved) |
| Built-in relay | Yes |
Display and Interface
| Parameter | Value |
|---|---|
| Screen | 7-inch IPS touch, 600 × 1024 |
| Numeric keypad | 12 keys |
| Talking mode | Full-duplex HD audio |
| Smart noise reduction | Yes (Fanvil algorithm) |
SIP and Communication
| Parameter | Value |
|---|---|
| SIP protocol | SIP 2.0 over UDP / TCP / TLS |
| Open API | Yes |
| Motion detection | Yes |
| Tamper alarm | Yes (gravity sensing) |
Physical Specifications
| Parameter | Value |
|---|---|
| Panel dimensions | 300 × 115.6 × 33.2 mm |
| Body material | Aluminium alloy |
| Colour | Gunmetal |
| Protection rating | IP66 / IK07 |
| Installation | Wall-mounted; flush-mounted (EX103 accessory required) |
| Panel type | Multi-apartment, Community, Hotel |
Power and Environment
| Parameter | Value |
|---|---|
| Power supply | DC 12V/2A or PoE+ (IEEE 802.3at, Class 4) |
| Power consumption — PoE+ | 7.9 – 23.1 W |
| Power consumption — adapter | 6.8 – 21.5 W |
| Working temperature | -20 °C to +60 °C |
| Storage temperature | -20 °C to +70 °C |
