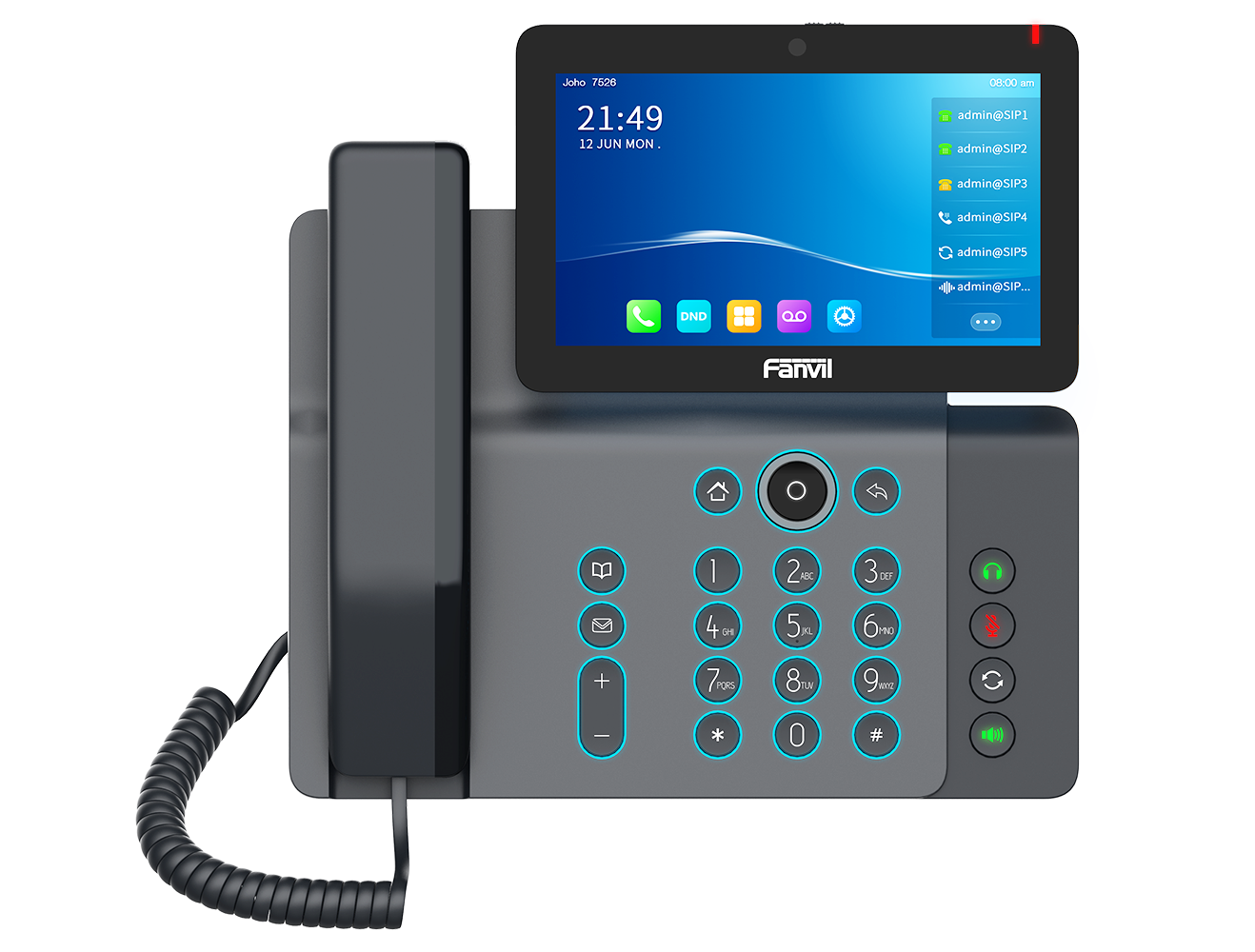

Fanvil V67 Flagship Smart Video Phone
The Fanvil V67 is a flagship Android 9.0 video phone for executives and managers who need a full-featured communication terminal at their desk. It combines a 7-inch adjustable IPS touch screen, a 5MP 1080p built-in camera, 20 SIP lines, dual Gigabit ports, built-in dual-band Wi-Fi, and Bluetooth 4.2 in a single unit. The V67 supports 10-way audio conferencing and 3-way video conferencing, making it suitable for senior management desks where both call capacity and video communication are daily requirements. The antibacterial handset and keypad surface inhibit more than 99.5% of bacteria growth — a specification relevant to shared desk and executive suite deployments in healthcare and hospitality environments.
Because the V67 runs Android 9.0, it supports third-party app installation and secondary API development. This makes it more than a SIP phone — it functions as a programmable desk terminal for UC platforms, CRM integrations, and custom enterprise applications.
Download the Fanvil V67 datasheet
Best Users Of The Fanvil V67
- Executives and senior managers — 20 SIP lines, 116 DSS keys, 10-way audio conference, and 3-way video conference cover the full communication requirements of a busy senior desk. The adjustable 7-inch touch screen and antibacterial surfaces suit premium office environments.
- Enterprise users requiring video calling at the desk — The built-in 5MP 1080p camera with mechanical privacy shutter and 82° FOV handles video calls without an external webcam or conference camera. 3-way video conference suits team calls directly from the desk.
- Android-based enterprise deployments needing custom applications — Android 9.0 with third-party app support and secondary API development suits UC platform integrations, CRM-connected desk phones, and custom enterprise workflows. uaCSTA enables CTI integration with compatible platforms.
- IT managers with complex call routing environments — 20 SIP lines, primary and backup SIP server support, DNS-SRV failover, and SRTP/TLS encryption meet demanding enterprise telephony requirements. TR-069 and auto-provisioning via multiple protocols simplify large-scale deployment and ongoing management.
- Healthcare and hospitality environments with hygiene requirements — The antibacterial handset and keypad inhibit more than 99.5% of bacteria growth. The HAC-compliant handset meets accessibility requirements for hearing aid users. These two specifications together cover hygiene and accessibility compliance in a single device.
Fanvil V67 Full Technical Specifications
Display and System
| Parameter | Value |
|---|---|
| Screen | 7-inch IPS colour touch, 1024 × 600 |
| Screen tilt range | 0° to 40° |
| Operating system | Android 9.0 |
| Third-party app support | Yes |
| Secondary API development | Yes |
| Colour | Dark grey |
Camera and Video
| Parameter | Value |
|---|---|
| Camera resolution | 5MP (500W pixel) |
| Field of view | 82° |
| Privacy cover | Mechanical shutter |
| Video codec | H.264 |
| Video call resolution | QVGA / CIF / VGA / 4CIF / 720p / 1080p |
| Bandwidth | 64 kbps – 4 Mbps (selectable) |
| Frame rate | 5 – 30 fps (selectable) |
| Full-screen remote video | Yes |
| Image formats | JPEG, PNG, BMP |
| Video format | MP4 |
Audio Specifications
| Parameter | Value |
|---|---|
| ADC/DAC sampling | Wideband 16 kHz |
| Narrowband codecs | G.711a/u, G.729/A/B/AB, iLBC |
| Wideband codecs | G.722, Opus |
| HAC handset | Yes |
| AEC | Full-duplex |
| Audio processing | VAD, CNG, BNE, NR, AGC, PLC |
| Jitter buffer | Dynamic adaptive |
| DTMF | In-band, RFC2833, SIP INFO |
| Voice quality monitoring | VQM, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
SIP and Call Features
| Parameter | Value |
|---|---|
| SIP lines | 20 |
| SIP version | SIP v1 (RFC2543), v2 (RFC3261) over UDP / TCP / TLS |
| Audio conference | 10-way |
| Video conference | 3-way |
| DSS keys | Up to 116 (line / BLF / speed dial) |
| Local phonebook | 2,000 entries |
| Remote phonebook | XML / LDAP |
| Call logs | 1,000 records |
| Key call features | Hold/resume, transfer, forward, DND, auto-answer, call parking, callback, hot desking, hot line, emergency call, multicast |
Wireless and Headset
| Parameter | Value |
|---|---|
| Wi-Fi | Dual-band: 2.4 GHz (802.11 b/g/n), 5 GHz (802.11 a/n/ac) |
| Wi-Fi security | WPA, WPA2-PSK, 802.1x EAP |
| Bluetooth | BLE 4.2 (headset and mobile device pairing) |
| EHS headset support | Poly (via APD-80), Jabra (via Fanvil EHS20) |
Network and Protocols
| Parameter | Value |
|---|---|
| Ethernet | Dual port, 10/100/1000 Mbps (Network + PC bridged) |
| IP mode | IPv4 / IPv6 / IPv4 & IPv6 |
| IP assignment | Static IP, DHCP |
| VPN | L2TP, PPTP, IPSec, OpenVPN (via third-party app) |
| Network security | 802.1x, VLAN, LLDP, QoS, HTTPS mutual auth, AES128/256, DNS-SRV |
| PoE | IEEE 802.3af, 802.3az |
| Protocols | SIP, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, 802.1x, 802.1p/Q, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
Deployment and Management
| Parameter | Value |
|---|---|
| Auto-provisioning | FTP, TFTP, HTTP, HTTPS, DHCP OPT66, SIP PnP, TR-069 |
| Management | Web portal, FDMS cloud management, config export/import, phonebook import/export, firmware upgrade, syslog, screenshot, packet dump, network firewall, online upgrade |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 245.4 × 252.5 × 63 mm |
| Handset ports | RJ9 × 2 (handset + headset) |
| Network ports | RJ45 × 2 (Network + PC bridged) |
| USB port | USB 2.0 × 1 (flash drive and USB headset) |
| Security lock port | × 1 |
| Status indicator | × 1 red LED |
| Power | DC 12V/1.5A or PoE (IEEE 802.3af) |
| Power consumption — PoE | 2.23 – 7.3 W |
| Power consumption — adapter | 1.6 – 6.36 W |
| Installation | Desktop stand; wall-mounted (optional) |
| Working temperature | 0 °C to 45 °C |
| Working humidity | 10% – 95% RH |
| Gift box dimensions | 357 × 258 × 71 mm |
| Carton dimensions | 534 × 380 × 377 mm (10 pcs) |
| Carton net weight | 17.05 kg |
| Carton gross weight | 18.22 kg |
Package Contents
| Item | Qty |
|---|---|
| V67 Smart Video Phone | 1 |
| HD HAC Handset (RJ9) | 1 |
| Standard RJ9 Handset Cord | 1 |
| 1.5 m CAT5e Ethernet Cable | 1 |
| Desktop Stand | 1 |
