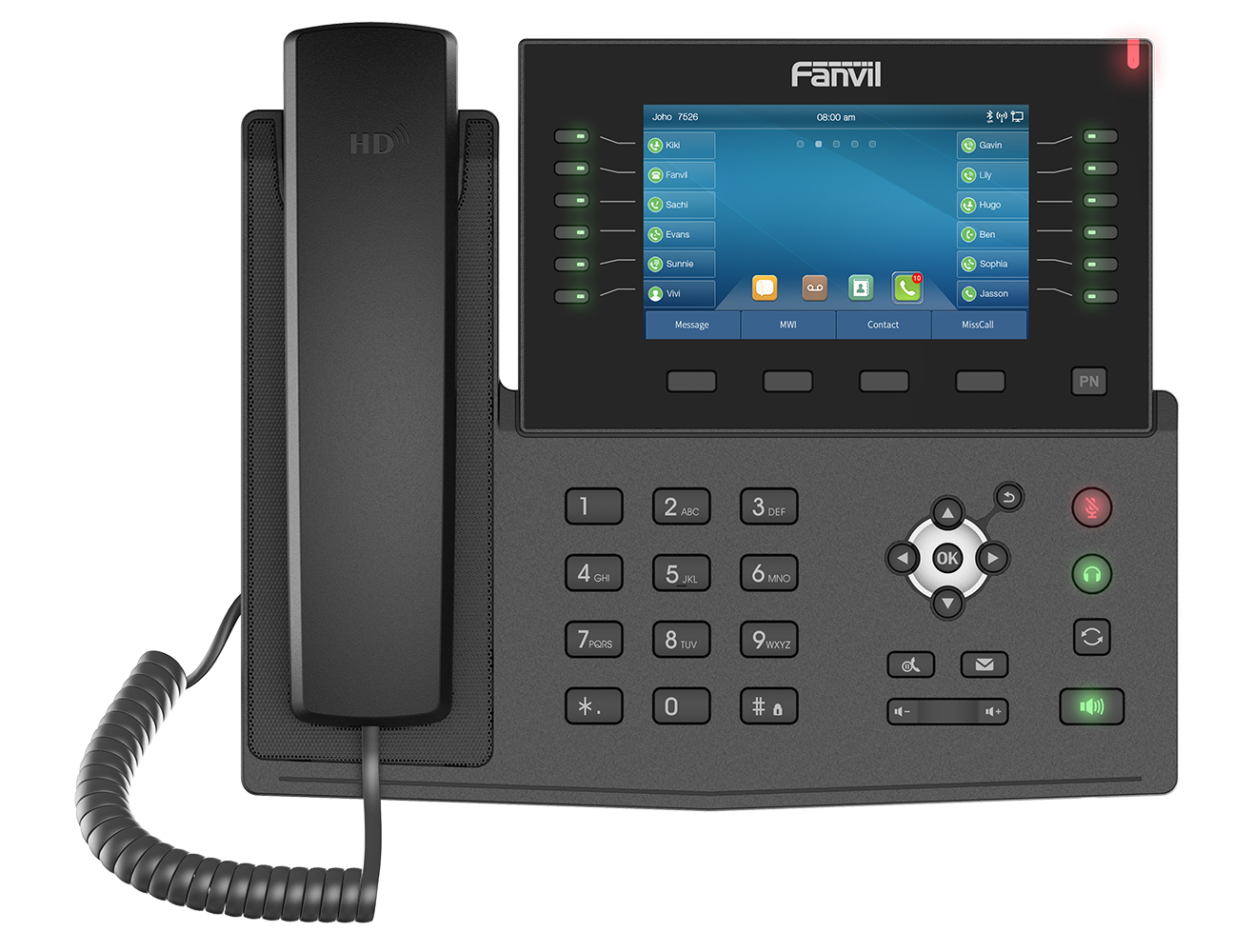

Fanvil X7C Enterprise IP Phone:
The Fanvil X7C is a high-end enterprise IP phone for business users who need immediate access to multiple lines, contacts, and call functions from a single desk device. It features a 5-inch colour display, 20 SIP lines, 12 physical DSS keys expandable to 60 total entries, dual Gigabit ports with PoE, built-in Bluetooth 4.2, and Wi-Fi via USB dongle.
Download fanvil x7c datasheet
Fanvil X7C Enterprise IP Phone Ideal Users
- Enterprise users managing multiple SIP lines from a single desk — 20 SIP lines, 60 DSS key entries, and tri-colour BLF LEDs on the 12 physical DSS keys give the X7C V2 the line density and visual status monitoring needed for a busy executive or reception desk.
- Users needing video call capability without committing to a built-in camera — The X7C V2 receives video calls natively and accepts the optional CM60 USB camera for outgoing video. This suits users who join video calls occasionally and prefer not to pay for a built-in camera that may not be used daily.
- IT teams deploying large enterprise SIP fleets — Dual Gigabit ports with PoE, TR-069 auto-provisioning, AES128/256 encryption, and 802.1x access control meet enterprise network requirements. The bridged PC port reduces switch port consumption at each desk.
- CRM and UC platform users — uaCSTA integration connects the X7C V2 to compatible CRM and UC platforms for click-to-dial, screen pop, and call control. Bluetooth 4.2 and EHS wireless headset support cover users who prefer cordless audio for long call sessions.
- Deployments where the V67 feature set exceeds requirements — The X7C V2 delivers 20 SIP lines, HD audio, video call reception, and dual Gigabit ports without the Android OS, built-in camera, and 10-way conference overhead of the V67. It is the right choice when a capable enterprise phone is needed at a lower cost point than the flagship model.
Display
| Parameter | Value |
|---|
| Screen | 5-inch colour LCD, 800 × 480 |
| Stand angles | 40° and 50° (adjustable) |
| Soft keys | 4 |
Audio Specifications
| Parameter | Value |
|---|
| Handset/speakerphone frequency response | 0 – 7 kHz |
| ADC/DAC sampling | Wideband 16 kHz |
| Narrowband codecs | G.711a/u, G.723.1, G.726-16/24/32/40K, G.729AB, iLBC |
| Wideband codecs | G.722, Opus |
| HAC handset | Yes |
| AEC | Full-duplex |
| Audio processing | VAD, CNG, BNE, NR, AGC, PLC |
| Jitter buffer | Dynamic adaptive, up to 300 ms |
| DTMF | In-band, RFC2833, SIP INFO |
| Voice quality monitoring | VQM, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
Video Specifications
| Parameter | Value |
|---|
| Video codec | H.264 |
| Video call resolution | QCIF / CIF / VGA / 1080p |
| USB camera support | Optional CM60 |
SIP and Call Features
| Parameter | Value |
|---|
| SIP lines | 20 |
| SIP version | SIP 2.0 over UDP / TCP / TLS |
| Audio conference | 6-way |
| DSS keys | 12 physical (tri-colour LED), up to 60 entries via page switch |
| Local phonebook | 2,000 entries |
| Remote phonebook | XML / LDAP, 2,000 entries |
| Call logs | 1,000 records |
| Key call features | Hold/resume, transfer, forward, DND, auto-answer, call parking, hot desking, hot line, intercom, multicast |
Keypad
| Parameter | Value |
|---|
| Total keys | 43 |
| DSS keys | 12 (tri-colour LED) + page-switch key |
| Soft keys | 4 |
| Function keys | 5 (Hold, MWI, Mute, Headset, Redial) |
| Navigation keys | 4 + OK + Return |
| Digit keys | 12 |
| Volume keys | 2 |
| Hands-free key | × 1 |
Wireless and Headset
| Parameter | Value |
|---|
| Bluetooth | BLE 4.2 (headset pairing) |
| Wi-Fi | Via USB dongle (WPA, WPA2-PSK, 802.1x EAP) |
| EHS headset support | Plantronics (APD-80), Jabra (Fanvil EHS20) |
Network and Protocols
| Parameter | Value |
|---|
| Ethernet | Dual port, 10/100/1000 Mbps (Network + PC bridged) |
| IP mode | IPv4 / IPv6 / IPv4 & IPv6 |
| IP assignment | Static IP, DHCP, PPPoE |
| Network security | 802.1x, L2TP, OpenVPN, VLAN, LLDP, QoS, AES128/256 |
| PoE | Yes (integrated) |
| Protocols | SIP, RTP/RTCP/SRTP, STUN, DHCP, IPv6, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
Deployment and Management
| Parameter | Value |
|---|
| Auto-provisioning | FTP, TFTP, HTTP, HTTPS, DHCP OPT66, SIP PnP, TR-069 |
| Management | Web portal, config export/import, phonebook import/export, firmware upgrade, syslog, packet dump |
Physical Specifications
| Parameter | Value |
|---|
| Dimensions (angle 1 — 40°) | 268 × 185 × 189 mm |
| Dimensions (angle 2 — 50°) | 268 × 201 × 168 mm |
| Colour | Black |
| Installation | Desktop stand |
| Handset port | RJ9 × 1 |
| Headset port | RJ9 × 1 |
| Network ports | RJ45 × 2 (Network + PC bridged) |
| USB port | USB 2.0 × 1 (Wi-Fi dongle / flash drive / CM60 camera) |
| Power | DC 5V/2A or PoE |
| Power consumption — PoE | 2.6 – 9.0 W |
| Power consumption — adapter | 2.4 – 8.0 W |
| Working temperature | 0 °C to 45 °C |
| Working humidity | 10% – 95% RH |
| Gift box dimensions | 304 × 297 × 66 mm |
| Carton dimensions | 616 × 358 × 329 mm (10 pcs) |
| Carton net weight | 16.6 kg |
| Carton gross weight | 17.72 kg |
Package Contents
| Item | Qty |
|---|
| X7C V2 Enterprise IP Phone | 1 |
| HD HAC Handset (RJ9) | 1 |
| Standard RJ9 Handset Cord | 1 |
| 1.5 m CAT5 Ethernet Cable | 1 |
| Desktop Stand (Back Rack) | 1 |
