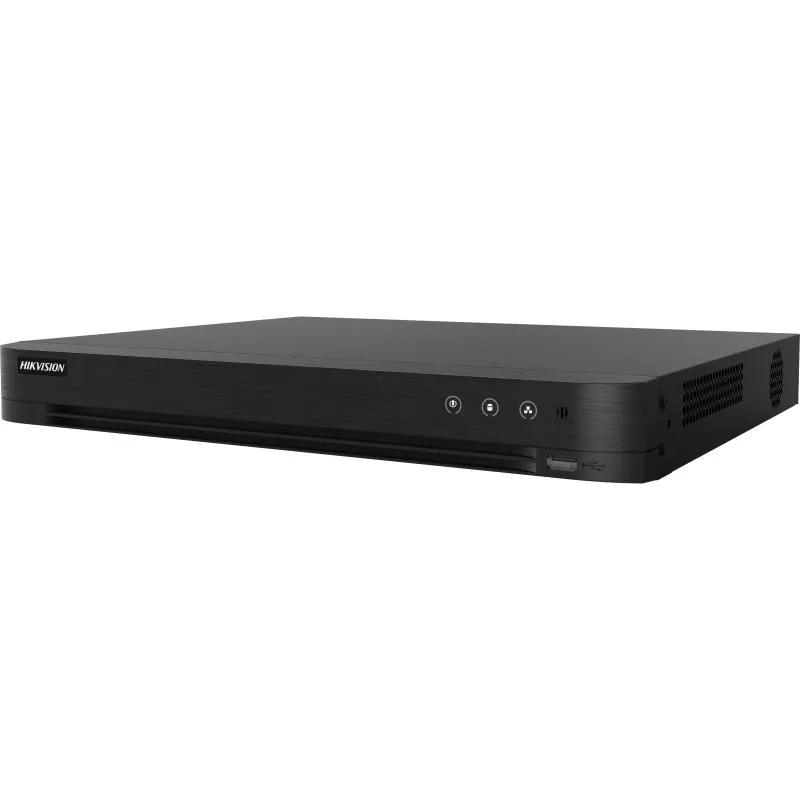

Hikvision DVR-104G-F1 4 Channel Digital Video Recorder

Video and Audio

• Video/Audio Input
  • Video Compression: H.264
  • Analog and HD-TVI Video Input: 4 channels
  • Supported Camera Types:
    • HD-TVI (Turbo HD) cameras: Up to 1080p
    • AHD cameras: Up to 720p
    • CVBS (analog) cameras
  • Audio Input: 1 channel, RCA interface
• Video/Audio Output
  • HDMI Output: 1 channel, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output: 1 channel, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Audio Output: 1 channel, RCA interface

Recording

• Recording Resolution
  • Supports up to 1080p/720p/VGA/WD1/4CIF/DCIF/2CIF/CIF/QCIF
  • Frame Rate:
    • 1080p @ 12 fps
    • 720p @ 25 fps
    • WD1 @ 25 fps
• Video Bitrate
  • 32 Kbps to 6 Mbps per channel

Playback and Storage

• Playback Resolution
  • Supports up to 1080p resolution
• Playback
  • 4-channel synchronous playback
  • Smart search for efficient playback
• Storage
  • 1 SATA interface
  • Max capacity: Up to 6 TB per HDD

Network and Protocols

• Network Interface
  • 1 RJ-45 10/100 Mbps Ethernet interface
• Protocols
  • IPv4, TCP/IP, UDP, DHCP, DNS, IP Filter, PPPoE, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™

Features

• Camera Management
  • Up to 2 IP camera inputs (up to 960p resolution)
  • Supports multiple camera types including HD-TVI, AHD, and CVBS
• Decoding Capability
  • Decodes up to 1 channel at 1080p or 2 channels at 720p
• Smart Features
  • Supports motion detection, video tampering, video loss alarm, and exception alarm

Physical and Environmental

• Power Supply
  • 12 VDC
• Power Consumption
  • ≤ 15 W (without HDD)
• Operating Conditions
  • Temperature: -10 °C to +55 °C (14 °F to 131 °F)
  • Humidity: 10% to 90% non-condensing
• Dimensions
  • 200 × 200 × 45 mm (7.87 × 7.87 × 1.77 inches)
• Weight
  • ≤ 1 kg (2.2 lb, without HDD)

Additional Features

• Backup
  • USB device, network backup supported
• USB Interface
  • 2 USB 2.0 ports (1 on the front panel and 1 on the rear panel)
• Remote Management
  • Web Client and Mobile App for remote management
