Fiber

General Specifications

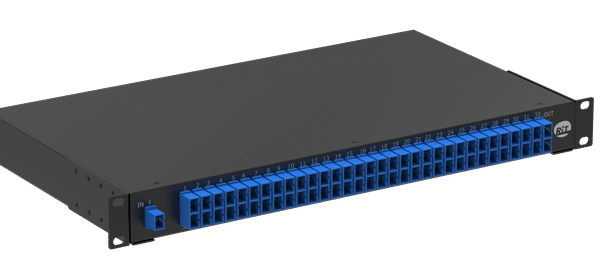

• Product Type: Rack Mount Optical Splitter
• Configuration: 1 x 32 (1 input fiber and 32 output fibers)
• Connector Type: SC/PC (Standard Connector/Physical Contact)
• Connector Polish: PC (Physical Contact)
• Fiber Jacket Type: PVC (Polyvinyl Chloride)
• Fiber Buffer Diameter: 0.9mm

Optical Performance

• Wavelength Range: 1260 nm - 1650 nm (suitable for both 1310 nm and 1550 nm windows)
• Insertion Loss:
  • Typical: ≤ 17.5 dB
  • Maximum: ≤ 18.0 dB
• Uniformity: ≤ 1.8 dB (ensures consistent signal distribution among outputs)
• Return Loss: ≥ 50 dB for PC connectors (minimizes back reflections)
• Directivity: ≥ 55 dB (reduces cross-talk between inputs and outputs)
• Polarization Dependent Loss (PDL): ≤ 0.2 dB (ensures consistent performance regardless of polarization)
• Splitting Ratio: Equal power distribution (1:32 split)

Fiber Specifications

• Fiber Type: Singlemode fiber
• Fiber Mode Compatibility: ITU-T G.657A or G.652D compliant
• Input/Output Fiber Diameter: 0.9mm buffered fiber
• Cable Jacket Material: PVC for protection and flexibility

Physical Dimensions

• Enclosure Type: 19-inch rack mountable
• Height: 1U (1.75 inches or 44.45 mm)
• Width: 19 inches (482.6 mm) standard rack width
• Depth: Typically around 10-12 inches (254-305 mm), varies by manufacturer

Environmental Specifications

• Operating Temperature: -40°C to +85°C (suitable for a wide range of environments)
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% (non-condensing, suitable for various environmental conditions)

Installation Features

• Mounting: Standard 19-inch rack mountable
• Accessibility: Front access for easy installation, operation, and maintenance
• Cable Management: Built-in cable management features for organized routing and protection
• Labeling: Clear port numbering and labeling for easy identification and troubleshooting

Compliance and Standards

• Industry Standards:
  • Telcordia GR-1209 and GR-1221 compliant for reliability and performance
  • IEC 61753-1 compliant for fiber optic interconnecting devices
  • RoHS compliant for environmental and safety regulations

Additional Features

• Design: Compact and efficient design for space utilization
• Security: Optional lockable front panels for added security in high-traffic areas
• Accessories: Supplied with necessary mounting brackets, screws, dust caps, and installation instructions
• Reliability: High stability and reliability in various network applications, including FTTH, PON, and CATV
• Durability: Engineered for long-term operation with low maintenance requirements

General Specifications

• Product Type: Rack Mount Optical Splitter
• Configuration: 1 x 64 (1 input fiber and 64 output fibers)
• Connector Type: SC/APC (Standard Connector/Angled Physical Contact)
• Connector Polish: APC (Angled Physical Contact) for reduced reflection
• Fiber Jacket Type: PVC (Polyvinyl Chloride)
• Fiber Buffer Diameter: 0.9mm

Optical Performance

• Wavelength Range: 1260 nm - 1650 nm (suitable for both 1310 nm and 1550 nm windows)
• Insertion Loss:
  • Typical: ≤ 21.5 dB
  • Maximum: ≤ 22.0 dB
• Uniformity: ≤ 2.0 dB (ensures consistent signal distribution among outputs)
• Return Loss: ≥ 60 dB for APC connectors (minimizes back reflections)
• Directivity: ≥ 55 dB (reduces cross-talk between inputs and outputs)
• Polarization Dependent Loss (PDL): ≤ 0.3 dB (ensures consistent performance regardless of polarization)
• Splitting Ratio: Equal power distribution (1:64 split)

Fiber Specifications

• Fiber Type: Singlemode fiber
• Fiber Mode Compatibility: ITU-T G.657A or G.652D compliant
• Input/Output Fiber Diameter: 0.9mm buffered fiber
• Cable Jacket Material: PVC for protection and flexibility

Physical Dimensions

• Enclosure Type: 19-inch rack mountable
• Height: 1U or 2U (depending on design and manufacturer)
• Width: 19 inches (482.6 mm) standard rack width
• Depth: Typically around 10-12 inches (254-305 mm), varies by manufacturer

Environmental Specifications

• Operating Temperature: -40°C to +85°C (suitable for a wide range of environments)
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% (non-condensing, suitable for various environmental conditions)

Installation Features

• Mounting: Standard 19-inch rack mountable
• Accessibility: Front access for easy installation, operation, and maintenance
• Cable Management: Built-in cable management features for organized routing and protection
• Labeling: Clear port numbering and labeling for easy identification and troubleshooting

Compliance and Standards

• Industry Standards:
  • Telcordia GR-1209 and GR-1221 compliant for reliability and performance
  • IEC 61753-1 compliant for fiber optic interconnecting devices
  • RoHS compliant for environmental and safety regulations

Additional Features

• Design: Compact and efficient design for space utilization
• Security: Optional lockable front panels for added security in high-traffic areas
• Accessories: Supplied with necessary mounting brackets, screws, dust caps, and installation instructions
• Reliability: High stability and reliability in various network applications, including FTTH, PON, and CATV
• Durability: Engineered for long-term operation with low maintenance requirements

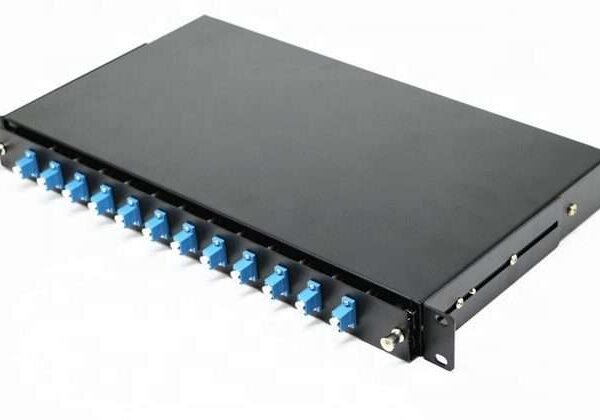

General Specifications

• Product Type: Fiber Optic Access Terminal Box (ATB)
• Core Capacity: 12 cores
• Adapter Type: LC/UPC Simplex
• Number of Adapters: 12
• Material:
  • Housing: Cold-rolled steel or ABS plastic
  • Coating: Powder-coated or UV-resistant finish
• Color: Typically telecom gray or black

Dimensions and Weight

• Height: Approximately 200 mm - 300 mm (varies by design)
• Width: Approximately 300 mm - 400 mm (varies by design)
• Depth: Approximately 100 mm - 150 mm (varies by design)
• Weight: Approximately 1 kg - 2 kg (depends on materials and design)

Optical Performance

• Insertion Loss:
  • Maximum: ≤ 0.2 dB (per connection)
• Return Loss:
  • UPC Polish: ≥ 50 dB
• Fiber Type: Singlemode (SM) or Multimode (MM)
• Wavelength Compatibility:
  • Singlemode: 1260 nm - 1650 nm
  • Multimode: 850 nm and 1300 nm

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% (non-condensing)

Mechanical Features

• Design:
  • Compact and durable with a front panel for adapter mounting
  • Integrated cable management features for organized fiber routing
• Cable Entry:
  • Rear or side cable entry ports with strain relief
  • Compatible with various cable types (e.g., loose tube, tight buffered)
• Splice Tray:
  • Capacity for up to 12 splices (if applicable)
  • Supports heat-shrink or mechanical splice protectors

Installation Features

• Mounting:
  • Wall-mountable or pole-mountable options
  • Includes mounting brackets or holes
• Access:
  • Front access door with secure latching mechanism
• Grounding:
  • Integrated grounding points or lugs

Compliance and Standards

• Industry Standards:
  • Complies with Telcordia GR-326 and GR-449
  • RoHS compliant
  • IEC 61754 compliant for fiber optic interconnects

Application Areas

• Telecommunications: Suitable for central offices and network access points
• Data Centers: Ideal for high-density fiber optic connections and patching
• FTTH: Used in Fiber to the Home installations for terminating and managing fiber connections
• Enterprise Networks: For structured cabling and interconnects

Additional Features

• Labeling:
  • Port labeling for easy identification
  • Areas for custom labels and documentation
• Security:
  • Key-locking mechanism for secure access
  • Tamper-resistant design features
• Ventilation:
  • Passive ventilation slots to prevent overheating (if applicable)
• Customization:
  • Available with various connector and adapter configurations
  • Custom colors and finishes upon request

• Type: Singlemode Fibre Optic Cable
• Core Count: 12 Fibers
• Cable Structure: Un-armoured
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Outer Diameter: Typically 3.0 mm
• Material: PVC or LSZH (Low Smoke Zero Halogen) sheath
• Transmission Wavelength: 1310 nm and 1550 nm
• Maximum Attenuation: ≤ 0.35 dB/km at 1310 nm, ≤ 0.20 dB/km at 1550 nm
• Bend Radius: Minimum bend radius of 10 x outer diameter during installation and 20 x outer diameter when in use
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +70°C
• Color Coding: Fibers typically color-coded according to standards (e.g., Yellow for singlemode)
• Refractive Index Profile: Step index or graded index as per specifications
• Jacket Color: Yellow for singlemode applications
• Fire Rating: Complies with relevant fire safety standards (e.g., OFNR, OFNP)

• Product Type: Underground Armoured Singlemode Fibre Optic Cable
• Core Count: 12 cores
• Fiber Type: Singlemode
• Cable Design: Armoured for enhanced protection against physical damage and environmental factors
• Outer Diameter: Typically ranges from 8-12 mm (exact dimensions may vary by manufacturer)
• Material: Low smoke zero halogen (LSZH) or PVC outer jacket
• Armouring Material: Steel or aluminum tape for robust mechanical protection
• Max Tensile Strength: Typically up to 1500 N (may vary by manufacturer)
• Bending Radius: Minimum bending radius usually 20 times the outer diameter
• Operating Temperature Range: -40°C to +70°C
• Wavelengths: Standard wavelengths for singlemode fibers (1310 nm, 1550 nm)
• Transmission Distance: Capable of long-distance transmission (up to 40 km or more depending on the network setup)
• Connector Type: Various connector options available (e.g., SC, LC, ST)
• Moisture Resistance: Designed to resist moisture ingress and provide reliable performance in underground installations
• Compliance: Meets international standards (e.g., IEC, TIA/EIA) for fiber optic cables

General Specifications

• Product Type: Optical Distribution Frame (ODF)
• Rack Units: 1U
• Number of Ports: 12
• Connector Type: SC Duplex
• Connector Finish: UPC (Ultra Physical Contact)
• Fiber Type: Multimode (MM)

Adapter Panel

• Panel Type: Rack Mount
• Material: Cold-rolled steel with powder-coated finish
• Color: Typically black or gray
• Front Panel Ports: 12 SC Duplex adapters
• Rear Cable Management: Integrated management for efficient fiber routing and protection

Optical Performance

• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 50 dB for UPC
• Repeatability: ≤ 0.1 dB
• Durability: > 1000 mating cycles

Compatibility

• Fiber Modes: OM1, OM2, OM3, OM4, and OM5 compatible
• Cable Types: 50/125 μm and 62.5/125 μm multimode fibers
• Polishing Type: UPC polished connectors

Physical Dimensions

• Height: 1.75 inches (44.45 mm)
• Width: 19 inches (482.6 mm) standard rack width
• Depth: Typically around 10-12 inches (254-305 mm)

Environmental Specifications

• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% (non-condensing)

Installation Features

• Mounting: Standard 19-inch rack mountable
• Accessibility: Front access for easy installation and maintenance
• Cable Management: Includes rear cable management tray or brackets
• Labeling: Port numbering and labeling for easy identification

Compliance and Standards

• Industry Standards: Complies with TIA/EIA, IEC, and RoHS standards
• Fire Rating: Complies with UL 94V-0 flammability rating

Additional Features

• Design: Compact and lightweight design for efficient space utilization
• Security: Optional lockable doors for added security
• Accessories: Includes mounting screws, cable ties, and dust caps
• Customizability: Available in various colors and finishes upon request

General Specifications

• Product Type: Optical Distribution Frame (ODF)
• Port Configuration: 12 Ports
• Adapter Type: SC (Subscriber Connector) with UPC (Ultra Physical Contact) polish
• Mode: Single-Mode (SM)
• Configuration: Duplex (dual channel per port)
• Rack Mount: 1U (one rack unit high)

Performance Specifications

• Insertion Loss:
  • Typically ≤ 0.3 dB per adapter
  • Maximum ≤ 0.5 dB per adapter
• Return Loss:
  • Typically ≥ 50 dB (for UPC polish)
• Operating Wavelength:
  • 1310 nm and 1550 nm (common for single-mode fibers)

Connector Specifications

• Connector Compatibility:
  • Designed for SC (Subscriber Connector) type fibers
• Adapter Material:
  • Durable metal or plastic housing
  • High-precision ceramic or plastic sleeves for alignment
• Sleeve Type:
  • Duplex sleeves for each port

Mechanical Specifications

• Durability:
  • Typically rated for ≥ 500 mating cycles per port
• Insertion Force:
  • Designed to provide reliable connections with minimal insertion force

Environmental Specifications

• Operating Temperature:
  • Typically -20°C to 70°C
• Storage Temperature:
  • Typically -40°C to 85°C
• Humidity:
  • 95% relative humidity, non-condensing

Rack Mounting

• Rack Mount Type:
  • 1U rack mountable
• Installation:
  • Designed to fit standard 19-inch racks or cabinets
• Front Panel:
  • Includes labeled ports for easy identification and management

Compliance and Certifications

• Standards Compliance:
  • Meets or exceeds standards such as TIA/EIA-568 and IEC
• Certifications:
  • RoHS compliant
  • UL Listed or similar safety certifications

Applications

• Network Environments:
  • Suitable for telecommunications, data centers, and local area networks (LAN)
• Usage:
  • Ideal for organizing and managing single-mode fiber connections in a rack-mounted setup
  • Facilitates easy patching and routing of fiber optic cables within the ODF
