1.0mm twin with earth electrical cable

Name: 1.0mm twin with earth electrical cable
Brand: powermax
SKU: 8353
Price: 4800 KES
Availability: InStock

in Electric Fencing

Sku: 8353

Write a Review

Chat On Whatsapp

KSh 4,800 Save:KSh 200(4%) ( Ex VAT )

Features

Twin and earth mains cable for use indoors only
Applications include mains household wiring, lighting circuits and low current drawing ventilation fans
Length: 100 Metre Drum
Number of Cores: 3
Conductor Diameter: 1.0mm2
Current rating: 14 Amp
Construction: PVC Insulation / PVC Sheath
Conductors: Solid Copper Conductor
Sheath Colour: Grey
Core Colours: Brown, Blue and Bare copper Earth
Width: 51mm
Depth: 3.00mm
Cable Clip Required: 1.0mm Twin/Earth Clip (code CAKF1.0)

Category: Electric Fencing Brand: powermax

Description
Reviews (0)

Description

1.0mm twin with earth electrical cable

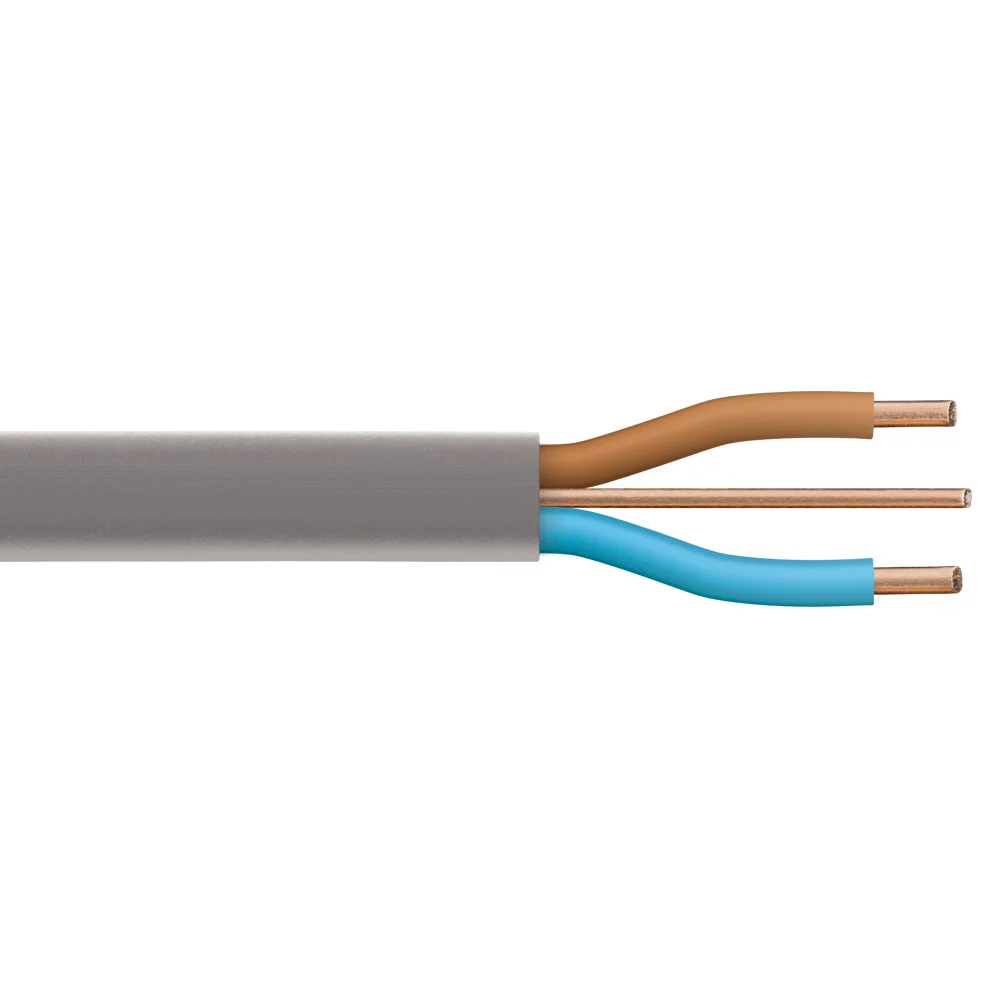

1.0mm twin with earth electrical cable plain annealed copper conductor with PVC insulated cores and PVC sheath.

Key Features

Plain annealed
Copper conductor
PVC insulated

Technical Data Sheath colour : Grey Cable size : 1.00mm² Stranding : 1 / 1.13mm² Cores : 2 Core & Earth Overall diameter : 4.10mm² x 8.65mm² Flat cable Temperature limits : -15°C – +70°C Standards 300 / 500V to BS6004 Flame propagation to BS EN50265 BASEC Approved
