APC SRV 10000VA (10kVA/10kW) On-Line Rackmount Easy UPS, 230V, SRV10KRILRK

APC SRV 10000VA (10kVA/10kW) SRV10KRILRK Specs:

The APC SRV 10000VA (SRV10KRILRK) is a powerful, high-capacity uninterruptible power supply (UPS) designed to protect mission-critical equipment from power disruptions. With a 10,000VA capacity and 230V input/output, it is suitable for large-scale IT infrastructure, including servers, networking equipment, and telecommunications devices.

Price In Kenya:

• The APC SRV 10KVA price in Kenya is Ksh.420,000 at Mtech Technologies Limited

APC SRV 10000VA (10kVA/10kW) Technical Specifications

Power Capacity and Output

• Rated Output: 10,000 VA / 10,000 W — full power capacity to support high-density rack loads including multiple servers, storage arrays, and networking equipment
• Output Voltage: 230V AC, single phase (configurable for 220V or 240V nominal output)
• Input Voltage Range: 110–300V at 60% load / 176–300V at full load — exceptional input tolerance for unstable grid environments
• Output Frequency: 50/60 Hz ±3 Hz, synchronised to mains
• Wave Type: Pure sine wave — the cleanest possible output for sensitive server and networking hardware

Power Quality — Exceptional by Design

• Total Harmonic Distortion (THD): Just 1% — near-perfect power purity that extends the life of connected equipment
• Crest Factor: 3:1 — handles demanding loads with high inrush current requirements
• Efficiency: 94% at full load — lower energy costs without sacrificing protection
• Surge Energy Rating: 600 Joules — robust transient voltage protection built in

Extended Runtime — Designed for Longer Backup

Unlike standard UPS models that include only a fixed internal battery, the SRV10KRILRK is designed with extended runtime support — a defining feature that separates it from the entry-level SRV10KI tower model.

• Battery Type: External lead-acid battery (included)
• Battery Voltage: 240V
• Battery Capacity: 1,512 VAh runtime
• Battery Charger Power: 1,170W rated — a significantly more powerful charger than base models, enabling faster recharge after deep discharge events
• Battery Recharge Time: Approximately 5 hours to full charge
• Battery Life Expectancy: 3–5 years under normal operating conditions

The extended runtime architecture means you can connect additional compatible external battery packs to further increase backup duration — giving your team the time to execute graceful shutdowns, bring backup generators online, or simply ride out longer outages without data loss.

Rack Integration — 5U Rackmount with Included Rail Kit

• Rack Units: 5U — efficient use of rack space in 19-inch standard enclosures
• Mounting Mode: Horizontal rack-mounted with included rail kit — no additional purchase required, no hidden costs
• Dimensions: H 219.5mm × W 438mm × D 615mm
• Net Weight: 78 kg
• Colour: Black (RAL 7010) — professional rack aesthetic

The inclusion of the rail kit in this bundle is a genuine value differentiator. Many competing rack UPS products require separate rail kit purchases. With the SRV10KRILRK, you receive everything needed for a clean, professional rack installation straight out of the box.

Intelligent Monitoring and Management

• Control Panel: Multifunction LCD status and control console — displays real-time input/output voltage, load percentage, battery status, runtime remaining, and fault conditions

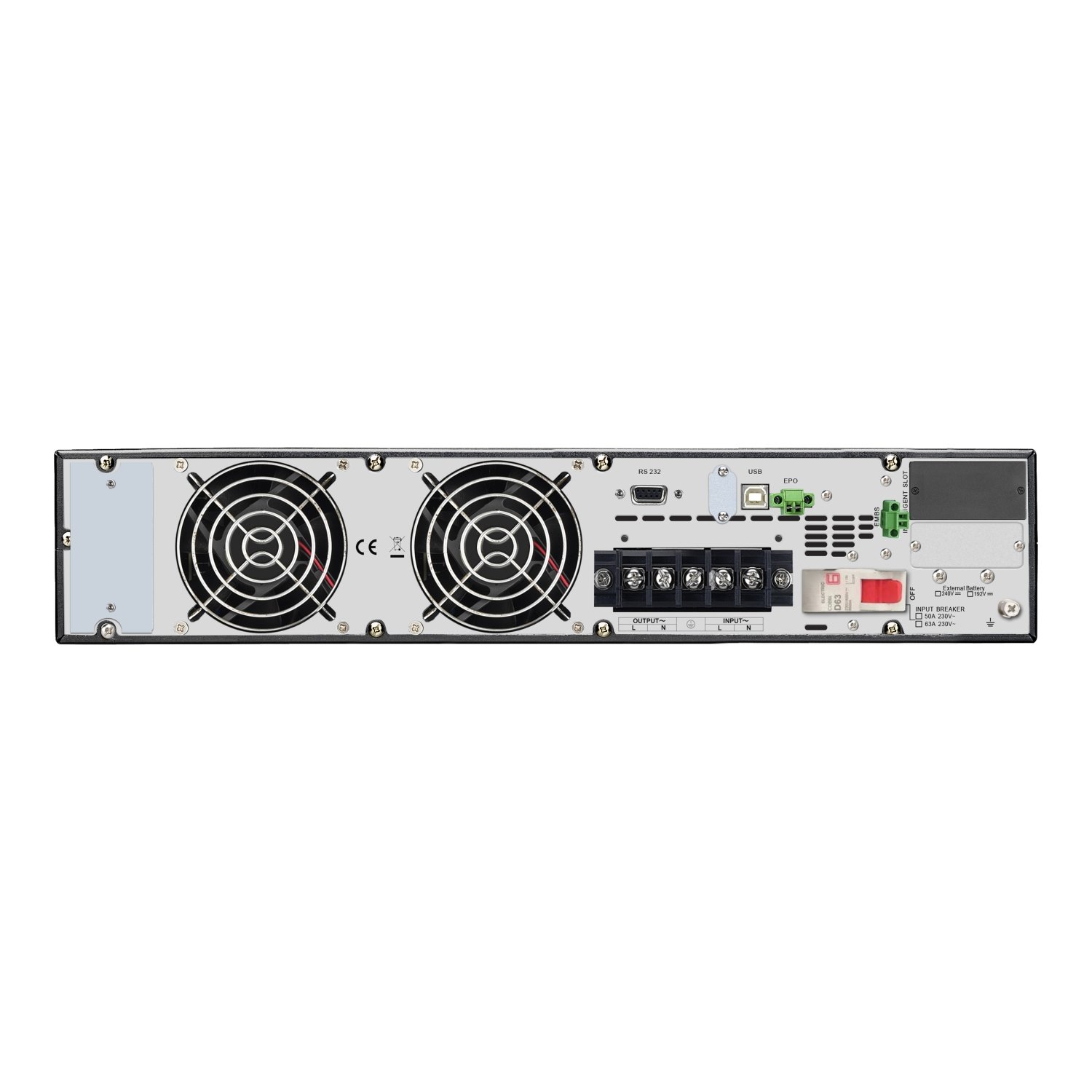

• UPS Connectivity: USB port + Serial port + available intelligent card slot
• Intelligent Card Slot: 1 free expansion slot — supports Schneider Electric’s SmartConnect or network management cards for remote SNMP monitoring, automated graceful shutdown, and DCIM integration
• Emergency Power Off (EPO): Yes — instant, facility-wide shutdown capability critical for data centre safety compliance
• Audible Alarms: Distinctive alerts for battery operation, low battery warning, and overload conditions

What Is the APC SRV10KRILRK and Who Is It For ?

The APC Easy UPS On-Line SRV10KRILRK by Schneider Electric is purpose-built for environments where downtime is simply not an option. Combining 10kVA / 10kW of true double-conversion on-line power protection with a space-efficient 5U rackmount form factor, extended runtime capability, and an included rail kit, this is the complete, ready-to-deploy UPS solution for serious rack-based IT infrastructure.

Unlike tower UPS units that consume valuable floor space, the APC SRV 10000VA slots directly into your existing 19-inch rack — delivering enterprise-grade power protection exactly where your critical equipment lives. This is not a compromise product. This is a professional-grade, intelligent UPS for IT managers, network engineers, and data centre operators who understand that power quality and uptime are non-negotiable.

What Makes the SRV10KRILRK Different from the Standard SRV10KI Tower?

Many buyers compare the SRV10KRILRK against the SRV10KI tower model. Here is why the rackmount extended runtime variant is the right choice for rack-based deployments:

Rack-Optimized Form Factor

The SRV10KI is a tower unit — ideal for standalone floor placement. The SRV10KRILRK is designed from the ground up for horizontal rack mounting in 19-inch standard racks, integrating seamlessly into professional server room and data centre environments without consuming floor space.

Extended Runtime Architecture

The SRV10KRILRK supports external battery expansion for extended backup duration. The tower SRV10KI is limited to its fixed internal battery. For environments where longer runtime under load is a requirement, the SRV10KRILRK is the clear choice.

Higher-Powered Battery Charger

With a 1,170W battery charger (versus 235W on the SRV10KI), the SRV10KRILRK recovers battery capacity significantly faster after a discharge event — a critical operational advantage in environments that experience repeated power interruptions.
