Access Control systems

General Overview

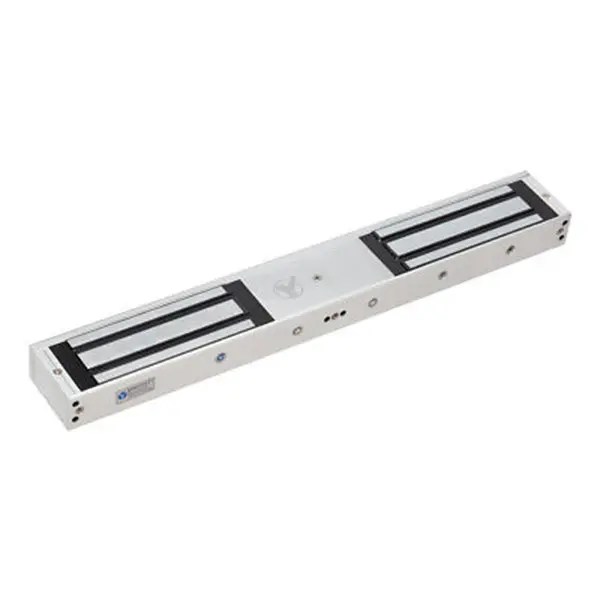

• Electromagnetic locking mechanism for enhanced access control.
• Designed for double doors or gates in commercial, industrial, and residential settings.
• Provides high-strength security with no moving parts for durability.

Locking Strength

• Holding force: 600 lbs (272 kg) per lock (common variant) or 1200 lbs (544 kg) per lock (heavy-duty variant).
• Dual-lock design for double doors.

Power and Voltage

• Operating voltage: 12V DC or 24V DC (selectable).
• Power consumption:
  • 12V DC: 500mA per lock.
  • 24V DC: 250mA per lock.
• Fail-safe operation: Unlocks automatically during power loss for emergency egress.

Dimensions and Weight

• Lock body dimensions: Approximately 500mm (L) x 48mm (W) x 25mm (H).
• Armature plate dimensions: Approximately 185mm (L) x 38mm (W) x 11mm (H).
• Weight: Typically 4–7 kg depending on the model.

Material and Construction

• Lock body: Anodized aluminum housing for corrosion resistance.
• Armature plate: Solid steel construction with a zinc coating.
• Weatherproof and dustproof variants available (IP65-rated models).

Installation Features

• Surface-mounted for easy installation on a wide range of door frames.
• Compatible with glass, wooden, metal, and fireproof doors.
• Includes mounting hardware and installation templates.

Operating Environment

• Operating temperature: -10°C to +55°C (14°F to 131°F).
• Humidity: Up to 90% non-condensing.

Control and Integration

• Works with access control systems, keypads, RFID readers, and exit buttons.
• Built-in MOV surge protection to safeguard against voltage spikes.
• Optional LED indicator for lock status (locked/unlocked).
• Relay for integration with fire alarm systems for emergency release.

Safety and Compliance

• CE and RoHS compliant.
• Meets UL safety standards (varies by model).

• Material: Typically constructed from fireproof materials, ensuring durability and resistance to extreme conditions.
• IP Rating: Often IP65 or similar, meaning they are protected against dust and moisture, making them suitable for a variety of environments, including outdoor and industrial settings.
• Activation: A breakable glass element that can be triggered to release locks or doors during an emergency.
• Contact Types: Available with different contact configurations, such as normally open (NO), normally closed (NC), or changeover contacts (CO), to suit various installation requirements.
• Power Rating: Commonly rated for 12VDC to 24VDC with current capacities ranging from 1A to 10A depending on the model.
• Temperature and Humidity: Designed to operate within a temperature range of -10°C to +55°C and withstanding up to 95% relative humidity, ensuring reliability in a wide range of conditions.
• Mounting Options: The units are available for surface or flush mounting, offering flexible installation solutions for different spaces.
• Indicators: Some models come equipped with LED indicators and sounders to alert when the glass has been broken, enhancing safety and visibility.

• Detection Zones: Up to 33 overlapping detection zones (depending on the model), which help pinpoint the exact location of metal items across the body, such as a weapon on the left or right side.
• Sensitivity: Adjustable sensitivity settings to detect various types of metals, including both ferrous and non-ferrous materials like guns, knives, and other weapons.
• Advanced Technology: Dual detection with transmitters and receivers in each panel for superior detection accuracy, eliminating interference and providing reliable performance in various environments.
• Traffic Flow Control: Integrated pacing lights and visual indicators to guide individuals through the checkpoint efficiently while ensuring smooth traffic flow.
• Security Features: Keypad lock and tamper-proof access to prevent unauthorized configuration changes. The device maintains its settings even if disconnected from power.
• Alarms: Audible tones and bright LED visual alarms for both operators and individuals when a metal object is detected. Multiple levels of alarm sensitivity are available.
• Power Supply: Operates on standard AC power (100 to 240V) and can include an optional battery backup for portable use.
• Weather and Environmental Resistance: Designed to withstand various environmental conditions with an IP55 weatherproof rating for outdoor use.
• Modular Design: Easy to assemble and maintain, with a simple setup process involving a few screws and internal connections.
• Optional Features: Includes the option for casters for mobility, and a USB port for software updates. Multiple units can be synchronized for large-scale installations without interference.

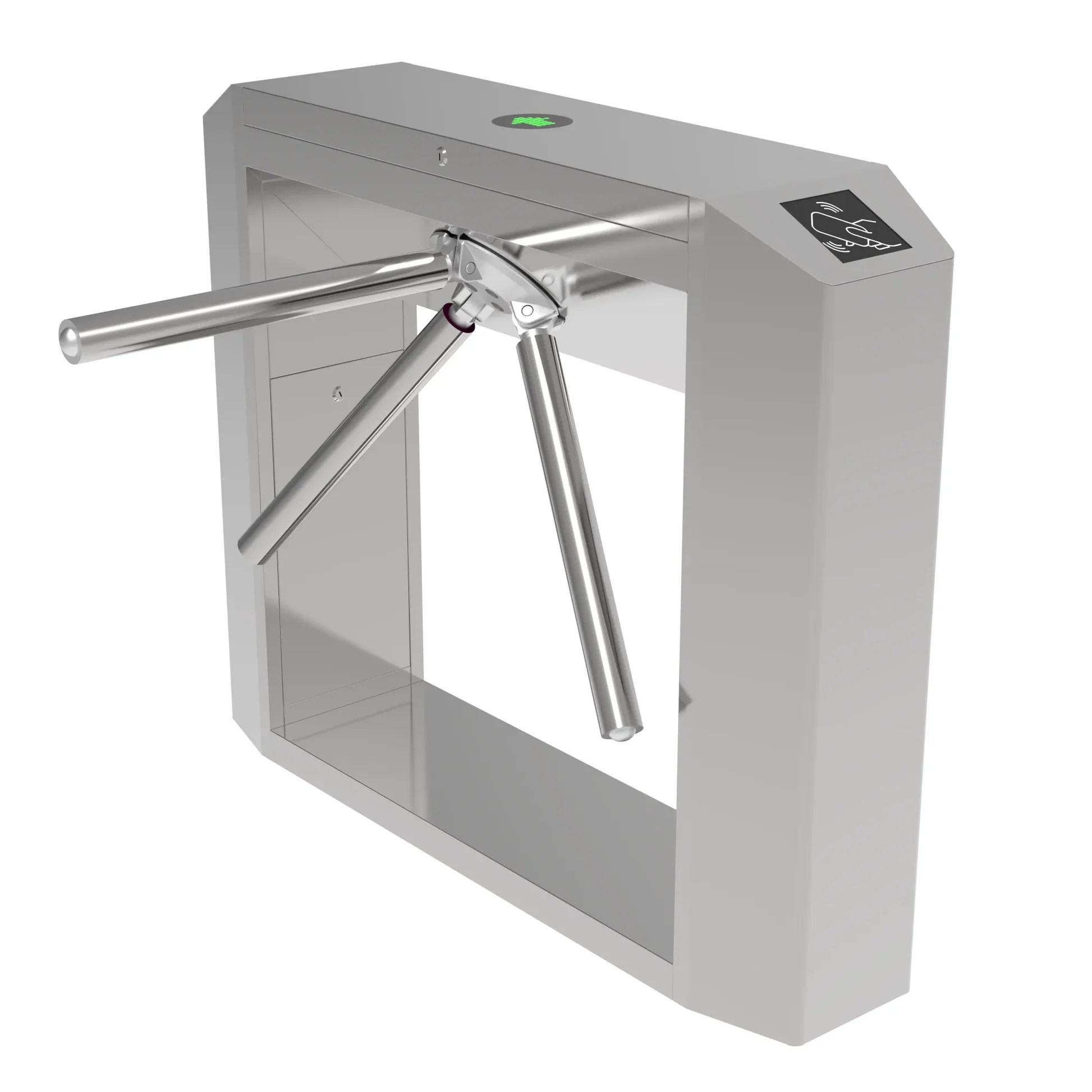

• Type: Mechanical or Electronic Turnstile
• Material:
  • Body: Stainless steel or aluminum
  • Finish: Brushed or polished
• Dimensions:
  • Height: 900 mm to 1,200 mm (35.4" to 47.2")
  • Width: 300 mm to 500 mm (11.8" to 19.7")
  • Depth: 300 mm to 600 mm (11.8" to 23.6")
• Weight:
  • Range: 50 kg to 150 kg (110 lbs to 330 lbs)
• Turnstile Type:
  • Full Height: Provides maximum security, covering the entire height of the user
  • Half Height: Covers up to half the height of the user, suitable for less secure environments
  • Tripod: Compact, typically used in less secure or high-traffic areas
• Mechanism:
  • Mechanical: Manual operation with rotating arms
  • Electronic: Motorized with electronic control systems
• Operation:
  • Passage Modes: Single or multiple passages per authorization
  • Direction Control: One-way or bi-directional
  • Entry/Exit Methods: Keycard, RFID, biometric, PIN code, or ticket-based
• Power Supply:
  • Voltage: 12V DC or 24V DC (for electronic models)
  • Power Consumption: Varies by model, typically 30W to 100W
• Access Control Integration:
  • Interfaces: Relay outputs, RS-485, TCP/IP for integration with access control systems
  • Communication Protocols: Support for various protocols depending on the model
• Features:
  • Indicator Lights: For operational status and access permissions
  • Alarm System: Alerts for unauthorized access or tailgating
  • Emergency Override: Manual release or emergency unlock features
  • Temperature Range: Operates effectively in temperatures ranging from -20°C to 60°C (-4°F to 140°F)
• Compliance:
  • Standards: Meets various safety and quality standards depending on the manufacturer
