Hikvision CCTV Dome Cameras

Camera Type: HD-TVI/AHD/CVI/CVBS Turret Dome Camera

Image Sensor: 5 MP Progressive Scan CMOS

Effective Pixels: 2560 (H) × 1944 (V)

Signal System: PAL/NTSC

Resolution: 5 MP

Lens:

• Focal Length: 12 mm
• Lens Type: Fixed
• Aperture: F1.4
• Field of View:
  • 12 mm: 30° (Horizontal)

Minimum Illumination:

• 0.01 Lux @(F1.4, AGC ON), 0 Lux with IR

Day/Night Mode: True Day/Night (ICR)

IR Technology: EXIR 2.0

IR Range: Up to 40 meters (131 feet)

Shutter Time: 1/25 (1/30) s to 1/50,000 s

Video Frame Rate:

• 5 MP@20fps
• 4 MP@25fps/30fps
• 1080p@25fps/30fps

Video Output: 1 Analog HD Output

Signal-to-Noise Ratio (SNR): >62 dB

Image Settings:

• Brightness: Adjustable
• Sharpness: Adjustable
• Saturation: Adjustable
• Contrast: Adjustable

White Balance: Auto

AGC (Automatic Gain Control): Yes

BLC (Backlight Compensation): Yes

HLC (Highlight Compensation): Yes

WDR (Wide Dynamic Range): Digital WDR

2D DNR: Yes

OSD Menu: Yes, with multiple languages

Operating Conditions:

• Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 90% or less (non-condensing)

Power Supply:

• 12 VDC ±15%
• Max. 4.6 W

Protection Level:

• IP67 (Weatherproof)

Material: Metal

Dimensions: Ø 110 mm × 91 mm (Ø 4.33" × 3.58")

Weight: Approx. 350 g (0.77 lb)

Mounting Options: Wall or ceiling mount

Compatibility:

• Supports multiple video formats: HD-TVI, AHD, CVI, CVBS

Camera Type: TurboHD Dome Camera

Image Sensor: 5 MP Progressive Scan CMOS

Effective Pixels: 2560 (H) × 1944 (V)

Signal System: PAL/NTSC

Resolution: 5 MP

Lens:

• Focal Length: 2.8 mm, 3.6 mm, or 6 mm options
• Lens Type: Fixed
• Aperture: F1.2
• Field of View:
  • 2.8 mm: 100.3° (Horizontal)
  • 3.6 mm: 79° (Horizontal)
  • 6 mm: 50.9° (Horizontal)

Minimum Illumination:

• 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR

Day/Night Mode: True Day/Night (ICR)

IR Technology: EXIR 2.0

IR Range: Up to 20 meters (66 feet)

Shutter Time: 1/25 (1/30) s to 1/50,000 s

Video Frame Rate:

• 5 MP@20fps
• 4 MP@25fps/30fps
• 1080p@25fps/30fps

Video Output: 1 Analog HD Output

Signal-to-Noise Ratio (SNR): >62 dB

Image Settings:

• Brightness: Adjustable
• Sharpness: Adjustable
• Saturation: Adjustable
• Contrast: Adjustable

White Balance: Auto

AGC (Automatic Gain Control): Yes

BLC (Backlight Compensation): Yes

HLC (Highlight Compensation): Yes

WDR (Wide Dynamic Range): Digital WDR

2D DNR: Yes

OSD Menu: Yes, with multiple languages

Operating Conditions:

• Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 90% or less (non-condensing)

Power Supply:

• 12 VDC ±15%
• Max. 4.3 W

Protection Level:

• IP67 (Weatherproof)
• IK10 (Vandal-resistant)

Material: Metal

Dimensions: Ø 111 mm × 82.4 mm (Ø 4.37" × 3.24")

Weight: Approx. 350 g (0.77 lb)

Mounting Options: Wall or ceiling mount

Compatibility:

• Supports multiple video formats: TVI, AHD, CVI, CVBS

• Fixed focal length: 2.8mm, 3.6mm, or 6mm
• Angle of view:
  • 2.8mm: Approx. 103°
  • 3.6mm: Approx. 82.2°
  • 6mm: Approx. 54°

• Color: 0.01 Lux @ (F1.2, AGC ON)
• Black & White: 0 Lux with IR

• PAL: 1080p@25fps
• NTSC: 1080p@30fps

• Fixed focal length: 2.8mm or 3.6mm
• Angle of view:
  • 2.8mm: Approx. 103°
  • 3.6mm: Approx. 82.2°

• Color: 0.01 Lux @ (F1.2, AGC ON)
• Black & White: 0 Lux with IR

• PAL: 1080p@25fps
• NTSC: 1080p@30fps

Camera Specifications

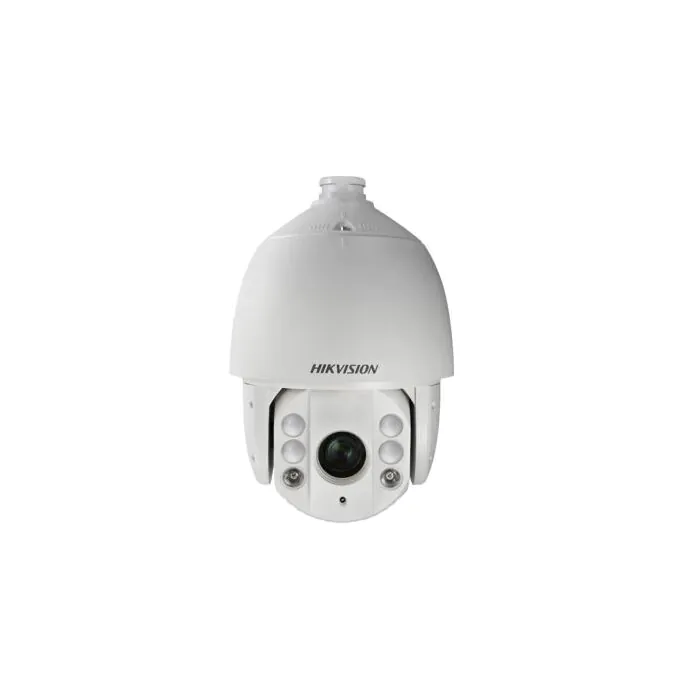

• Model: DS-2DE7232IW-AE
• Type: IP PTZ (Pan-Tilt-Zoom) Dome Camera
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Resolution: 2 MP (1920 × 1080)
• Lens:
  • Type: Motorized Varifocal Lens
  • Focal Length: 4.7-150 mm
  • Aperture: F1.6-F4.4
  • Field of View:
    • Horizontal: 57.8° - 1.8°
    • Vertical: 31.9° - 1.0°
• Optical Zoom: 32x optical zoom
• Digital Zoom: Up to 16x
• Day & Night: True Day/Night with IR cut filter
• Minimum Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Infrared (IR) Range: Up to 150 meters (492 feet)
• Wide Dynamic Range (WDR): 120 dB
• Pan Range: 0° to 360° endless
• Tilt Range: -15° to 90°
• Zoom Control: Motorized lens with PTZ control

Video Specifications

• Max Resolution: 1920 × 1080 (2 MP)
• Main Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
  • 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression:
  • Main Stream: H.265+/H.265, H.264+/H.264
  • Sub Stream: H.264+/H.264
• Bit Rate: 32 Kbps to 16 Mbps

Image Enhancements

• 3D Digital Noise Reduction (3D DNR): Yes
• Backlight Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Defog: Yes
• Electronic Image Stabilization (EIS): Yes
• Region of Interest (ROI): Up to 4 fixed regions for each stream
• Image Settings:
  • Saturation, brightness, contrast, and sharpness adjustable via client software or web browser

Network

• Ethernet: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
• Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Network Storage: NAS (NFS, SMB/CIFS), ANR
• Security Features:
  • User authentication
  • Watermark
  • IP address filtering
  • Basic and digest authentication for HTTP/HTTPS
  • TLS 1.2 for HTTPS
  • HTTPS, AES-128, AES-256 encryption
  • H.265+ for enhanced encoding performance

Alarm & Event

• Alarm Input/Output: 1 input, 1 output
• Alarm Triggers: Motion detection, video tampering alarm, network disconnection, IP address conflict, illegal login, HDD full, HDD error
• Event Notification: Alarm output, e-mail, FTP, HTTP listening, NAS, SD card (with optional MicroSD/SDHC/SDXC card slot)

Storage

• Built-in Storage: MicroSD/SDHC/SDXC card slot, up to 256 GB

Interface

• Audio:
  • Input: 1 audio input, 3.5 mm interface, Mic in/Line in
  • Output: 1 audio output, 3.5 mm interface, Line out
• RS-485 Interface: 1
• Reset Button: Yes

Smart Features

• Smart Event Detection:
  • Line crossing detection
  • Intrusion detection
  • Object removal detection
  • Unattended baggage detection
  • Scene change detection

Physical & Environmental

• Weatherproof Rating: IP66
• Vandal-Proof Rating: IK10
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Operating Humidity: 95% or less (non-condensing)
• Power Supply:
  • 24 V AC ± 25%
  • PoE (802.3at, Class 4)
• Power Consumption:
  • 24 V AC, max. 80 W
  • PoE, max. 90 W
• Dimensions: 357 × 302 × 410 mm (14.06" × 11.89" × 16.14")
• Weight: Approx. 6.5 kg (14.33 lbs)

Additional Features

• PTZ Control: 360° pan and -15° to 90° tilt with motorized zoom
• Installation Options: Wall or ceiling mount
• Color: White

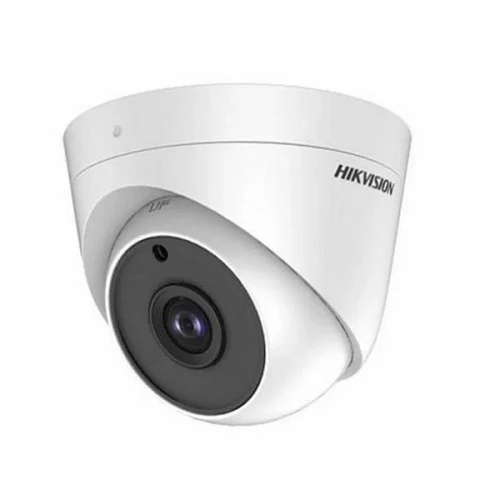

Camera:

• Image Sensor: 2 MP CMOS Image Sensor
• Signal System: PAL/NTSC
• Effective Pixels: 1920 (H) × 1080 (V)
• Min. Illumination:
  • Color: 0.01 Lux @ (F1.2, AGC ON)
  • 0 Lux with IR
• Shutter Time: 1/25 s to 1/50,000 s (PAL), 1/30 s to 1/50,000 s (NTSC)
• Lens: 2.8 mm fixed lens
• Lens Mount: M12

Day & Night:

• IR Cut Filter with Auto Switch
• IR Range: Up to 30 m

Image:

• Frame Rate: 1080p@25fps/1080p@30fps
• Video Output: 1 Analog HD output via Turbo HD (HD-TVI)
• S/N Ratio: More than 62 dB
• Image Settings: Brightness, sharpness, DNR, mirror
• BLC: Yes
• AGC: Yes
• DNR: 2D DNR

Functionality:

• Night Vision: Up to 30 meters with IR LEDs

General:

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC ± 15%
• Power Consumption: Max. 4 W
• Weather Proof Rating: IP67
• Dimensions: 92 mm × 70 mm (3.62" × 2.76")
• Weight: Approx. 300 g (0.66 lb)
