D-link

• Product Type: Ethernet Networking Cable
• Model Number: NCB-C6UGRYR-305 (varies by product)
• Cable Category: Cat 6
• Cable Type: Unshielded Twisted Pair (UTP)
• Length: 305 meters (1000 feet)
• Conductor Material: 100% copper
• Conductor Gauge: 24 AWG (American Wire Gauge)
• Data Transmission Speed: Up to 10 Gbps (Gigabits per second)
• Maximum Bandwidth: 250 MHz
• Connector Type: RJ45 connectors on both ends
• Color: Gray
• Jacket Material: PVC (Polyvinyl Chloride)
• Installation Type: Indoor use
• Application: Suitable for connecting computers, routers, switches, and other network devices in home or office environments
• Standards Compliance: TIA/EIA 568B and ISO/IEC 11801 standards
• Environmental Rating: RoHS compliant (free from hazardous materials)

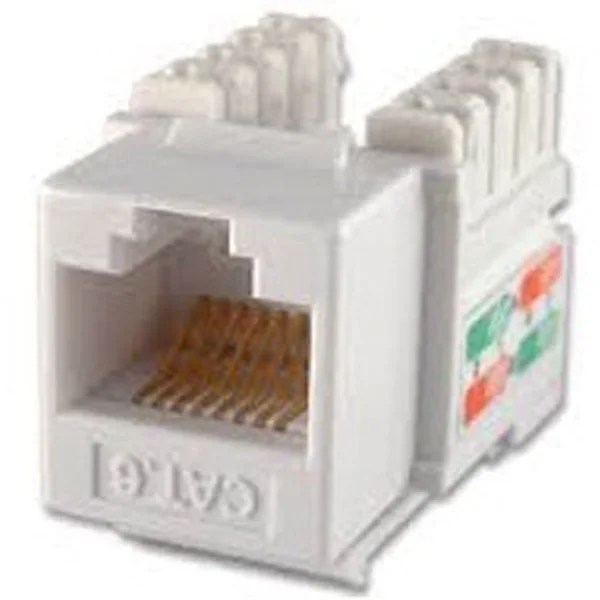

• Category: Cat 6
• Type: Unshielded Twisted Pair (UTP)
• Termination Type: Toolless Keystone Jack
• Material: High-impact, flame-retardant plastic
• Compatibility:
  • Compatible with 110 and Krone punch-down tools
  • Fits standard keystone faceplates, patch panels, and surface mount boxes
• Conductor Material: Phosphor bronze with gold-plated contacts
• Contact Resistance: 20 mΩ maximum
• Insulation Resistance: 500 MΩ minimum at 100 V DC
• Insertion Loss: ≤ 0.1 dB (1-250 MHz)
• Crosstalk:
  • Near-End Crosstalk (NEXT): ≥ 43 dB (1-250 MHz)
  • Power Sum Near-End Crosstalk (PSNEXT): ≥ 40 dB (1-250 MHz)
• Return Loss: ≥ 20 dB (1-250 MHz)
• Durability:
  • Supports up to 750 mating cycles
  • IDC Termination: Accepts 22 to 26 AWG solid cables
• Temperature Range:
  • Operating: -10°C to 60°C
  • Storage: -40°C to 70°C
• Color Coding:
  • T568A and T568B wiring schemes printed on the jack for easy identification
• Dimensions: Varies based on model but typically compact to fit standard keystone slots
• Compliance and Certifications:
  • Meets or exceeds TIA/EIA-568-C.2 standards
  • RoHS compliant
  • UL Listed
• Color Options: Available in various colors for easier network identification
• Application: Suitable for Ethernet, Fast Ethernet, and Gigabit Ethernet applications

General Specifications

• Brand: D-Link
• Product Type: Patch Cord
• Category: Cat 6
• Cable Type: Unshielded Twisted Pair (UTP)
• Length: 0.5 meters (50 centimeters)

Performance Specifications

• Bandwidth: Supports frequencies up to 250 MHz
• Data Transmission:
  • Capable of supporting Gigabit Ethernet (1000BASE-T) and Fast Ethernet
• Insertion Loss:
  • Low insertion loss, meeting TIA/EIA-568-C.2 standards
• Near-End Crosstalk (NEXT):
  • Meets or exceeds TIA/EIA-568-C.2 standards to minimize interference
• Return Loss:
  • Meets or exceeds TIA/EIA-568-C.2 standards for signal integrity

Cable Specifications

• Conductor Material:
  • 24 AWG stranded copper for flexibility and performance
• Jacket Material:
  • PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) for enhanced safety
• Jacket Diameter:
  • Typically between 5.8mm to 6.0mm
• Color Options:
  • Available in multiple colors such as blue, grey, yellow, red, green, and black for easy network identification

Connector Specifications

• Connector Type:
  • RJ45 to RJ45
• Connector Material:
  • Gold-plated contacts for superior conductivity and corrosion resistance
• Pin Configuration:
  • 8P8C (8 positions, 8 contacts) configuration
• Snagless Design:
  • Molded boots to prevent snagging and provide strain relief
• Durability:
  • Supports up to 750 mating cycles for long-term reliability

Compliance and Certifications

• Standards Compliance:
  • Meets or exceeds TIA/EIA-568-C.2 specifications for Category 6 cabling
  • ISO/IEC 11801 compliant
• Certifications:
  • RoHS compliant
  • UL Listed

Environmental Specifications

• Operating Temperature:
  • Suitable for use in environments with temperatures ranging from -20°C to 60°C
• Storage Temperature:
  • Can be stored in temperatures ranging from -40°C to 70°C

Applications

• Network Environments:
  • Suitable for use in data centers, enterprise networks, telecommunications rooms, and home networking
• Usage:
  • Ideal for connecting network devices such as switches, routers, patch panels, and workstations
• Compatibility:
  • Backward compatible with Cat 5e networks

• Category: Cat 6
• Type: Unshielded Twisted Pair (UTP)
• Number of Ports: 24
• Panel Type: Rack-mountable, 19-inch standard width
• Material:
  • Panel: Powder-coated, corrosion-resistant steel
  • Contacts: Phosphor bronze with gold-plated contacts
• Color: Typically black, with labeled ports
• Front Panel:
  • Port numbering for easy identification
  • Integrated label holder for port labeling
• Rear Panel:
  • IDC termination blocks for easy cable installation
  • Compatible with both 110 and Krone punch-down tools
  • Accepts 22 to 26 AWG solid or stranded wires
• Wiring Scheme:
  • Supports both T568A and T568B wiring schemes
• Performance:
  • Bandwidth: Supports frequencies up to 250 MHz
  • Insertion Loss: Meets or exceeds TIA/EIA-568-C.2 standards
  • Near-End Crosstalk (NEXT): Meets or exceeds TIA/EIA-568-C.2 standards
• Compliance and Certifications:
  • TIA/EIA-568-C.2
  • ISO/IEC 11801
  • UL Listed
  • RoHS compliant
• Dimensions:
  • Height: 1U (approximately 1.75 inches or 44.45 mm)
  • Width: 19 inches (482.6 mm) standard rack width
  • Depth: Varies based on model but generally compact
• Mounting:
  • Includes mounting brackets and screws for easy installation in standard 19-inch racks or cabinets
• Cable Management:
  • Includes cable management bar for organized cable routing and strain relief
• Temperature Range:
  • Operating: -10°C to 60°C
  • Storage: -40°C to 70°C
• Application:
  • Suitable for Ethernet, Fast Ethernet, and Gigabit Ethernet applications in structured cabling systems
