Dahua Access Control

General Overview:

• Product Type: Standalone Fingerprint Reader
• Model: ASI1212D
• Brand: Dahua Technology
• Application: Access control system, suitable for use in offices, homes, and security systems.

Key Features:

• Fingerprint Recognition:
  • Optical fingerprint sensor with a high-resolution 500 DPI scan for accurate identification.
  • Fingerprint capacity: Up to 3,000 fingerprints.
  • Fingerprint matching time: < 1 second for fast access control.
• User Capacity:
  • Fingerprint capacity: 3,000 users.
  • Transaction logs: Stores up to 30,000 records for monitoring and auditing access events.
• Authentication Methods:
  • Supports fingerprint-based authentication.
  • Standalone operation (does not require a networked server or additional controllers).
  • RFID card support (optional, via external card reader) for dual-factor authentication (fingerprint + RFID).
• Communication:
  • TCP/IP for network communication (remote management and monitoring).
  • USB communication for offline operation and data transfer.
  • Wiegand Output for integration with other access control systems.
• Display & User Interface:
  • LED indicators for clear status and feedback (Green for success, Red for failure).
  • Buzzer sound for confirmation of actions (e.g., access granted or denied).
  • 2.4-inch color LCD screen for easy setup and user interaction.
• Power Supply:
  • 12V DC power input.
  • Low power consumption during standby mode for energy efficiency.
• Security & Protection:
  • Anti-spoofing technology to detect and prevent fake fingerprint submissions.
  • Encryption for secure data transfer and protection of user information.
• Environmental Features:
  • Operating temperature: 0°C to 45°C (32°F to 113°F).
  • Operating humidity: 20% to 80% RH (non-condensing).
• Mounting & Installation:
  • Wall-mountable design for convenient installation in offices, entrances, or homes.
  • Screw mounting for secure fixture.
• Dimensions:
  • Dimensions (L x W x H): 135mm x 60mm x 20mm
  • Weight: 0.25 kg (approx.)
• Other Features:
  • Multiple access control modes: Support for fingerprint, password, and RFID (optional).
  • User-friendly interface with easy-to-navigate menus for configuration.
  • Tamper alarm for added security (notifies when tampering is detected).
• Integration:
  • Compatible with third-party access control systems via Wiegand interface.
  • Can be integrated with Dahua's access control panels for complete access management.

Performance Specifications:

• Fingerprint capacity: Up to 3,000 fingerprints.
• Transaction storage: Up to 30,000 records.
• Matching speed: < 1 second per fingerprint.
• Fingerprint scan resolution: 500 DPI.
• Power Supply: 12V DC, low power consumption.

General Information:

• Device Type: Card Reader
• Model: ASR1101A
• Technology Supported: MIFARE cards and PASSWORD input
• Application: Access control systems in residential, commercial, and industrial setups.

Key Features:

• Reader Type: Contactless RFID card reader.
• Supported Card Type: MIFARE cards (13.56 MHz).
• Authentication Modes:
  • Card-based authentication.
  • Password input via keypad.
  • Combination of card and password for enhanced security.
• Communication Interface:
  • RS-485 for data transmission.
  • Wiegand Output (26-bit and 34-bit) for integration with access control panels.
• Power Requirements:
  • Input Voltage: 9–15 VDC.
  • Power Consumption: ≤ 2W.
• Performance:
  • Reading Range: Up to 3–5 cm (varies with card and environment).
  • Response Time: < 0.1 seconds for quick access.

Physical Characteristics:

• Keypad:
  • 12-key touchpad for password entry.
  • Durable and responsive for repeated use.
• Material:
  • High-strength plastic housing for durability.
  • Color: Black.

General Overview

• Product Type: Walk-through metal detector with temperature monitoring
• Model: DHI-ISC-D718-T
• Brand: Dahua Technology
• Application: Designed for security screening in public places, buildings, and high-security areas such as airports, stadiums, and government facilities.

Key Features

• Temperature Monitoring:
  • Integrated body temperature measurement system for detecting elevated body temperature in real-time.
  • High accuracy temperature measurement to support health and safety protocols.
  • Can be used for fever detection in crowded environments.
• Walk-through Metal Detection:
  • Multi-zone detection system for precise location tracking of metallic objects.
  • 24 detection zones provide detailed analysis of potential threats.
  • Adjustable sensitivity settings to detect a wide range of metal objects.
  • Capable of detecting ferrous, non-ferrous, and stainless steel objects.
• Security & Performance:
  • Advanced signal processing for reliable and accurate detection.
  • Automatic calibration to ensure consistent performance in various environments.
  • Alarm notification with visual (LED indicators) and audio alerts for detected threats.
  • Multiple alarm modes including adjustable volume for user preference.
• Design & Build:
  • Slim, ergonomic design with a modern appearance for easy installation and integration in various settings.
  • Durable materials to withstand heavy use in high-traffic areas.
  • Multiple color options for customization in different environments.
  • Weatherproof construction for use in various environmental conditions.
• Temperature Measurement Specifications:
  • Temperature range: Detects temperatures from 30°C to 45°C (86°F to 113°F).
  • Accuracy: +/- 0.5°C (0.9°F).
  • Detection time: Rapid body temperature scanning in 1 second per person.
  • Temperature threshold setting for automated alerts when abnormal temperatures are detected.
• User Interface & Management:
  • LCD display for easy viewing of temperature measurements and security data.
  • Multiple user modes for customized access control, including alarm thresholds for both metal and temperature detection.
  • USB interface for software updates and data transfer.
  • Remote control capability for system management and monitoring.
• Connectivity & Integration:
  • Integrated software for monitoring and reporting security events and temperature data.
  • Multiple communication ports such as RS485, Wiegand, and Relay output for easy integration with other security systems.
  • IP network support for remote management and monitoring via network-connected systems.
• Power Supply:
  • Voltage: AC 100V to 240V.
  • Power Consumption: Low power consumption for energy-efficient operation.
  • Standby mode with automatic power-saving features.
• Compliance & Certifications:
  • CE Certified for compliance with European safety and quality standards.
  • RoHS Compliant (Restriction of Hazardous Substances).
  • FCC and IC certifications for electromagnetic compatibility.

General Overview

• Product Type: IP-based Villa Outdoor Station
• Model: DHI-KTP02
• Brand: Dahua Technology
• Application: Designed for use in residential and commercial buildings, providing secure and convenient communication and access control.

Key Features

• IP Communication:
  • IP-based system that supports high-definition video and audio communication over the network.
  • Two-way audio allows residents to communicate with visitors.
  • HD video support for clear visual identification.
• Display & Interface:
  • 7-inch color touch screen for easy viewing and operation.
  • Resolution: 1024 x 600 pixels, providing high-quality images.
  • Intuitive touch interface for easy interaction with visitors and system settings.
  • Menu navigation for door unlocking, volume control, and settings.
• Camera Specifications:
  • Wide-angle camera with a 170° horizontal field of view, offering a broad view of the area outside the door.
  • IR LEDs for night vision, ensuring clear video footage in low-light conditions.
  • 2MP camera for high-definition video quality.
  • Motion detection feature for enhanced security by notifying users of movement near the door.
• Connectivity:
  • Wi-Fi and Ethernet (LAN) support for flexible installation and remote access.
  • Remote access via a mobile app for answering calls and unlocking doors from anywhere.
  • Integration with Dahua’s IP-based video intercom systems and access control systems.
• Audio Features:
  • High-quality two-way audio with noise suppression and echo cancellation for clear communication.
  • Built-in microphone and speaker for smooth interaction with visitors.
• Access Control:
  • Built-in RFID card reader for access control, allowing residents to grant entry to visitors using RFID cards.
  • Remote door unlock function through the touch screen or app.
  • Support for multiple access methods: including keypad entry and mobile app control.
• Security & Monitoring:
  • IP66 weatherproof rating, ensuring the device’s durability and protection against dust and water in outdoor environments.
  • Tamper-proof design to prevent unauthorized access or tampering with the device.
  • Motion detection alerts sent to mobile devices, improving security monitoring.
  • Event log to track entry activity and interactions.
• Power Supply:
  • DC 12V power supply for stable performance.
  • Low power consumption for energy-efficient operation.
• Installation:
  • Surface-mount installation for ease of setup in different building designs.
  • Simple wiring and setup process, with detailed instructions for installation.
  • Supports both residential and commercial use, making it versatile for various types of properties.
• Intercom Functionality:
  • Supports up to 3 indoor monitors, allowing for comprehensive communication within larger properties.
  • Call forwarding to multiple devices for convenience.
  • Intercom functionality allows communication with multiple locations or rooms within the building.

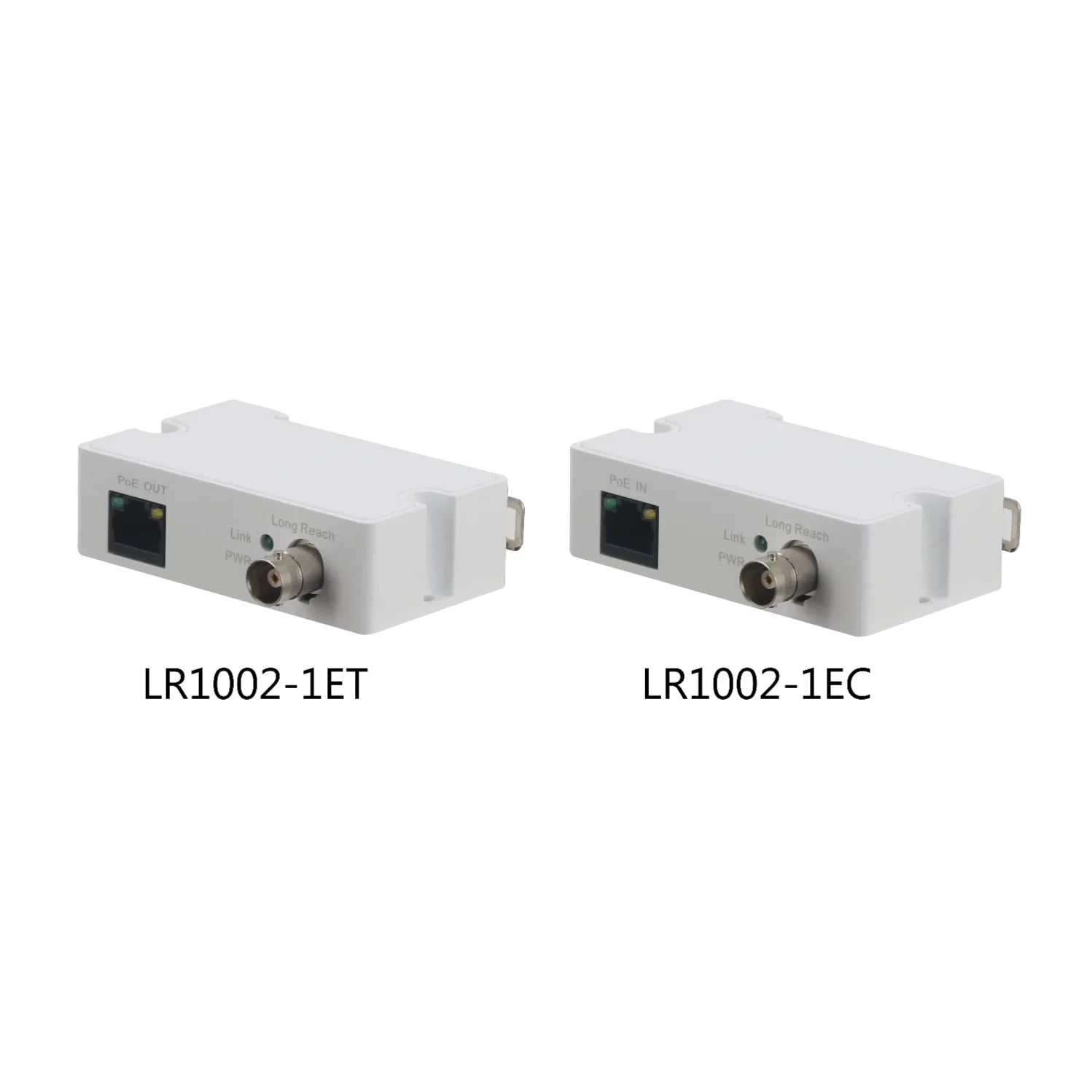

General Overview:

• Product Type: Single-Port EoC (Ethernet over Coax) Extender (Transmitter)
• Model: LR1002-1ET
• Brand: Dahua Technology
• Application: Used for transmitting Ethernet signals over existing coaxial cables, providing an efficient solution for extending network connectivity in environments where replacing cables is impractical.

Key Features:

• Ethernet over Coax (EoC) Technology:
  • Supports Ethernet over Coax (EoC) transmission, enabling Ethernet data to be sent over coaxial cables.
  • Allows Ethernet connectivity to be extended over distances of up to 300 meters (984 feet) using RG6 coaxial cables.
• Port Configuration:
  • 1 x 10/100/1000 Mbps Ethernet port for data transmission.
  • 1 x Coaxial port (F-type) to connect to coaxial cable for signal transmission.
• Data Transmission Rate:
  • Gigabit Ethernet (10/100/1000 Mbps) for high-speed data transfer.
  • Supports full-duplex communication for optimal data transmission.
• Compatibility:
  • Compatible with Dahua EoC products for seamless integration into existing security and surveillance setups.
  • Works with Dahua EoC receivers to extend Ethernet networks via coaxial cable.
• Power over Ethernet (PoE) Compatibility:
  • Passive PoE support for providing power to compatible devices through the coaxial cable (when used with compatible devices).
• Installation & Mounting:
  • Compact design for easy wall or shelf mounting.
  • Plug-and-play installation without the need for complex configuration.
  • Easy-to-use interface with LED indicators for power and link status.
• Physical Specifications:
  • Dimensions: 90mm x 57mm x 27mm (L x W x H)
  • Weight: Approximately 0.2 kg (7 oz).
• Power Supply:
  • DC 12V power input via a separate power adapter (included).
  • Low power consumption for energy efficiency during operation.
• Environmental Features:
  • Operating Temperature: -10°C to +55°C (14°F to 131°F).
  • Operating Humidity: 10% to 90% RH (non-condensing).
• LED Indicators:
  • Power LED for device status.
  • Ethernet LED for network connectivity status.
  • Coaxial Link LED for signal status over the coaxial cable.
• Durability & Protection:
  • Metal housing for durability and long-lasting operation.
  • Over-voltage and over-current protection to ensure device safety.

General Information:

• Cable Type: Special-purpose composite cable.
• Model Number: MC-PF3-B3-4.
• Application: Suitable for use with surveillance systems, security equipment, and power supply solutions.

Construction and Material:

• Outer Jacket Material: High-quality PVC for durability and flexibility.
• Cable Structure: Composite cable with integrated power and data transmission.
• Cable Color: Black.

Electrical Specifications:

• Power Cable Specifications:
  • Conductor Material: Pure copper.
  • Conductor Size: 2 x 0.75 mm² for stable power delivery.
• Signal Cable Specifications:
  • Conductor Material: Pure copper for low resistance.
  • Conductor Size: 2 x 0.5 mm² for reliable signal transmission.
• Voltage Rating: Up to 300V.
• Maximum Current Capacity: 10A (varies by application).

Performance Features:

• Transmission Capability: Supports simultaneous power and data transmission.
• Noise Shielding: Minimal interference for stable data communication.
• Signal Loss: Optimized for low attenuation over long distances.

Physical Characteristics:

• Cable Diameter: Approx. 7.0 mm (± tolerance).
• Cable Length Options: Available in various roll lengths (standard: 100 meters per roll).

Environmental Specifications:

• Operating Temperature Range: -20°C to +70°C.
• Weather Resistance: UV-resistant and suitable for outdoor and indoor installations.
• Fire Resistance: Flame-retardant PVC jacket.
