General Specifications

• Brand: D-Link
• Product Type: Network Cable
• Category: Cat 6
• Cable Type: Unshielded Twisted Pair (UTP)
• Conductor Gauge: 24 AWG
• Cable Length: 305 meters (1000 feet)
• Jacket Color: Gray

Performance Specifications

• Bandwidth: Supports frequencies up to 250 MHz
• Data Transmission:
  • Suitable for Gigabit Ethernet (1000BASE-T)
  • Supports Fast Ethernet and standard Ethernet applications
• Insertion Loss:
  • Meets or exceeds TIA/EIA-568-C.2 standards
• Near-End Crosstalk (NEXT):
  • Meets or exceeds TIA/EIA-568-C.2 standards
• Return Loss:
  • Meets or exceeds TIA/EIA-568-C.2 standards

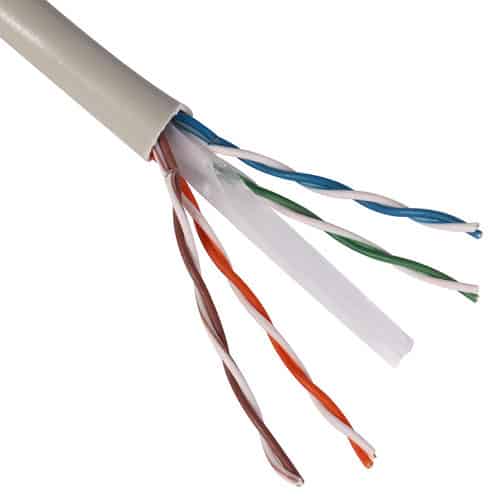

Cable Construction

• Conductor Material:
  • 24 AWG solid copper conductors
• Insulation:
  • PVC (Polyvinyl Chloride) or polyethylene insulation for each conductor
• Twisting:
  • Twisted pair design to reduce crosstalk and interference
• Jacket Material:
  • PVC (Polyvinyl Chloride)
• Jacket Diameter:
  • Typically around 6.0mm

Compliance and Certifications

• Standards Compliance:
  • Meets or exceeds TIA/EIA-568-C.2 standards for Cat 6 cabling
  • ISO/IEC 11801 compliant
• Certifications:
  • RoHS compliant
  • UL Listed

Environmental Specifications

• Operating Temperature:
  • Suitable for use in environments with temperatures ranging from -20°C to 60°C
• Storage Temperature:
  • Can be stored in temperatures ranging from -40°C to 70°C

Additional Features

• Packaging:
  • Supplied in a 305-meter roll for easy deployment and minimized cable waste
• Flexibility:
  • Designed for structured cabling systems, suitable for both horizontal and vertical installations
