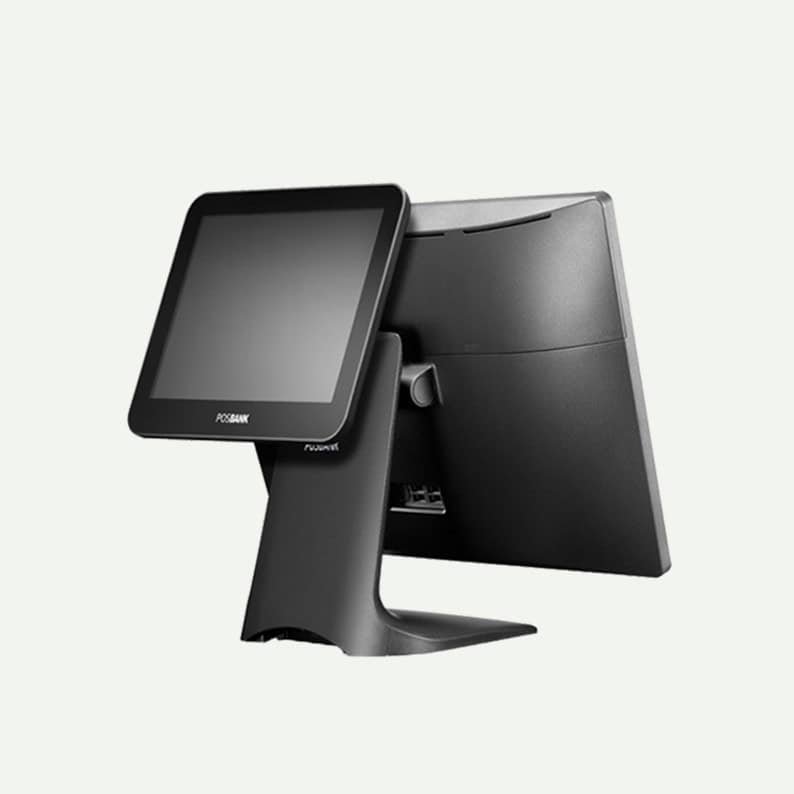

Postbank APEXA G Magstripe Reader module (No Smart card Reader)
POSBANK Magnetic Stripe Reader is an integrated programmable magnetic card reader for APEXA G terminals. It is highly reliable- being able to read both standard and high coercivity cards (300-4000 Oe) which enables you to use it on different instances depending on how the cards are used.
| tures | Manual Swipe operation, bi-direction |
| Read both normal and high coercivity card (300-4000 Oe) | |
| High Performance, High Reliability | |
| Single, dual and triple track model | |
| Comply with ISO 7812, IBM standards , AAMVA, JIS-2 | |
| Support multi-country code settings | |
| Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence (using Matrix Maker ) | |
| with metal weigh for balancing during swiping | |
| Life of head Approx 500,000 passes under normal ideal laboratory environment | |
| Error rate Less than 0 .5% under the normal ideal laboratory environment | |
| USB, PS/2 and RS232 are available. | |
| USB exists as a HID device, no need to install any driver. | |
| Technical Specification | Reader Performance: Track 1 : 210 BPI with max 76 characters Track 2 : 210 BPI with max 107 characters or 75 BPI with max 37 characters Track 3 : 210 BPI with max 107 characters Card swipe speed : 10 to 100 cm/s |
| Configuration | Available Configuration: Dual Track : Track 1 & 2 or Track 2 & 3 Three Track : Track 1, 2 & 3 Support USB, PS/2 interface Support multi-country code settings |
| Environment Adaptability | Card Operating Speed: TEST CARD/SPEED (inch/sec) Normal : 5 – 55 ips Jitter : 5 – 50 ips Low Amplitude : 5 – 50 ips Test card thickness is 0. 76mm +/- 0.08mm (0 030″ +/- 0 003″) Reliable to re ad Jitter card of magnetic stripes encoded with bit cell length variations within +/-12% as defined in ISO 7811 Reliable to re ad Low Amplitude card of magnetic stripes encoded at 60% or more of the amplitude as defined in ISO 7811 |
| Others | Operating Voltage : 5VD +/- 5% Operating Current : less than 100mA Operation Temperature : -1 0-50’C Storage Temperature : -30- 70’C Operating Humidity : 10-85% RH Storage Humidity : 10-90% RH Dimensions : 135 x 47x 45mm |
