General Specifications

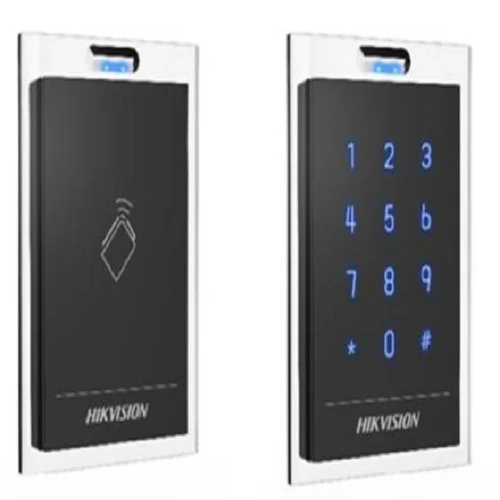

• Product Line: DS-K1100 Series
• Category: Proximity Card Reader
• Application: Access control systems
• Model Variants:
  • DS-K1100M: Supports MIFARE cards
  • DS-K1100E: Supports EM cards

Card Compatibility

• Card Types:
  • MIFARE (13.56 MHz) for DS-K1100M
  • EM (125 kHz) for DS-K1100E
• Read Range: Up to 50 mm

Performance Features

• Read Speed: < 0.1 seconds per card
• Communication Protocols:
  • RS-485
  • Wiegand (configurable for 26-bit or 34-bit)
• Indicator: Multi-color LED for operation status
• Buzzer: Integrated for sound notifications

Physical Specifications

• Design: Compact and sleek for indoor or outdoor installations
• Dimensions: 120 mm × 86 mm × 25 mm
• Weight: Approx. 0.3 kg
• Material: Durable polycarbonate with scratch resistance

Connectivity

• Interface Options:
  • RS-485 for direct communication
  • Wiegand output for compatibility with third-party controllers
• Wiring Distance:
  • RS-485: Up to 1200 meters with shielded twisted pair
  • Wiegand: Up to 100 meters

Environmental Specifications

• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Ingress Protection: IP65 for outdoor use

Power Specifications

• Power Supply: 12V DC
• Power Consumption: ≤ 2W

Special Features

• Tamper Alarm: Alerts triggered by unauthorized disassembly
• LED Indicator: Multi-color LED for card recognition and status updates
• Sound Notification: Audible feedback for successful or failed operations
• Firmware Upgradable: Supports future feature enhancements

General Overview

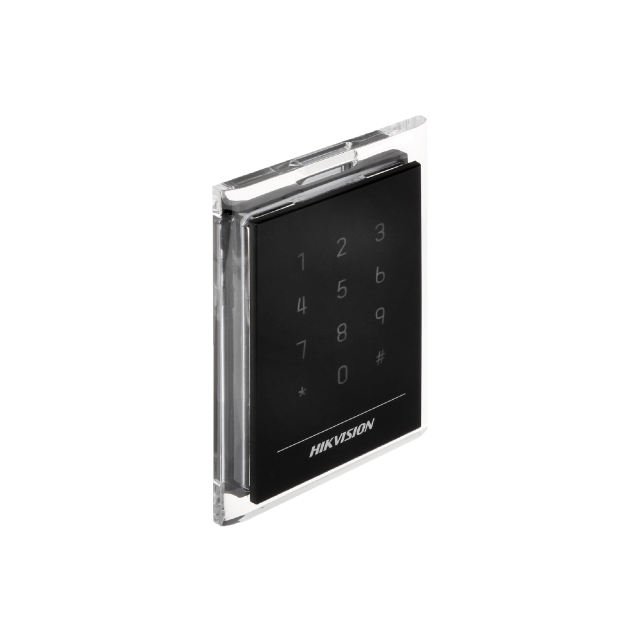

• Product Name: Hikvision DS-K1101MK Keypad Mifare Card Reader
• Type: Combination Mifare card reader and keypad access control device
• Application: Ideal for secure access in residential, commercial, and institutional settings.

Key Features

• Card Compatibility:
  • Supports Mifare contactless smart cards for convenient and secure access.
  • Reading distance: Up to 5 cm (2 inches), depending on the card.
• Keypad:
  • 4x4 numerical keypad for PIN code entry, providing a second layer of security.
  • Up to 50,000 user PIN code capacity.
• Multi-Authentication Modes:
  • Supports multiple authentication methods including Mifare card, PIN code, or card + PIN combination.
• Visual Indicators:
  • Dual-color LED indicators (Red/Green) for access status feedback (granted or denied).
• Audio Feedback:
  • Built-in buzzer for audible confirmation of successful or failed access attempts.

Design & Build

• Material:
  • Sturdy, high-quality ABS plastic housing for durability.
• Weather Resistance:
  • IP65-rated for protection against dust and water, suitable for both indoor and outdoor installation.
• Dimensions:
  • 115 mm x 80 mm x 22 mm (H×W×D), compact and easy to install.

Connectivity

• Interfaces:
  • Wiegand (WG26/WG34) for seamless integration with access control systems.
  • RS485 for secure communication with control panels.
• Power Supply:
  • Powered by 12V DC with low energy consumption.

Security Features

• Encryption:
  • Secure communication with control systems to prevent unauthorized data access.
• Anti-Tamper Protection:
  • Built-in alarm triggered if the device is tampered with or removed.

Environmental Specifications

• Operating Temperature:
  • Supports a wide temperature range from -20°C to 65°C (-4°F to 149°F).
• Operating Humidity:
  • 10% to 90% relative humidity, non-condensing, ideal for a variety of environments.

Applications

• Suitable for a range of access control applications:
  • Office buildings
  • Residential properties
  • Gated communities
  • Educational institutions

General Overview

• Product Name: Hikvision DS-K1107M Mifare Reader
• Type: Mifare card reader for access control
• Application: Ideal for secure access management in commercial, residential, and institutional environments.

Key Features

• Card Compatibility:
  • Supports Mifare contactless smart cards.
  • Reading distance: Up to 5 cm (2 inches), depending on card and environment.
• Visual Indicators:
  • Dual-color LED indicators (Red/Green) for status feedback (e.g., access granted or denied).
• Audio Feedback:
  • Integrated buzzer for audible confirmation of card recognition and action status.

Design & Build

• Material:
  • Durable, high-quality ABS plastic construction.
• Weather Resistance:
  • IP65-rated for dust and water resistance, suitable for outdoor and indoor use.
• Dimensions:
  • Compact design with dimensions of 115 mm × 44 mm × 22 mm (H×W×D).

Connectivity

• Interfaces:
  • Wiegand (WG26/WG34) for easy integration with control panels.
  • RS485 communication protocol for secure data transfer.
• Power Supply:
  • Operates on 12V DC with minimal power consumption.

Security Features

• Encryption:
  • Ensures secure communication with compatible systems to prevent data interception.
• Tamper Protection:
  • Anti-tamper alarm triggers if the device is removed or tampered with.

Environmental Specifications

• Operating Temperature:
  • Functional in a range of -20°C to 65°C (-4°F to 149°F).
• Operating Humidity:
  • 10% to 90% relative humidity, non-condensing.

Certifications

• Compliance:
  • Certified with CE, FCC, and RoHS standards for global compatibility and environmental safety.

General Overview

• Product Name: Hikvision DS-K1107MK Mifare Reader & Keypad
• Type: Mifare Card Reader and Keypad for access control systems.
• Compatibility: Compatible with Hikvision access control systems, including controllers and management software.
• Application: Suitable for office buildings, residential areas, and any secure premises where access control is needed.

Key Features

• Mifare Card Support:
  • Supports Mifare classic cards and key fobs for contactless access.
  • Read range typically up to 5 cm (2 inches) for Mifare cards.
• Keypad Integration:
  • Integrated 12-key keypad for PIN-based authentication, supporting dual-mode access (Mifare + PIN).
  • Allows users to enter a PIN code for entry, enhancing security by combining something you have (Mifare card/fob) and something you know (PIN).
• Built-In LED Indicators:
  • Visual indicators for access status (e.g., Green for granted, Red for denied).
• Audible Feedback:
  • Built-in speaker providing audible feedback for successful or failed access attempts.

Design & Build

• Material: High-quality, durable materials designed for both indoor and outdoor use.
• Weather Resistance:
  • IP65 rated for dust and water resistance, making it suitable for a variety of environments, including harsh conditions.
• Mounting:
  • Wall-mounted design, easy to install in a range of locations, such as entrances, gates, or access points.

User Capacity

• User Management:
  • Works seamlessly with Hikvision controllers, which can handle large numbers of users with unique credentials (cards and/or PINs).
  • Typically supports up to thousands of users, depending on the connected controller.

Power and Connectivity

• Power Supply:
  • Powered by DC 12V (typically via external power supply or from a connected access control system).
• Connectivity:
  • Communication via Wiegand (WG26 or WG34) or RS485 for easy integration into existing access control systems.

Security Features

• Anti-Tamper:
  • Equipped with anti-tamper protection for enhanced security.
• Encryption:
  • Encrypted communication between the reader and the connected access control system to prevent unauthorized access and data interception.

Operating Conditions

• Temperature Range:
  • Operates in temperatures from -20°C to 60°C (-4°F to 140°F).
• Humidity:
  • Functions effectively in environments with humidity levels ranging from 10% to 90% RH (non-condensing).

Applications

• Ideal for commercial and residential buildings, government facilities, and other secure premises where access control is required.
• Suitable for both high-traffic areas and restricted zones that require secure, dual-factor authentication.

General Overview

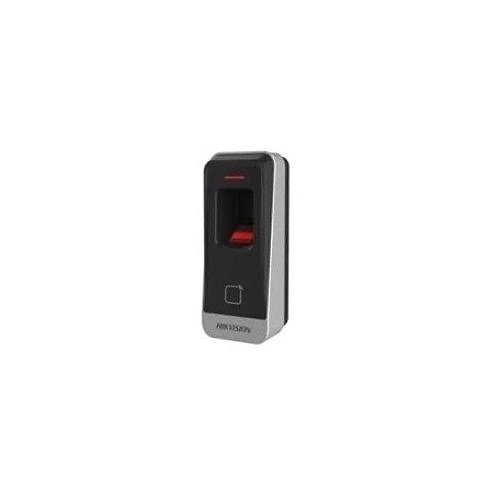

• Product Name: Hikvision DS-K1201MF Card Reader
• Type: Mifare Card Reader
• Application: Ideal for access control systems in residential, commercial, and institutional settings.

Key Features

• Card Compatibility:
  • Supports Mifare Classic and Mifare Plus cards for reliable contactless access.
  • Reading range: Up to 6 cm (2.36 inches), depending on the card used.
• High-Speed Access:
  • Fast card reading with a response time of ≤ 0.5 seconds for quick and efficient access.
• Multiple Authentication:
  • Supports card-only authentication for quick access.
  • Can be integrated with other devices for multi-factor authentication setups.

Design & Build

• Material:
  • High-quality, durable plastic casing.
• Weatherproof Rating:
  • IP65-rated, making it suitable for both indoor and outdoor installations, offering protection against dust and water.
• Dimensions:
  • 115 mm x 60 mm x 22 mm (H×W×D), compact and space-efficient design.

Connectivity

• Interfaces:
  • Wiegand (WG26/WG34) for easy integration with existing access control systems.
  • RS485 for secure, long-distance communication with access control panels.
• Power Supply:
  • Powered by 12V DC, low power consumption for energy-efficient operation.

Security Features

• Encryption:
  • Secure communication between the reader and the connected access control system to ensure data protection.
• Anti-Tamper Protection:
  • Built-in alarm triggers if the device is tampered with or removed from its installation location.

Environmental Specifications

• Operating Temperature:
  • -20°C to 65°C (-4°F to 149°F), ensuring reliable operation across a wide range of environmental conditions.
• Operating Humidity:
  • 10% to 90% relative humidity, non-condensing, ensuring stable performance even in humid environments.

General Information

• Device Type: Fingerprint Time Attendance Terminal
• Processor: High-performance embedded processor

Authentication Features

• Authentication Methods:
  • Fingerprint
  • Password
  • Card (optional, MIFARE supported)
  • Multi-factor authentication (fingerprint + password, etc.)
• Fingerprint Capacity: Up to 3,000 fingerprints
• Card Capacity: Up to 3,000 cards (optional)
• Password Capacity: Up to 3,000 users
• Event Log Capacity: Stores up to 100,000 attendance records

Fingerprint Recognition

• Recognition Time: ≤ 1 second
• Error Rate:
  • False Acceptance Rate (FAR): ≤ 0.001%
  • False Rejection Rate (FRR): ≤ 0.01%
• Sensor Type: Optical fingerprint sensor

Display and Interface

• Screen: 2.8-inch color LCD display
• Keypad: Numeric keypad with function keys for easy operation
• User Interface: Graphical for intuitive navigation

Connectivity

• Network Interface: TCP/IP
• USB Interface: USB 2.0 for data export/import and firmware updates
• Wiegand Interface: Wiegand input/output for access control system integration

Power and Performance

• Power Supply: 5V DC, 1A
• Power Consumption: ≤ 5W

Environmental Specifications

• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 10% to 90% (non-condensing)

• Display:
  • 10-inch color touch screen for intuitive interaction.
  • Resolution: 1280 x 800 pixels for clear and sharp visuals.
• Video Features:
  • Built-in 2MP camera for high-definition video capture.
  • IR Night Vision: Infrared illumination for low-light environments.
• Communication:
  • Two-way audio support with built-in microphone and speaker for communication with visitors.
  • Built-in speaker and microphone for audio streaming during video calls.
• Access Control:
  • Fingerprint recognition: Supports up to 1,000 fingerprint templates for access control.
  • RFID card support: Compatible with Mifare cards for proximity access.
  • Password entry: Optional password access for user authentication.
  • Relay Output: Provides a relay output for controlling door access locks.
• Connectivity:
  • Wi-Fi and Ethernet network options for flexible installation.
  • TCP/IP Protocol for seamless integration with Hikvision access control systems.
  • Mobile App Support: Allows remote monitoring and control via mobile devices.
• Operating System: Custom Hikvision operating system for smooth user experience and seamless operation.
• Power Supply:
  • 12V DC input, supports external power supply.
  • PoE (Power over Ethernet) support for simplified installation and power sourcing over Ethernet.
• Environment and Durability:
  • Operating Temperature: -10°C to +55°C (14°F to 131°F).
  • Operating Humidity: 10% to 90% RH (Relative Humidity).
  • Indoor Use: Designed for use in indoor environments.
