• Camera:
  • Image Sensor: 2 MP CMOS Image Sensor
  • Signal System: PAL/NTSC
  • Effective Pixels: 1920 (H) × 1080 (V)
  • Min. Illumination:
    • Color: 0.01 Lux @ (F1.2, AGC ON)
    • 0 Lux with IR
  • Shutter Time: 1/25 s to 1/50,000 s (PAL), 1/30 s to 1/50,000 s (NTSC)
  • Lens: 2.8 mm, 3.6 mm, or 6 mm fixed lens options
  • Lens Mount: M12
• Day & Night:
  • IR Cut Filter with Auto Switch
  • IR Range: Up to 30 m
• Image:
  • Frame Rate: 1080p@25fps/1080p@30fps
  • Video Output: 1 Analog HD output via Turbo HD (HD-TVI)
  • S/N Ratio: More than 62 dB
  • Image Settings: Brightness, sharpness, DNR, mirror
  • BLC: Yes
  • AGC: Yes
  • DNR: 2D DNR
• Functionality:
  • Night Vision: Up to 30 meters with IR LEDs
• General:
  • Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (non-condensing)
  • Power Supply: 12 VDC ± 15%
  • Power Consumption: Max. 4 W
  • Weather Proof Rating: IP67
  • Dimensions: 95 mm × 76 mm (3.74" × 2.99")
  • Weight: Approx. 350 g (0.77 lb)

General Information

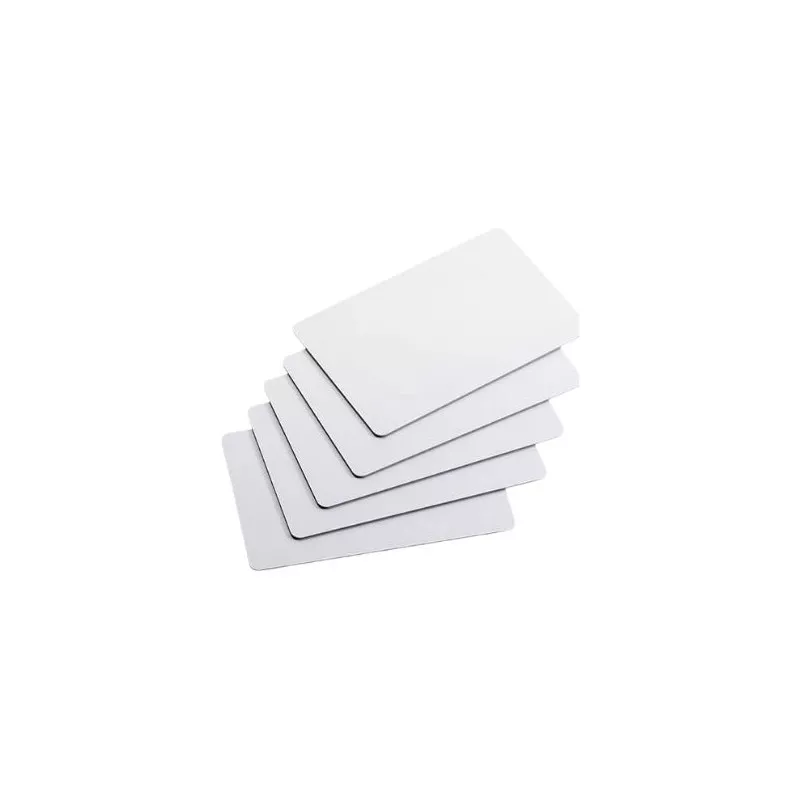

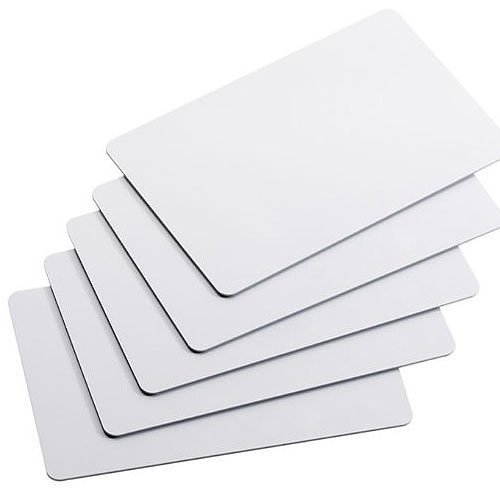

• Model: Hikvision IC S50 MIFARE 1 Contactless IC Card
• Type: Contactless smart card
• Technology: MIFARE Classic 1K
• Standard: ISO/IEC 14443A

Physical Characteristics

• Dimensions: 85.6 mm × 54 mm × 0.8 mm (3.37" × 2.13" × 0.03")
• Material: PVC (Polyvinyl Chloride)
• Color: White (custom branding or printing possible)
• Operating Environment:
  • Operating Temperature: -25°C to 65°C (-13°F to 149°F)
  • Operating Humidity: 5% to 95% (non-condensing)

Data and Memory

• Memory Capacity: 1 KB (1024 bytes)
• Block Structure: 16 blocks (4 bytes per block)
• Data Storage:
  • 4 sectors with 4 blocks per sector
  • 1 block is used for storage of user data per sector
• Read/Write Cycles: Up to 100,000 cycles
• Security:
  • Data encryption for secure communication between the card and reader
  • Sector-wise access control (requires keys for sector access)

Electrical and Communication

• Communication Protocol:
  • ISO/IEC 14443A (High-frequency contactless communication)
  • No physical contact required for communication between the card and the reader
• Frequency: 13.56 MHz
• Operating Distance:
  • Typically 3 cm to 10 cm, depending on the reader
  • Supported by compatible MIFARE readers and access control systems

Power and Lifespan

• Power Supply: Powered by the reader (no battery required)
• Card Lifespan:
  • Typically 5+ years, depending on environmental conditions and usage frequency

Application and Usage

• Applications:
  • Access control systems (door entry, secure areas)
  • Time and attendance systems
  • Cashless payment systems
  • Membership or loyalty programs
  • Identification and credentialing

General Features:

• Model: DS-2DE4120IW-DE
• Product Type: Network IR PTZ IP Camera
• Camera Type: PTZ (Pan-Tilt-Zoom)
• Image Sensor: 1/3" Progressive Scan CMOS

Image and Video:

• Resolution:
  • 1.3 MP (1280 × 960)
• Min. Illumination:
  • Color: 0.05 Lux @(F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/30 s to 1/100,000 s
• Lens:
  • 20× Optical Zoom
  • Focal Length: 4.7 mm to 94 mm
  • Horizontal Field of View: 54.5° to 2.9°
• Digital Zoom: 16×

Pan, Tilt, and Zoom:

• Pan Range: 360° endless
• Pan Speed: 0.1°/s to 300°/s
• Tilt Range: -15° to +90°
• Tilt Speed: 0.1°/s to 180°/s
• Preset Points: Up to 300 presets
• Patrols: 8 patrols with up to 32 presets per patrol

Infrared and Night Vision:

• IR LEDs: 6 × IR LEDs
• IR Range: Up to 100 meters
• IR Cut Filter: Automatic

Video Output and Streaming:

• Video Compression: H.265+/H.265/H.264+/H.264
• Network Interface: 1 × RJ-45 10/100/1000 Mbps Ethernet port
• Streaming: Multiple streams
• Resolution: Configurable up to 1280 × 960

Image Enhancement:

• Wide Dynamic Range (WDR): 120 dB
• Backlight Compensation (BLC): Yes
• White Balance: Auto
• Digital Noise Reduction (DNR): 3D DNR
• Defog: Yes

Audio:

• Audio Input: None
• Audio Output: None

Power Supply:

• Power Supply:
  • DC 12V ± 15%
  • PoE (Power over Ethernet) IEEE 802.3af
• Power Consumption:
  • ≤ 16 W (working)
  • ≤ 25 W (with IR on)

Environmental Specifications:

• Operating Temperature:
  • -40 °C to +60 °C (-40 °F to 140 °F)
• Operating Humidity:
  • 90% or less (non-condensing)
• Weather Resistance: IP66-rated weatherproof housing

Physical Characteristics:

• Dimensions:
  • 280 mm × 265 mm × 390 mm (11.02" × 10.43" × 15.35")
• Weight:
  • Approximately 3.3 kg (7.28 lbs)

Additional Features:

• Network Protocols:
  • TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Mobile and Remote Access: Compatible with Hikvision's iVMS-4200 and Hik-Connect mobile app
• Vandal Proof: Designed to withstand vandalism and tampering
• Smart Functions: Supports intelligent video analytics such as motion detection, line crossing, and intrusion detection
