Hikvision

General Information

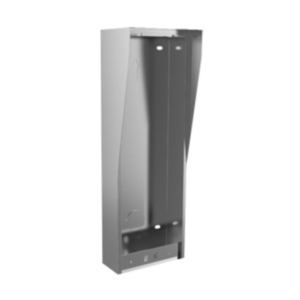

• Model: DS-KAB03-V
• Type: Protective Shield
• Application: Designed to protect Hikvision intercom wall-mounted devices from environmental factors, tampering, and physical damage
• Material: High-quality, durable material for optimal protection
• Compatibility: Suitable for use with Hikvision DS-KV8x02-IM video door stations and other compatible wall-mounted intercom devices
• Mounting: Wall-mountable design for easy installation and enhanced device security

Design & Construction

• Shield Type: Transparent, clear protective shield for enhanced visibility while offering protection
• Structure: Rigid and robust structure to withstand physical impacts, dust, and moisture
• Finish: Smooth finish for easy cleaning and maintenance
• Design Features: Designed to blend seamlessly with the intercom's aesthetics, ensuring a professional and clean installation
• Access Ports: Provides openings for necessary cables and connections, allowing full functionality while protecting the device

Performance Features

• Weatherproof: Helps protect the intercom unit from exposure to weather elements like rain, dust, and snow
• Vandalism Resistance: Provides additional physical protection against vandalism or accidental impact
• UV Resistant: Made from materials resistant to UV rays, ensuring long-term durability and maintaining clarity over time
• Dust and Debris Protection: Prevents dirt, dust, and debris from entering the intercom device, reducing maintenance needs
• Easy Access: Allows easy access to intercom ports and buttons without requiring the shield to be removed

Environmental Specifications

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Operating Humidity: 10% to 90% RH (non-condensing)
• UV Protection: UV-resistant material to prevent yellowing or degradation over time

Physical Specifications

• Dimensions: Custom-fit dimensions to align with Hikvision wall-mounted devices
• Weight: Lightweight for easy handling and installation
• Mounting: Compatible with Hikvision DS-KV8x02-IM intercom models; designed for secure wall-mounting with ease
• Installation: Simple installation process with all necessary hardware included for quick setup

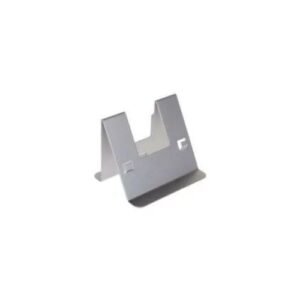

• Model: Hikvision DS-KAB21-H
• Type: Desktop Stand
• Compatibility: Designed specifically for KH63 and KH83 series indoor stations

• Material: Aluminum alloy
• Color: White
• Adjustable Angle: Fixed stand, no tilt or swivel mechanism

• Placement: Desktop-mounted for convenience
• Installation Type: Plug-and-play compatibility with KH63/83 series devices
• Cable Management: Integrated cable routing for a clean setup

• Dimensions: 144 mm × 93.8 mm × 93.8 mm (5.67" × 3.69" × 3.69")
• Weight: Approx. 500 g (1.1 lbs)

• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Humidity: 10% to 90% (non-condensing)

• Purpose: Provides a stable, ergonomic mounting option for the indoor station, making it easy to place on desks or flat surfaces.
• Suitable Environments: Offices, residences, and other indoor locations where KH63/83 series indoor stations are used.

General Information

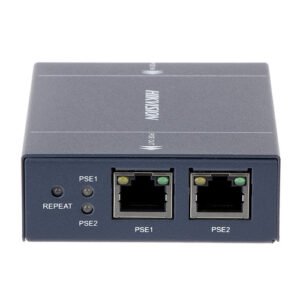

• Model: Hikvision DS-1H34-0101P
• Type: PoE Extender (Power over Ethernet Extender)
• Purpose: Extends the reach of PoE-powered devices beyond the typical 100-meter Ethernet limitation
• Application: Ideal for extending network connections and powering devices like IP cameras, access control systems, or other PoE-enabled devices

Electrical and Power

• Power Supply: Powered by PoE (IEEE 802.3af/at)
• Power Consumption:
  • Max. 4W (without external load)
• PoE Input:
  • IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) compliant
• PoE Output:
  • 1 × PoE output port (up to 30W output power)

Ports and Connectivity

• Input Port:
  • 1 × 10/100/1000 Mbps Ethernet port (RJ-45) for receiving PoE input
• Output Port:
  • 1 × 10/100/1000 Mbps Ethernet port (RJ-45) for providing extended PoE output
• Transmission Distance:
  • Extends PoE power and data transmission up to an additional 100 meters, allowing a total distance of up to 200 meters from the original PoE power source
• Auto-Negotiation: Supports automatic speed and duplex configuration (10/100/1000 Mbps)

Performance and Features

• PoE Extension:
  • Extends PoE to remote devices, providing both power and data for up to 200 meters
  • Ideal for connecting devices in hard-to-reach areas or locations far from the main PoE source
• Data Rate:
  • Supports 10/100/1000 Mbps Ethernet data rates for high-speed communication
• PoE Standards:
  • Complies with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) for power delivery
• Plug-and-Play: Easy installation with no configuration required

Environmental and Durability

• Operating Temperature:
  • -10°C to 50°C (14°F to 122°F)
• Operating Humidity:
  • 10% to 90% (non-condensing)
• Enclosure:
  • Plastic casing designed for indoor use (IP20 rated)

Physical Dimensions and Weight

• Dimensions: 90 mm × 55 mm × 25 mm (3.54" × 2.17" × 0.98")
• Weight: Approx. 0.1 kg (0.22 lbs)

Applications

• Use Cases:
  • Extending the reach of PoE-powered devices like IP cameras, access control systems, and network switches
  • Ideal for large surveillance systems, commercial offices, or installations in remote locations
• Installation Locations:
  • Can be used in buildings, parking lots, warehouses, and outdoor locations when used with proper enclosures

General Information

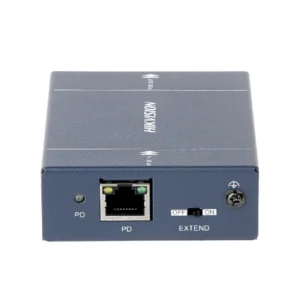

• Model: Hikvision DS-1H34-0102P
• Type: PoE Repeater (Power over Ethernet Repeater)
• Purpose: Extends PoE signal range for Ethernet devices (IP cameras, access control systems, etc.)
• Application: Used in networking environments to extend the reach of PoE devices beyond the standard 100-meter limitation

Electrical and Power

• Power Supply: Powered by PoE (IEEE 802.3af/at)
• Power Consumption:
  • Max. 4W (without external load)
• PoE Power Input: IEEE 802.3af/at compliant (PoE/PoE+)
• PoE Power Output:
  • 1 × PoE output port (up to 30W output power)
  • Compliant with IEEE 802.3af/at standards for delivering power to connected devices

Ports and Connectivity

• Input Port:
  • 1 × 10/100/1000 Mbps Ethernet port (RJ-45) for receiving PoE input
• Output Port:
  • 1 × 10/100/1000 Mbps Ethernet port (RJ-45) for providing extended PoE output
• Transmission Distance:
  • Can extend PoE signal up to an additional 100 meters, enabling devices to be connected up to 200 meters away from the original PoE source
• Auto-Negotiation: Supports automatic speed and duplex configuration (10/100/1000 Mbps)

Performance and Features

• PoE Extension:
  • Supports the extension of both data and power signals over long distances (up to 200 meters total)
  • Ideal for powering devices like IP cameras, VoIP phones, and other PoE-enabled devices over longer distances
• Data Rate:
  • 10/100/1000 Mbps Ethernet data rates supported (Gigabit Ethernet)
• Protocol Support:
  • IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) compliant

Environmental and Durability

• Operating Temperature:
  • -10°C to 50°C (14°F to 122°F)
• Operating Humidity:
  • 10% to 90% (non-condensing)
• Enclosure:
  • Plastic casing designed for indoor use (IP20 rating)

Physical Dimensions and Weight

• Dimensions: 90 mm × 55 mm × 25 mm (3.54" × 2.17" × 0.98")
• Weight: Approx. 0.1 kg (0.22 lbs)

Applications

• Use Cases:
  • Extends the distance for PoE-enabled devices such as IP cameras, access control devices, and network switches
  • Ideal for large-scale surveillance installations or office environments where networked devices are located far from power sources
  • Can be used in outdoor settings with additional enclosures (for use in harsh conditions)
