Hikvision

General Information

• Model: Hikvision DS-3E0326P-E
• Switch Type: Unmanaged PoE Switch

Port Configuration

• PoE Ports: 24 × 10/100 Mbps (Fast Ethernet) PoE ports
• Uplink Ports: 2 × Gigabit RJ45 (10/100/1000 Mbps) uplink ports

PoE Specifications

• PoE Standard: IEEE 802.3af/at
• Total Power Budget: 250W
• Power per Port: Up to 30W per port (ideal for powering IP cameras, VoIP phones, access points, etc.)

Performance

• Switching Capacity: 8.8 Gbps
• Packet Forwarding Rate: 6.55 Mpps
• MAC Address Table: 8K entries

Features

• Plug-and-Play: No configuration required for installation, ensuring ease of use
• Extended Mode: Supports PoE transmission over distances up to 250 meters (10 Mbps)
• Fanless Design: Silent operation, suitable for office or home environments
• LED Indicators: For port status, PoE power, and system health

Power and Protection

• Input Voltage: AC 100–240V, 50/60Hz
• Surge Protection: 6kV protection for all ports
• Overload Protection: Built-in to safeguard devices and the network

Design

• Form Factor: 1U rackmountable
• Dimensions: 440 mm × 220 mm × 44 mm (W × D × H)
• Weight: Approx. 1.7 kg

Environmental Parameters

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)

General Information

• Model: Hikvision DS-3E0105P-E(B)
• Switch Type: Unmanaged PoE Switch

Port Configuration

• PoE Ports: 4 × 10/100 Mbps (Fast Ethernet) PoE ports
• Uplink Ports: 1 × 10/100 Mbps (Fast Ethernet) uplink port

PoE Specifications

• PoE Standard: IEEE 802.3af/at
• Total Power Budget: 65W
• Power per Port: Up to 15.4W per port (IEEE 802.3af)

Performance

• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 0.744 Mpps
• MAC Address Table: 2K entries

Features

• Plug-and-Play: Simple, no configuration needed for installation
• Extended Mode: Supports PoE transmission over distances up to 250 meters (10 Mbps speed)
• LED Indicators: Indicates port status, power, and PoE status
• Backpressure Flow Control: Ensures smooth data transmission without packet loss

Power and Protection

• Input Voltage: AC 100–240V, 50/60Hz
• Surge Protection: 6kV surge protection for all ports
• Overload Protection: Built-in protection to prevent device overload

Design

• Form Factor: Desktop or wall-mountable
• Dimensions: 127 mm × 75 mm × 26 mm (W × D × H)
• Weight: Approx. 0.2 kg

Environmental Parameters

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)

Camera

• Image Sensor: 2 Megapixel Progressive Scan CMOS
• Effective Pixels: 1920 (H) × 1080 (V)
• Signal System: PAL / NTSC
• Minimum Illumination:
  • 0.01 Lux @ (F1.2, AGC ON)
  • 0 Lux with IR
• Shutter Speed:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Lens Type: Motorized Varifocal Lens
• Lens: 2.8 mm to 12 mm motorized lens
• Lens Mount: M12
• Angle of View:
  • 2.8 mm: 103°
  • 12 mm: 32°
• Day & Night: IR cut filter with auto switch
• Synchronization: Internal synchronization
• Video Frame Rate:
  • 1080p @ 25fps (PAL) / 30fps (NTSC)

IR (Infrared)

• IR Range: Up to 40 meters
• IR Cut Filter: Yes
• IR LEDs: High-performance EXIR technology for enhanced night vision

Video Output

• HD Video Output: 1 Analog HD output
• Video Output Format: HDTVI output

Image Settings

• White Balance: Auto
• AGC (Automatic Gain Control): Auto
• BLC (Backlight Compensation): Supported
• DNR (Digital Noise Reduction): 2D DNR
• Smart IR: Automatically adjusts the intensity of the IR LEDs to prevent overexposure in night mode

General Features

• Power Supply: 12 VDC ± 15%
• Power Consumption: Max. 5 W
• Weather Protection: IP66-rated weatherproof housing
• Operating Conditions:
  • Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity: 90% or less (non-condensing)
• Dimensions: 86.22 mm × 82.05 mm × 220.13 mm (3.39" × 3.23" × 8.67")
• Weight: Approx. 700 g (1.54 lbs)

Physical and Environmental

• Material: Durable metal enclosure
• Ingress Protection: IP66-rated for outdoor use
• Mounting Options: Suitable for wall or ceiling installation

Additional Features

• Transmission Distance: Up to 500 meters via coaxial cable with HDTVI video
• Compatibility:
  • Compatible with Hikvision DVRs and third-party systems using the TVI standard
• Varifocal Lens: Allows manual zoom adjustment for different fields of view
• Smart Features:
  • Smart IR for consistent illumination in varying lighting conditions
  • True Day/Night functionality with automatic IR cut filter

• Model: DS-2CE56D0T-VFIR3
• Camera Type: Varifocal Dome Camera
• Image Sensor:
  • 2MP CMOS Image Sensor
  • Effective Pixels: 1920 (H) × 1080 (V)
• Signal System: PAL/NTSC
• Resolution: 1080p (1920 x 1080)
• Minimum Illumination:
  • 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time: 1/25(1/30) s to 1/50,000 s
• Lens:
  • 2.8 mm to 12 mm Varifocal Lens
  • Angle of View: 32° to 103°
• Day & Night: IR Cut Filter with Auto Switch
• Horizontal Resolution: 1080p
• Synchronization: Internal Synchronization
• Video Output: 1 HD Analog Output
• Signal to Noise Ratio (SNR): More than 62 dB
• Functions:
  • DNR (Digital Noise Reduction)
  • Smart IR
• IR Range: Up to 40 meters (131 feet)
• Weatherproof Rating: IP66
• Material: Plastic
• Power Supply: 12 VDC ± 15%
• Power Consumption: Max. 4.5W
• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (non-condensing)
• Dimensions: Φ120 x 97.5 mm (Φ4.72” x 3.84”)
• Weight: 500 g (1.10 lb)
• Installation:
  • Ceiling or wall mount
  • 3-axis adjustment

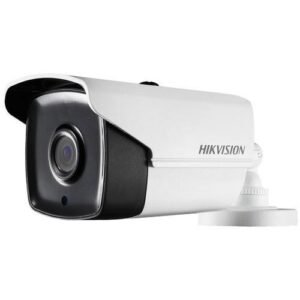

• Camera Type: Bullet Camera
• Image Sensor: 2MP CMOS Sensor
• Resolution: 1920 x 1080 (Full HD 1080p)
• Signal System: PAL/NTSC
• Minimum Illumination:
  • Color: 0.01 Lux @ (F1.2, AGC ON)
  • 0 Lux with IR
• Lens:
  • 3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
  • Horizontal Field of View: 82.2° (for 3.6mm lens)
• Day/Night Function:
  • IR cut filter with auto switch
• IR Range: Up to 20 meters (66 feet)
• IR LEDs: 12 pcs
• Video Output:
  • 1 Analog HD output
• Shutter Time: 1/25(1/30) s to 1/50,000 s
• Signal-to-Noise Ratio (SNR): More than 62 dB
• Video Frame Rate:
  • 1080p@25fps/30fps
• White Balance: Auto
• AGC (Automatic Gain Control): Supported
• DNR (Digital Noise Reduction): 2D DNR
• Backlight Compensation: Supported
• Wide Dynamic Range: Digital WDR
• Power Supply: 12 VDC ± 15%
• Power Consumption: Max. 4W
• Working Temperature: -40°C to 60°C (-40°F to 140°F)
• Weatherproof Rating: IP66
• Housing Material: Plastic
• Dimensions: 86.7 mm × 81.6 mm × 226 mm (3.41" x 3.21" x 8.90")
• Weight: Approx. 350 g (0.77 lbs)
• Installation: Ceiling/Wall mount
• Compatibility: HDTVI, CVBS (Switchable)

• Model: DS-2CE56D0T-IRM
• Camera Type: Indoor IR Turret Camera
• Image Sensor: 2MP CMOS Image Sensor,Effective Pixels:1920(H)×1080(V)
• Signal System: PAL/NTSC
• Resolution: 1080p(1920x1080)
• Minimum Illumination: 0.01Lux@(F1.2,AGC ON),0Lux with IR;0.028Lux@(F2.0,AGC ON),0Lux with IR
• Shutter Time: 1/25(1/30)s to 1/50,000s
• Lens: Fixed 3.6mm lens; Angle of View:82.2°
• Day & Night: IR Cut Filter with Auto Switch
• Synchronization: Internal Synchronization
• Video Output: 1 HD Analog Output
• Signal to Noise Ratio(SNR): More than 62dB
• Functions:
  • DNR(Digital Noise Reduction)
  • Smart IR
• IR Range: Up to 20 meters(66 feet) with 12 IR LEDs
• Weatherproof Rating: IP66
• Material: Metal
• Power Supply: 12VDC±15%
• Power Consumption: Max.4W
• Operating Conditions: -40°C to 60°C(-40°F to 140°F),Humidity 90% or less(non-condensing)
• Dimensions: Φ120mm×97.5mm(Φ4.72"×3.84")
• Weight: 320g(0.71lb)
• Installation:
  • Indoor ceiling or wall mount
  • 3-axis adjustment
