Networking Cables

Detailed Specifications:

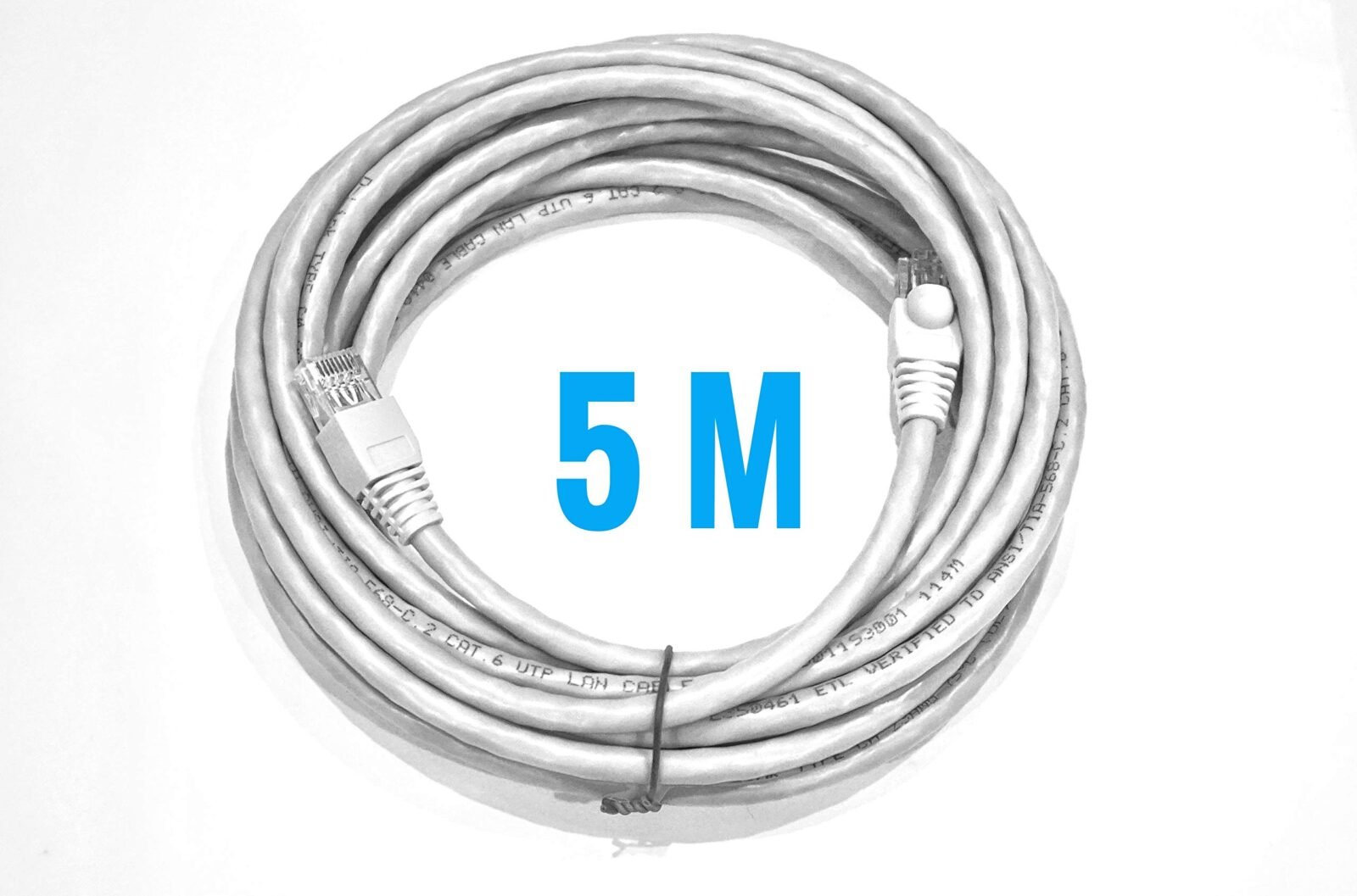

• Cable Type: Cat 6 UTP (Unshielded Twisted Pair) Ethernet patch cord
• Conductor Material: Copper
• Conductor Size: Typically 23 AWG or 24 AWG
• Cable Jacket Material: PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen)
• Connector Type: RJ45 male connectors
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps (Gigabit Ethernet)
• Cable Lengths: Typically available in various lengths, such as 0.5 meters, 1 meter, 2 meters, 5 meters, 10 meters, etc.
• Color Options: Often available in various colors, including black, blue, gray, red, yellow, etc.
• Cable Category: Cat 6
• Shielding: Unshielded (UTP)
• Temperature Range:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +70°C
• Compliance:
  • Meets or exceeds ANSI/TIA-568-C.2 standards
  • RoHS compliant (Restriction of Hazardous Substances)
• Packaging:
  • Typically packaged in individual bags or boxes
  • Bulk packaging options may also be available

General Pricing Information:

• Short Lengths (0.5m - 2m):
  • Prices typically range from $2 to $10 per cable, depending on length and quality.
• Medium Lengths (3m - 5m):
  • Prices generally range from $5 to $15 per cable.
• Long Lengths (10m - 15m):
  • Prices usually range from $10 to $30 per cable.
• Custom Lengths:
  • Prices vary based on specific requirements and can be higher for custom lengths.

• Type: CAT6 UTP (Unshielded Twisted Pair)
• Length: 15 meters
• Data Transfer Speed: Up to 10 Gbps
• Frequency: 250 MHz
• Connector Type: RJ45 male connectors on both ends
• Cable Jacket Material: Durable PVC for protection and flexibility
• Wire Gauge: 24 AWG (American Wire Gauge)
• Compatibility: Backward compatible with CAT5 and CAT5e standards
• Color: Available in various colors (check product details for options)
• Operating Temperature: -20°C to 60°C
• Applications: Suitable for networking, internet connections, and data transfers between devices such as routers, switches, computers, and network printers

• Cable Type: Cat6 UTP (Unshielded Twisted Pair)
• Length: 8 meters
• Bandwidth: 250 MHz
• Data Transmission Speed: Up to 1 Gbps
• Conductor Material: Oxygen-free copper
• Connector Type: RJ45
• Cable Gauge: 26 AWG
• Cable Jacket: PVC
• Compatibility: Ethernet networks (10BASE-T, 100BASE-TX, 1000BASE-T)
• Compliance: Meets TIA/EIA-568-B standard
• Interference: Reduces crosstalk and interference for reliable performance
• Durability: Flexible, resistant to bending and wear
• Color: Blue
• Operating Temperature: -20°C to 75°C
• Application: Suitable for home networking, office setups, server rooms, and data center

• Product Type: Multimode Fiber Optic Cable
• Cable Length: 12 fibers
• Cable Construction:
  • Outdoor-rated design
  • Loose tube construction for flexibility and durability
• Fiber Type: Multimode OM3/OM4
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Maximum Attenuation:
  • OM3: 3.0 dB/km at 850 nm
  • OM4: 2.0 dB/km at 850 nm
• Bandwidth:
  • OM3: 2000 MHz·km at 850 nm
  • OM4: 4700 MHz·km at 850 nm
• Operating Wavelength: 850 nm and 1300 nm
• Jacket Material: UV-resistant polyethylene (PE) for outdoor use
• Color Code: Orange (standard for multimode fibers)
• Water Resistance: Gel-filled to prevent moisture ingress
• Tensile Strength: Designed to withstand high tensile loads
• Temperature Range:
  • Operating: -40°C to +70°C
  • Storage: -40°C to +70°C
• Fire Rating: Complies with relevant fire safety standards
• Connector Types: Available with various connector options (such as SC, LC, etc.)
• Standards Compliance:
  • IEC 60793 and IEC 60794 for fiber cables
  • TIA/EIA-568-C.3 for multimode fiber cabling
• Installation Type: Suitable for direct burial and aerial installations
• Application: Ideal for backbone, data center interconnects, and high-speed LANs
• Weight: Approximately 115 kg/km (varies with jacket type)
• Packaging: Supplied in reels or as specified by the user

• Type: Cat6 UTP (Unshielded Twisted Pair) Patch Cord
• Length: 10 meters (approximately 32.8 feet)
• Connectors: 8P8C RJ45 connectors on both ends
• Bandwidth Support: Up to 250 MHz
• Data Transmission Speed: Supports speeds up to 1 Gbps (Gigabit Ethernet)
• Cable Construction: 4 twisted pairs of copper wires
• Jacket Material: PVC (Polyvinyl Chloride) for durability and flexibility
• Color: White
• Cable Standard: Compliant with TIA/EIA 568-B and ISO/IEC 11801 standards
• Shielding: UTP (Unshielded), ideal for indoor applications
• Usage: Suitable for connecting devices like computers, switches, routers, and patch panels
• Compatibility: Backward compatible with CAT5 and CAT5e standards
• Flexibility: Highly flexible design for easy routing in various setups
• Operating Temperature: -20°C to 75°C (-4°F to 167°F)
• Weight: Lightweight for easy handling and installation

• Type: Cat6 UTP (Unshielded Twisted Pair) Patch Cord
• Length: 0.5 meters (approximately 1.64 feet)
• Connectors: 8P8C RJ45 connectors on both ends
• Bandwidth Support: Up to 250 MHz
• Data Transmission Speed: Supports speeds up to 1 Gbps (Gigabit Ethernet)
• Cable Construction: 4 twisted pairs of copper wires
• Jacket Material: PVC (Polyvinyl Chloride) for durability and flexibility
• Color: Yellow
• Cable Standard: Compliant with TIA/EIA 568-B and ISO/IEC 11801 standards
• Shielding: UTP (Unshielded), suitable for indoor applications
• Usage: Ideal for connecting devices like computers, switches, routers, and patch panels
• Compatibility: Backward compatible with CAT5 and CAT5e standards
• Operating Temperature: -20°C to 75°C (-4°F to 167°F)
• Weight: Lightweight for easy handling and installation

• Type: CAT6A UTP (Unshielded Twisted Pair) Patch Cord
• Length: 2 meters (approximately 6.56 feet)
• Connectors: 8P8C RJ45 connectors on both ends
• Bandwidth Support: Up to 500 MHz
• Data Transmission Speed: Supports speeds up to 10 Gbps (10 Gigabit Ethernet)
• Cable Construction: 4 twisted pairs of copper wires
• Jacket Material: PVC (Polyvinyl Chloride) for durability and flexibility
• Color: Gray
• Cable Standard: Compliant with TIA/EIA 568-C.2 and ISO/IEC 11801 standards
• Shielding: U/FTP (Unshielded Foiled Twisted Pair), providing additional noise protection
• Usage: Suitable for connecting devices like computers, switches, routers, and patch panels
• Compatibility: Backward compatible with CAT5, CAT5e, and CAT6 standards
• Flexibility: Highly flexible design for easy installation and routing
• Operating Temperature: -20°C to 75°C (-4°F to 167°F)
• Weight: Lightweight for easy handling and installation
