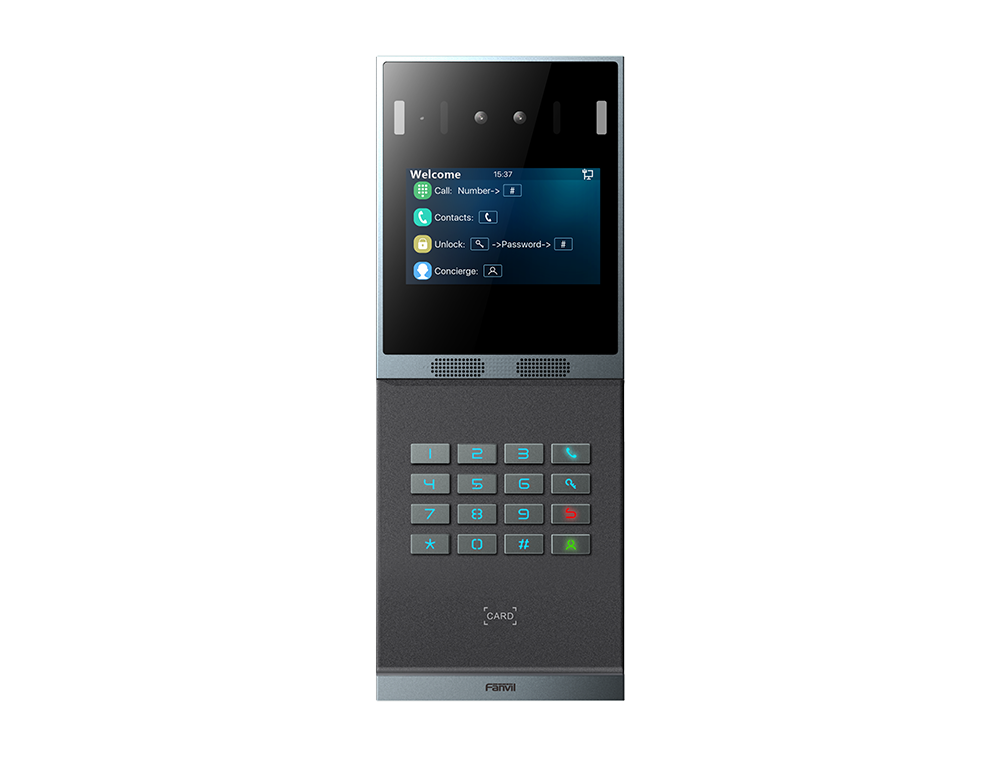

Fanvil i66 Face Recognition Door Phone

Fanvil i66 Face Recognition Door Phone

The fanvil i66 face recognition door phone is a commercial-grade IP door phone with built-in face recognition technology. It is designed for multi-apartment communities, office buildings, and hotels where biometric access control is required in a more compact panel format. The i66 shares the same core access control architecture as the i67 — including dual 2MP cameras, anti-spoofing liveness detection, six door-opening methods, and ONVIF Profile S — but uses a smaller 4-inch IPS screen rather than the i67’s 7-inch panel. The physical panel dimensions are identical at 300 × 115.6 × 33.2 mm, and both models use the same EX103 flush-mount accessory.

The key difference between the fanvil i66 and fanvil i67 is screen size and working temperature range. The i66 operates from -40 °C to +60 °C — a significantly wider cold-side range than the i67’s -20 °C lower limit. This makes the i66 better suited to outdoor deployments in cold climates where temperatures regularly fall below -20 °C.

Download the fanvil i66 datasheet

Suitability Of The Fanvil i66:

• Multi-apartment and gated community access points in cold climates — The i66’s -40 °C lower operating limit extends its usable range well beyond the i67 (-20 °C), making it the better choice for outdoor deployments in Northern Europe, high-altitude sites, or cold-storage facilities where winter temperatures regularly fall below -20 °C.
• Office buildings requiring a compact biometric door phone — The 4-inch screen reduces the visual footprint of the panel compared to the i67’s 7-inch display, which suits entrances where a smaller, more discreet panel is preferred. The six door-opening methods and Wiegand interface remain identical.
• Hotels and hospitality entrances — QR code and PIN code access suits temporary guest credentials. The physical function keys below the screen provide quick access to common operations without relying on the touch interface, which is useful in gloved or wet-hand conditions.
• Security integrators working with existing NVR infrastructure — ONVIF Profile S and Open API connect the i66 to third-party VMS platforms and building management systems. SIP 2.0 over TLS integrates with existing IP PBX and UC infrastructure without additional gateways.
• Deployments where the i67 screen size is unnecessary — Where residents or staff interact briefly at a door panel rather than using it as a kiosk, the 4-inch display is sufficient for face recognition prompts and PIN entry. The i66 delivers the same access control capability as the i67 at a smaller screen size and marginally lower power consumption.

Camera and Video Specifications

Face Recognition

Access Control

Display and Interface

SIP and Communication

Physical Specifications

Power and Environment
