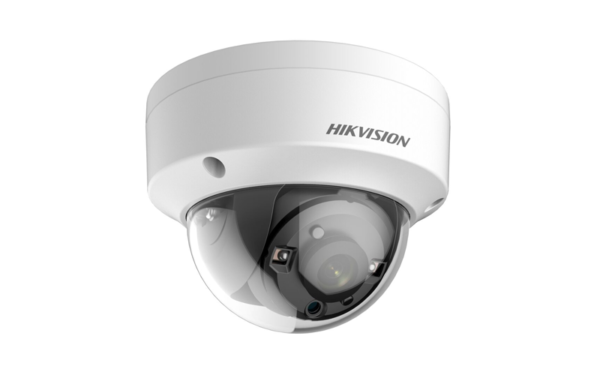

Camera Type: HD-TVI/AHD/CVI/CVBS Turret Dome Camera

Image Sensor: 5 MP Progressive Scan CMOS

Effective Pixels: 2560 (H) × 1944 (V)

Signal System: PAL/NTSC

Resolution: 5 MP

Lens:

• Focal Length: 12 mm
• Lens Type: Fixed
• Aperture: F1.4
• Field of View:
  • 12 mm: 30° (Horizontal)

Minimum Illumination:

• 0.01 Lux @(F1.4, AGC ON), 0 Lux with IR

Day/Night Mode: True Day/Night (ICR)

IR Technology: EXIR 2.0

IR Range: Up to 40 meters (131 feet)

Shutter Time: 1/25 (1/30) s to 1/50,000 s

Video Frame Rate:

• 5 MP@20fps
• 4 MP@25fps/30fps
• 1080p@25fps/30fps

Video Output: 1 Analog HD Output

Signal-to-Noise Ratio (SNR): >62 dB

Image Settings:

• Brightness: Adjustable
• Sharpness: Adjustable
• Saturation: Adjustable
• Contrast: Adjustable

White Balance: Auto

AGC (Automatic Gain Control): Yes

BLC (Backlight Compensation): Yes

HLC (Highlight Compensation): Yes

WDR (Wide Dynamic Range): Digital WDR

2D DNR: Yes

OSD Menu: Yes, with multiple languages

Operating Conditions:

• Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 90% or less (non-condensing)

Power Supply:

• 12 VDC ±15%
• Max. 4.6 W

Protection Level:

• IP67 (Weatherproof)

Material: Metal

Dimensions: Ø 110 mm × 91 mm (Ø 4.33″ × 3.58″)

Weight: Approx. 350 g (0.77 lb)

Mounting Options: Wall or ceiling mount

Compatibility:

• Supports multiple video formats: HD-TVI, AHD, CVI, CVBS
