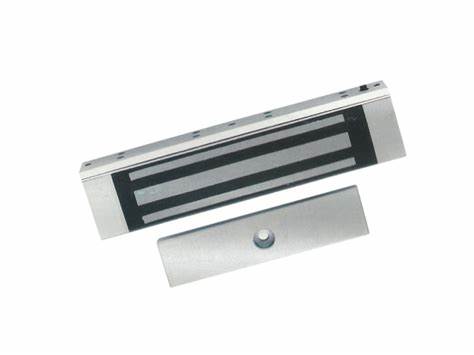

Hikvision DS-K4H258S Single Door Magnetic Lock
Original price was: KSh 4,000.KSh 3,500Current price is: KSh 3,500. ( Ex VAT )
General Features:
- Model: DS-K4H258S
- Type: Single door magnetic lock
- Application: Suitable for indoor access control systems
Lock Specifications:
- Holding Force: Up to 280 kg (617 lbs)
- Lock Type: Electromagnetic lock
- Working Mode: Fail-safe (unlocks when power is cut)
Materials and Build:
- Housing Material: High-strength aluminum alloy with anodized finish
- Armature Plate Material: Zinc-plated steel
Dimensions:
- Magnet Dimensions: 250 mm × 48 mm × 26 mm
- Armature Plate Dimensions: 180 mm × 38 mm × 11 mm
Power and Electrical:
- Operating Voltage: 12 VDC / 24 VDC (adjustable)
- Current Draw:
- At 12 VDC: 420 mA
- At 24 VDC: 210 mA
- Power Consumption: Low-energy design
Installation:
- Mounting Options: Surface-mounted (with optional brackets for various door types)
- Supported Door Types: Wooden, glass, metal, and fireproof doors
- Installation Accessories: Includes mounting hardware for straightforward setup
Environmental:
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Operating Humidity: 0% to 90% (non-condensing)
Hikvision DS-K4H258S Single Door Magnetic Lock
The Hikvision DS-K4H258S Single Door Magnetic Lock is a high-performance access control solution designed to provide secure and reliable locking for a variety of indoor environments. With a holding force of up to 280 kg (617 lbs), this electromagnetic lock ensures strong and consistent door security, making it suitable for wooden, glass, metal, and fireproof doors.
Built with durability in mind, the lock features a high-strength aluminum alloy housing with an anodized finish and a zinc-plated steel armature plate, offering excellent resistance to wear and environmental factors. The lock operates on a fail-safe mechanism, ensuring that it unlocks automatically during power outages for safety compliance.
Its adjustable operating voltage (12 VDC or 24 VDC) and low-energy design make it efficient and flexible for various power setups. The device includes mounting hardware for easy installation and supports additional brackets to accommodate different door types.
Capable of operating in a wide range of temperatures (-10°C to 55°C) and humidity levels, the DS-K4H258S is suitable for diverse indoor settings. CE and FCC-certified, this magnetic lock meets rigorous safety and performance standards, providing peace of mind for both residential and commercial users.
