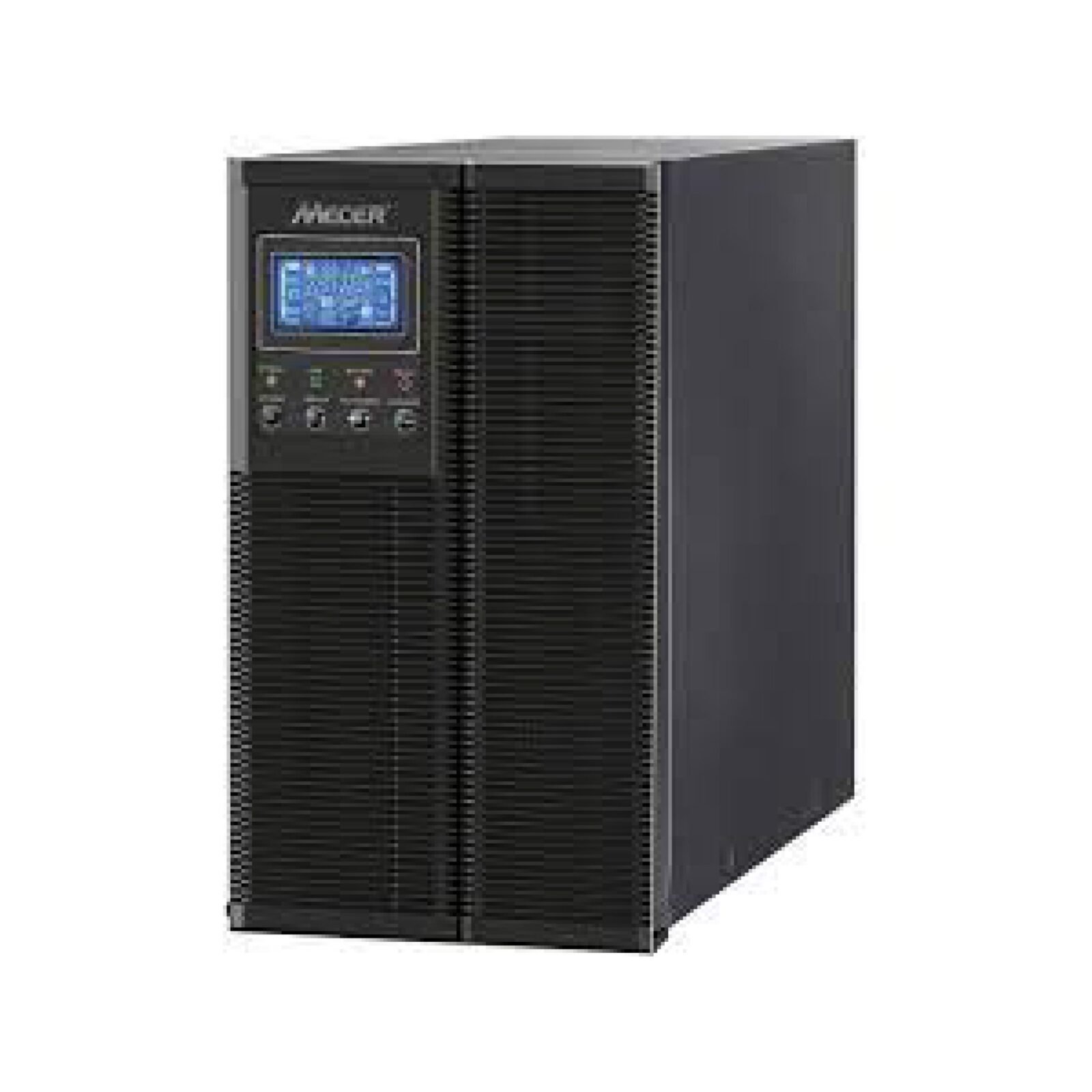

Mecer 10KVA Online Smart-UPS

Mecer 10KVA Online UPS is a market changer when it comes to how we do things in our offices, Mecer 10KVA UPS keeps you working irrespective there is power or not When there is power interruption 10KVA mecer UPS can support office equipment for hours depending on equipment load.

Mecer UPS acts as a surge protector to companies’ most valued assets which are connected to a power grid, 10KVA mecer UPS acts as a stepdown when there is more circuit from the power grid.

10KVA mecer UPS helps you face the competition head-on. Competition is becoming so fierce in today’s economy that why power disruption may cost business so much, power surges may destroy machinery and other equipment when power keeps going on and off . Mtech Networks want you to stay on top of business with Meccer UPS.

this 10KVA UPS can help run the equipment for several hours when power goes off and also there is no abrupt power disruption to equipment.

Mecer 10KVA Online Smart-UPS specifications

Specifications and features
Product Code	ME-10000-WPTU
CAPACITY	10000 VA / 8000 W
PHASE	Single phase with ground
INPUT
Input Voltage Range	110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%)
Nominal Voltage	208/220/230/240 VAC
Frequency Range	46~54 Hz or 56~64 Hz
Power Factor	>= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation	± 1%
Output Voltage	208/220/230/240 VAC
Frequency Range (Batt. Mode)	50 Hz or 60 Hz ± 0.1 Hz
Transfer Time : AC Mode to Battery Mode	Zero
Transfer Time : Inverter to Bypass	Zero
Transfer Time : Waveform (Batt. Mode)	Pure Sine Wave
Current Crest Ratio	3::1
Harmonic Distortion	<= 3% THD (Linear Load); <= 5% THD (Non-linear Load)
Frequency Range (Synchronized Range)	46~54 Hz or 56~64 Hz
EFFICIENCY
Battery Mode	0.91
AC Mode	0.93
BATTERY
Long-run Model : Battery Type	Depending on the capacity of external batteries
Long-run Model : Charging Current (max.)	1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
Long-run Model : Charging Voltage	273 VDC ± 1% (Based on 20pcs bateries)
Long-run Model : Numbers	16~20 (Adjustable)
Standard Model : Battery Type	12 V / 9 Ah
Standard Model : Charging Current (max.)	1A/2A
Standard Model : Charging Voltage	218.4 VDC ± 1%, 273 VDC ± 1%
Standard Model : Numbers	16, 20
Standard Model : Typical Recharge Time	9 hours recover to 90% capacity
INDICATORS
LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
ENVIRONMENT
Operating Humidity	0~95% RH @ 0- 40°C (non-condensing)
Noise Level	Less than 58dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm)	442 x 190 x 688
Standard Model : Net Weight (kgs)	66, 76
Long-run Model : Dimension, D x W x H (mm)	442 x 190 x 318
Long-run Model : Net Weight (kgs)	16
MANAGEMENT
Optional SNMP	Power management from SNMP manager and web browser
Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC

• Serial and USB standard with parallel kit 20 x12V 9Ah batteries
• True double-conversion online UPS
• Wide input voltage range (110-300 VAC)
• Input power factor correction 0.99
• Output Power Factor 0.8
• 50Hz/60Hz frequency converter mode
• Programmable power management outlets
• Emergency power off function (EPO)
• ECO mode operation for energy saving (ECO)
• Charger capacity expansion to 8A for long-run models
• SNMP USB RS-232 multiple communications
• Smart battery charger design for optimized battery performance
• Selectable output voltage via LCD panel
• Hot-swappable battery design (only available for ME-1000-GRU/ME-2000-GRU/ME-3000-GRU)
