Networking

• Connector Type: LC/UPC (Lucent Connector/Ultra Physical Contact) for low insertion loss
• Cable Length: 1 meter (approximately 3.28 feet)
• Fiber Type: Single Mode fiber for long-distance signal transmission
• Fiber Core Diameter: 9/125µm (core/cladding diameter)
• Insertion Loss: Typically ≤ 0.3 dB for efficient signal transmission
• Return Loss: ≥ 50 dB to minimize signal reflections
• Jacket Material: PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) for safety and flexibility
• Operating Temperature: Suitable for use in a wide temperature range, typically from -40°C to +70°C
• Connector Polishing: UPC polishing for enhanced performance and reduced loss
• Compatibility: Compatible with standard LC ports and patch panels
• Color Code: Standard yellow jacket for single mode fiber identification
• Application: Ideal for data centers, telecommunications networks, and fiber optic patching
• Compliance: Meets or exceeds industry standards such as Telcordia GR-326
• Testing: Factory tested for quality assurance and performance reliability

General Specifications

• Product Type: Fiber Optical Attenuator
• Connector Type: LC/UPC (Lucent Connector / Ultra Physical Contact)
  • Male Connector: LC/UPC Male
  • Female Connector: LC/UPC Female
• Attenuation Level: 20 dB
• Operating Wavelength: 1260 nm - 1620 nm (suitable for both 1310 nm and 1550 nm windows)
• Fiber Type Compatibility: Singlemode fiber

Optical Performance

• Attenuation Tolerance: ± 0.5 dB (accuracy of attenuation level)
• Return Loss:
  • Typical: ≥ 50 dB (reduces back reflections)
• Polarization Dependent Loss (PDL): ≤ 0.1 dB (ensures consistent performance regardless of polarization)
• Operating Temperature: -40°C to +75°C (suitable for a wide range of environments)
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% (non-condensing)

Mechanical Specifications

• Housing Material:
  • Ferrule: Zirconia ceramic for high precision and durability
  • Body: Metal or high-strength polymer housing
• Connector Durability: 500 mating cycles (ensures longevity with repeated use)
• Dimensions:
  • Length: Typically 25 mm - 35 mm
  • Diameter: Approximately 5 mm - 10 mm
• Weight: Approximately 5-10 grams

Environmental Specifications

• Shock Resistance: Complies with industry shock and vibration standards
• Vibration Resistance: Designed to withstand mechanical vibrations
• Thermal Stability: Maintains attenuation level across temperature changes

Installation and Usage Features

• Mounting Type: Plug-in (easy installation and removal)
• Usage: Suitable for applications where signal strength reduction is required
• Compatibility: Compatible with standard LC/UPC fiber optic connectors

Compliance and Standards

• Industry Standards:
  • Telcordia GR-910 compliant for reliability and performance
  • RoHS compliant for environmental and safety regulations
• Quality Assurance: 100% tested for insertion loss, return loss, and attenuation accuracy

Application Areas

• Telecommunications: Used in telecom networks to adjust optical power levels
• Data Centers: Helps balance optical signal strength in data center applications
• FTTH: Utilized in Fiber to the Home networks for signal regulation
• CATV: Suitable for cable television systems to control signal power
• Testing and Measurement: Used in laboratory settings for testing and calibration

Additional Features

• Design: Compact and lightweight for easy handling and integration
• Labeling: Clearly labeled with attenuation value for easy identification
• Reliability: High reliability and stability for long-term applications

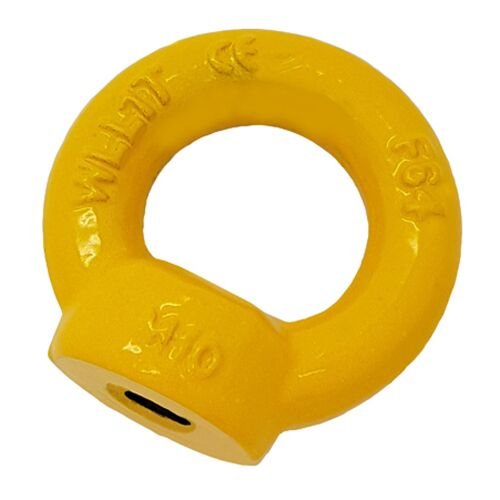

• Size: M16 (Metric thread diameter: 16mm)
• Material: High tensile steel (Grade 80) for superior strength and durability
• Finish: Hot-dip galvanized or powder-coated for enhanced corrosion resistance
• Load Capacity: Designed for a minimum working load limit (WLL) typically around 2,500 kg (5,500 lbs)
• Eye Diameter: Adequate eye diameter for easy attachment of lifting equipment (typically around 30mm)
• Thread Type: Metric coarse thread for compatibility with standard M16 fittings
• Design: Forged construction for added strength and reliability
• Safety Factor: Minimum safety factor of 4:1 based on WLL
• Applications: Suitable for lifting, rigging, and hoisting operations in various industries, including construction, shipping, and manufacturing
• Temperature Resistance: Capable of operating in a wide range of temperatures, typically from -40°C to +200°C
• Compliance: Meets international lifting standards (such as EN 1677-4) for safety and performance
• Weight: Lightweight design for ease of handling while maintaining high strength
• Usage: Ideal for overhead lifting and securing heavy loads in industrial applications
