General Specifications

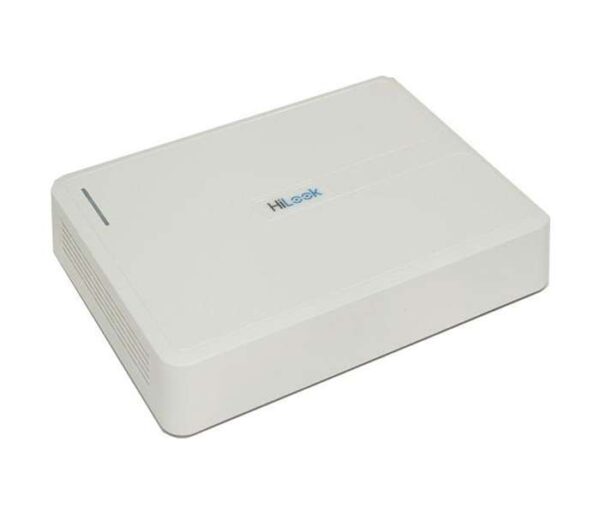

• Model: HiLook NVR-104H-D/4P
• Type: Network Video Recorder (NVR)
• Channels: 4 channels
• Video Input: IP camera input
• Incoming Bandwidth: 40 Mbps
• Recording Resolution:
  • Up to 4K resolution recording (8 MP per channel)

Storage

• HDD Bays: 1 HDD bay
• Max Storage Capacity: Up to 6 TB (with a single HDD)
• Storage Type: SATA interface

Video and Audio

• Video Compression:
  • H.265+
  • H.265
  • H.264+
  • H.264
• Audio Compression: G.711u, G.711a
• Audio Input/Output: 1 × Audio input, 1 × Audio output

Network

• Ethernet Ports: 1 × RJ45 10M/100M/1000M
• Network Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IPv6, UDP, QoS
• Remote Access: Web browser, Mobile App, Client software

Display and Interface

• Video Output:
  • HDMI: 1 × HDMI output, up to 4K resolution
  • VGA: 1 × VGA output, up to 1920 × 1080 resolution
• USB Ports: 1 × USB 2.0, 1 × USB 3.0
• RS-485 Interface: None

Recording and Playback

• Playback Channels: Up to 4 channels simultaneously
• Recording Mode: Continuous, scheduled, motion detection, and event-based
• Playback Features:
  • Search by time, event, and smart search

Smart Features

• Smart Analytics:
  • Motion detection
  • Video tampering detection
• Event Notification: Alarm output, e-mail, FTP

System

• Operating System: Embedded Linux
• User Interface: GUI for easy setup and management
• Firmware Upgrade: Via USB, network

Physical & Environmental

• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Dimensions: 260 × 210 × 45 mm (10.24" × 8.27" × 1.77")
• Weight: Approx. 1.0 kg (2.2 lbs)

Power

• Power Supply:
  • Input: 100-240V AC, 50/60 Hz
  • Output: 12V DC
• Power Consumption: Max. 10 W (without HDD)

Additional Features

• POE Ports: 4 × 10/100 Mbps PoE ports
• Control Interface: Front panel buttons, remote control, and web client
• Cooling: Built-in cooling fan
