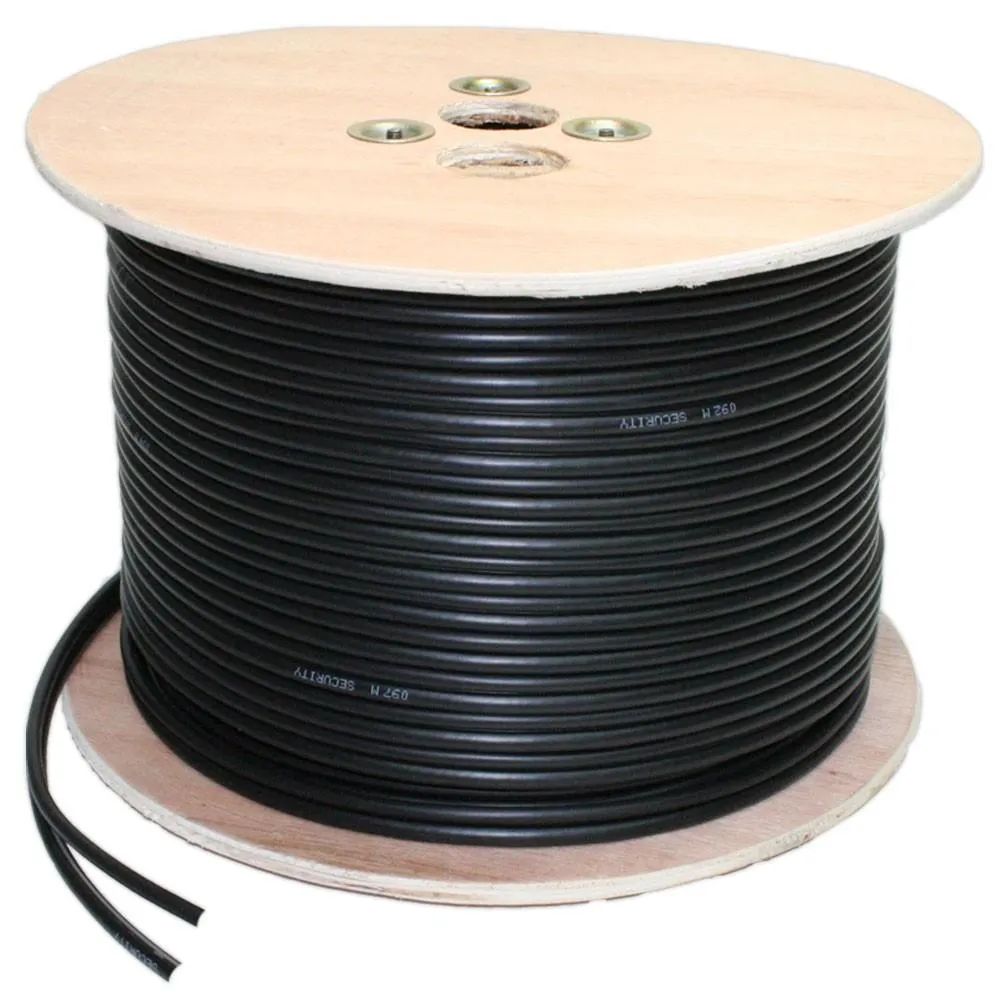

Hikvision RG59 Coaxial CCTV Cable with Power Cable, DS-1LC1SCA2C-200B
| (Driver) Material: | Â | OFC (Oxygen Free Copper) |
| (Driver) Wire Gauge: | Â | 20AWG |
| (Conductor) Diameter: |  | 0.81 ± 0.01mm |
| (Insulation) Material: | Â | FPE |
| (Insulation) Diameter: |  | 3.66 ± 0.05mm |
| (Tape) Material: | Â | Shielding Aluminum Foil, 15mmwidth |
| (Tape) Thickness: | Â | 0.04mm |
| (Braid) Material: | Â | CCA (Copper-clad Aluminum) |
| (Braid) Braiding Standard: | Â | 8 * 16 * 0.12mm |
| (Braid) Braiding Density: |  | 95 ± 1% |
| (Jacket) Material: | Â | PVC |
| (Jacket) Average Thickness: |  | ≥0.65mm |
| (Jacket) Diameter: |  | 6.10 ± 0.2mm |
| Impedance: | Â | 75ohms |
