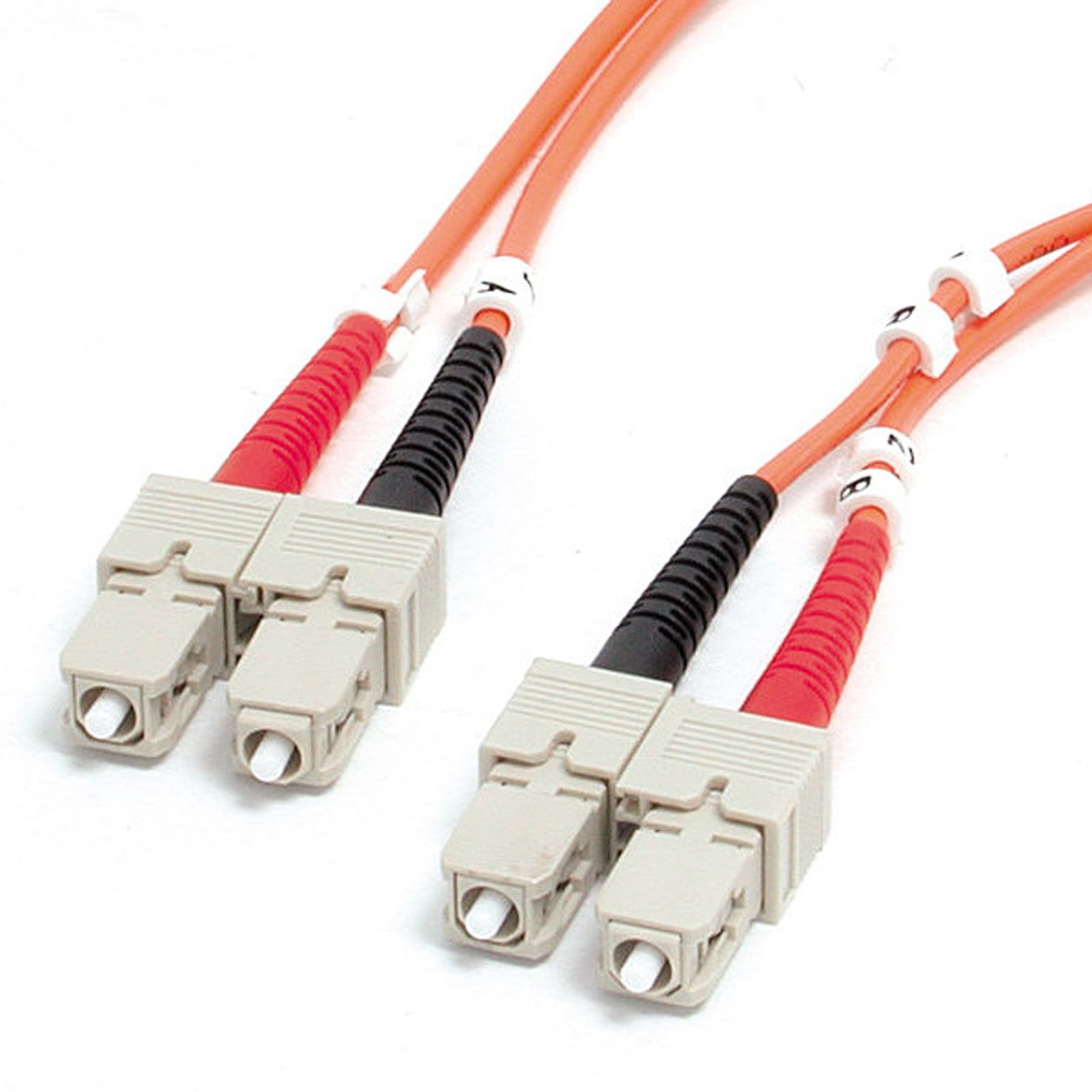

SC-SC 1M Multimode Fiber Patch Cord

The SC-SC 1M Multimode Fiber Patch Cord is a high-performance optical fiber cable specifically engineered for efficient data transmission in networking applications. With a compact length of 1 meter, this patch cord features SC (Subscriber Connector) connectors on both ends, ensuring seamless connectivity with a variety of networking devices, including switches, routers, and patch panels.

Constructed from multimode fiber, this cable supports core diameters of either 50/125 µm or 62.5/125 µm, making it suitable for high-speed data transfer at wavelengths of 850 nm and 1300 nm. It delivers low insertion loss of ≤ 0.3 dB and high return loss of ≥ 35 dB, which helps maintain signal integrity and minimizes data transmission errors. The UPC (Ultra Physical Contact) polishing of the connectors enhances performance by ensuring a smooth, reliable connection.

The PVC or LSZH (Low Smoke Zero Halogen) jacket provides excellent durability and flexibility, making the cable suitable for various indoor environments. The LSZH option is especially beneficial for installations where fire safety is a concern, as it reduces smoke and toxic emissions in case of a fire. Additionally, with a minimum bend radius of 7.5 mm and an operating temperature range of -20°C to +70°C, this patch cord is designed to endure challenging conditions while maintaining its reliability.

Compliant with industry standards such as TIA/EIA-568-C.3 and ISO/IEC 11801, the SC-SC 1M Multimode Fiber Patch Cord is ideal for data centers, telecommunications, and local area networks (LANs). Its robust construction and high-performance specifications make it an essential component for enhancing network infrastructure and ensuring efficient data transmission.
